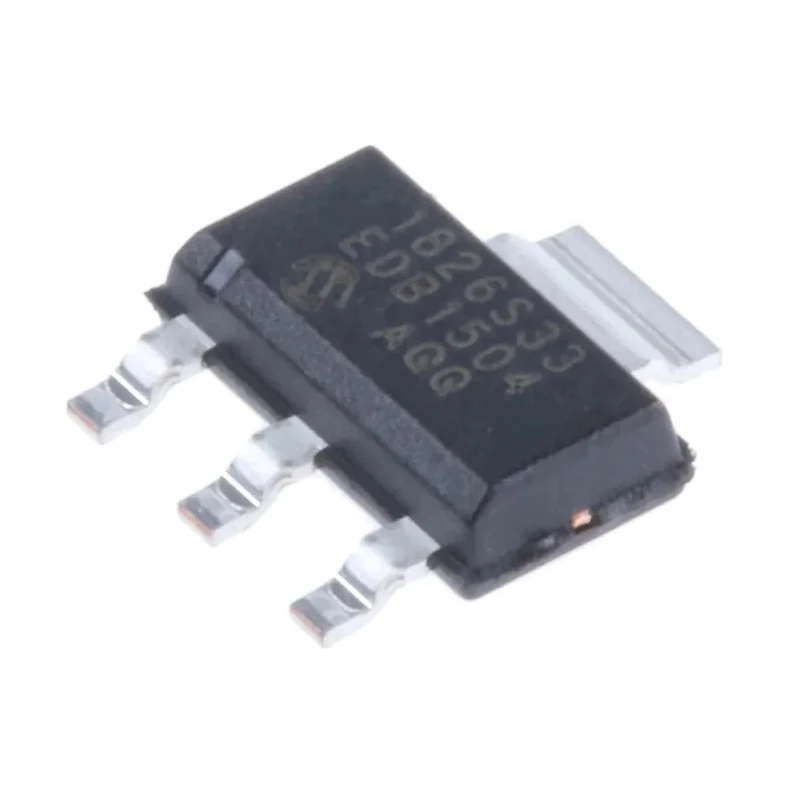

Microchip 5-Channel Low Dropout Voltage Regulator, 1 A, 3.3V, SOT-223 3-Pin MCP1826S-3302E/DB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | MCP1826S-3302E/DB |
| Width | 3.5mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1826S |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 6V |
| Output Voltage | 3.3V |
| Quiescent Current | 120μA |
| Line Regulation | 0.05 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.3V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
Key Features
- Features a low dropout voltage for efficient regulation.
- Designed with a 3-pin SOT-223 surface mount package.
- Supports a wide ambient operating temperature from -40°C to 125°C.
- Complies with RoHS standards and automotive AEC-Q101 requirements.
- Offers 5 outputs with positive polarity and fixed output type.
- Quiescent current is low at 120μA, enabling power savings.
- Line regulation is 0.05 % per volt, ensuring stable voltage under line changes.
- Load regulation is 0.5 %, maintaining output voltage stability with load variations.
Product Description
Microchip MCP1826S-3302E/DB is a 5-Channel Low Dropout Voltage Regulator designed for precision power management applications. It delivers a fixed 3.3V output voltage at 1 ampere output current, ideal for maintaining stable voltage supply in sensitive electronic systems.
This regulator is enclosed in a surface-mount SOT-223 3-pin package, allowing for compact PCB space usage. The device is designed to operate reliably over a wide temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments.
The MCP1826S/DB series complies with RoHS directives and meets the automotive standard AEC-Q101, ensuring safe and compliant use in automotive power systems. It offers positive polarity operation with low quiescent current of just 120 microamperes, enhancing power efficiency in battery-operated devices.
The regulator exhibits excellent line regulation of 0.05 % per volt and load regulation of 0.5 %, ensuring output voltage stability despite fluctuations in input voltage or load conditions. Its maximum input voltage rating is 6 volts, with a minimum input voltage of 2.3 volts, providing flexibility in power supply design.
The compact size of 6.5 mm length, 3.5 mm width, and 1.6 mm height supports integration into space-constrained assemblies. Suitable for use in industrial, automotive, and consumer electronic circuits, this product enables efficient voltage regulation with minimal external components.
Features low dropout voltage for efficient performance. Compact SOT-223 3-pin surface mount package design. Wide temperature operating range from -40 to 125 degrees Celsius. Meets automotive standard AEC-Q101 for reliable automotive applications.
Low quiescent current of 120 microamperes conserves power. Stable output with 0.05% line regulation and 0.5% load regulation. Fixed 3.3V output voltage at 1 amp output current capacity. RoHS compliant ensuring environmental safety standards.
Positive polarity fixed output type for consistent operation. Compact dimensions support space-saving PCB layouts.
This Microchip MCP1826S-3302E/DB Voltage Regulator is ideal for applications requiring stable, low-noise power delivery including industrial equipment, automotive electronics, and consumer devices. EnvMart offers this advanced power management IC with complete technical support and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 3.3V.
It can deliver an output current of up to 1 ampere.
The dimensions are 6.5 mm in length, 3.5 mm in width, and 1.6 mm in height.
It operates within a wide temperature range from -40°C to 125°C.
The line regulation is 0.05 % per volt, ensuring stable voltage under line changes.
This voltage regulator features 5 outputs with positive polarity.
The quiescent current is low at 120 microamperes, which helps conserve power.
It comes in a surface-mount SOT-223 3-pin package.
The maximum input voltage rating is 6 volts, while the minimum is 2.3 volts.
Yes, it complies with RoHS standards and meets the automotive AEC-Q101 requirements.
It is classified as a low dropout voltage regulator.
It is suitable for use in industrial, automotive, and consumer electronic circuits requiring stable power delivery.
