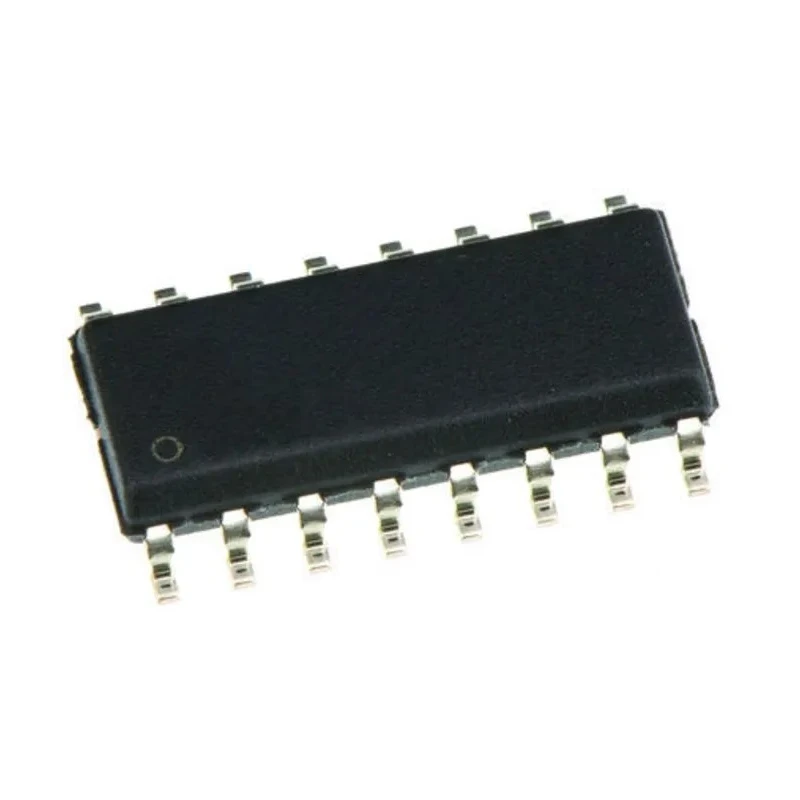

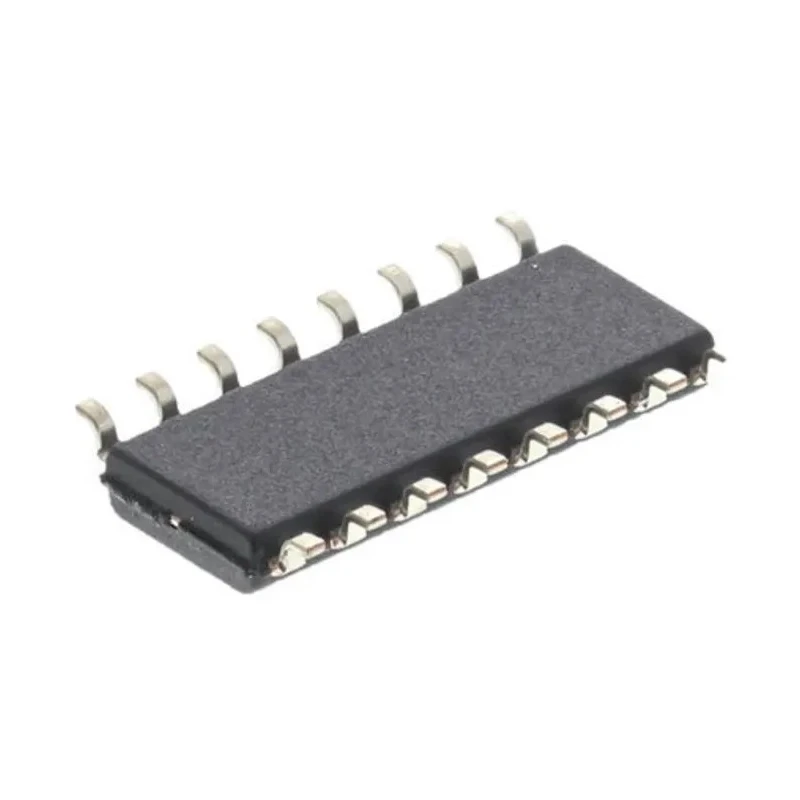

Nexperia Dual 4-Channel Analogue Multiplexer/Demultiplexer 16-Pin SO CMOS DPDT, Operating Voltage 3-15V HEF4052BT,653

Nexperia HEF4052BT,653 Dual 4-Channel Analogue Multiplexer/Demultiplexer is a CMOS-based semiconductor device that features dual 4-channel analogue multiplexing and demultiplexing capabilities with DPDT configuration. It operates efficiently within a supply voltage range of 3 to 15 volts, enabling versatile integration across various electronic circuits.

The device incorporates two elements per chip, supporting symmetrical output and a maximum on-state resistance of 2500 ohms which ensures minimal signal distortion and power loss. This multiplexer/demultiplexer comprises 16 pins housed in a compact surface mount SO package measuring 10mm in length, 4mm in width, and 1.45mm in height, making it suitable for dense PCB layouts.

Engineered to perform reliably in demanding environments, the HEF4052BT,653 supports an operating temperature range from -40°C up to 125°C, ensuring stability in industrial and automotive applications although it is not certified to automotive standards. The product adheres to JEDEC JESD 13-B standards, underpinning its quality and reliability.

This component is widely used in electronic equipment requiring controlled signal routing such as industrial automation, instrumentation, telecommunications, and consumer electronics. Its DPDT switching configuration enhances the selection between multiple analogue signal paths with precision and efficiency.

Operates on supply voltages from 3V to 15V. Dual 4-channel analogue multiplexing/demultiplexing functionality. 16-pin surface mount SO package for compact circuit design. Maximum on-state resistance of 2500 ohms ensuring efficient signal conduction.

Temperature range from -40°C to 125°C for harsh environment operation. Conforms to JEDEC JESD 13-B quality standards. Dimensions: Length 10mm, Width 4mm, Height 1.45mm. Ideal for electronic device signal routing and switching applications.

Not compliant with automotive standards.

This Nexperia CMOS multiplexer/demultiplexer is crucial for development projects in electronics and industrial control where precise analogue signal management is required. Its robust electrical characteristics and compact form factor make it a preferred choice in design and manufacturing. Explore a wide selection of semiconductor components and enhance your circuits with this reliable device through EnvMart’s comprehensive catalog.

Explore more products in our Multiplexer/Demultiplexer ICs category.
