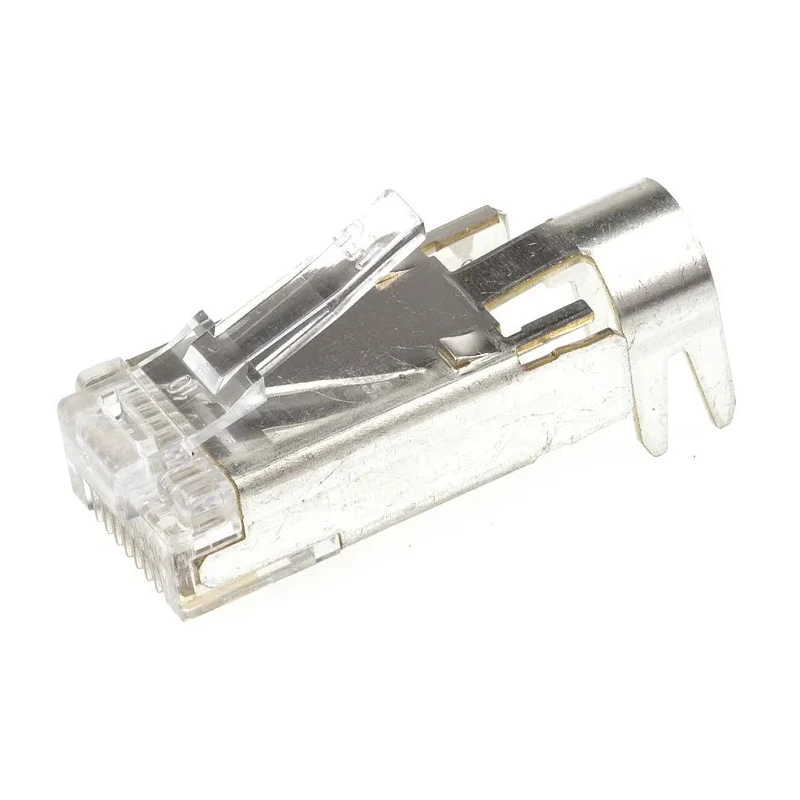

Hirose TM21P Series RJ45 Connector Male Cable Cat5e STP Shield Straight 1 Port 8 Way TM21P-88P(03)

Hirose TM21P-88P(03) RJ45 Connector Male cable is engineered to meet Cat5e Shielded Twisted Pair (STP) standards for high-speed network applications. Supporting Gigabit Ethernet (1000BASE-T) and Fast Ethernet (100BASE-TX), this connector ensures reliable and efficient LAN transmission conforming to TIA/EIA-568B wiring guidelines.

The connector features a robust 360° metal shield surrounding the engagement area, providing effective EMI protection. The snap-together single-piece cover safeguards the latch tab, minimizing risk of accidental damage and enhancing durability. The piercing termination type allows termination on both solid and stranded cables with a guide plate to assist assembly, ensuring secure electrical connections.

Constructed from copper alloy contacts plated with gold, the TM21P series connector offers excellent conductivity and corrosion resistance, critical for industrial, telecommunications, and networking environments. Rated to operate from -25°C to 60°C, it withstands varied environmental conditions encountered in commercial and industrial telecom installations.

Its compact form factor with dimensions 30.2mm width, 12.9mm depth, and 11.7mm length allows ease of integration into cable assemblies. The single-port 8-way modular jack design supports standard RJ45 interfaces used in Ethernet networks. Although no hazardous area certifications or compliance approvals are listed, the connector is suitable for standard electronics and communication applications.

This Hirose TM21P series RJ45 connector is ideal for manufacturing, industrial networking, commercial data centers, and other high-performance LAN systems needing enhanced EMI shielding and reliable cable termination. Set your network up with high-quality connectors engineered for efficiency, durability, and performance.

Designed for Gigabit Ethernet and Fast Ethernet LAN transmission. Full 360-degree metal shielding provides electromagnetic interference (EMI) protection. Snap-on single-piece cover protects the latch tab from breakage. Compatible with solid or stranded cable termination using a piercing method.

Includes a guide plate to assist in assembly for reliable connections. Operates within a temperature range of -25°C to 60°C. Constructed with copper alloy contacts plated in gold for enhanced conductivity and durability.

Compact dimensions: 30.2mm width, 12.9mm depth, and 11.7mm length. Conforms to TIA/EIA-568B and Enhanced Cat5 transmission standards. Explore more high-quality Connectors and electronic components on EnvMart to meet your industrial and commercial networking needs.
