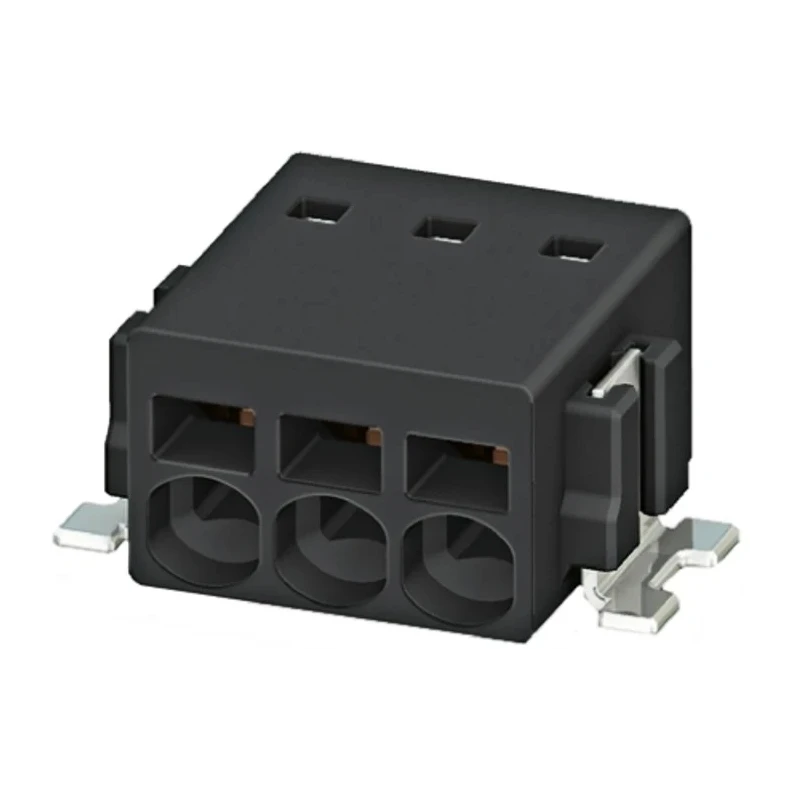

Phoenix Contact PTSM 0.5/3-2.5-V SMD R44 Series Straight PCB Terminal Block, 3 Contacts, 2.5 mm Pitch, 160 V, 6 A 1771101

Phoenix Contact 1771101 is a PTSM 0.5/3-2.5-V SMD R44 Series straight PCB terminal block designed for wire-to-board electrical connections in compact SMT applications.

This product features a 2.5 mm pitch and supports a rated current of 6 A at 160 V. The terminal block incorporates a spring-cage connection system, enabling easy and secure plug-in of solid or stranded conductors of 0.5 mm² cross-section without the need for tools. The spring mechanism ensures defined contact force, maintaining stable electrical contact over time.

The housing is crafted from liquid crystal polymer, offering high mechanical stability and flame retardance rated to UL 94 V-0 standards. Additional solder arms on the side provide reinforcement to reduce mechanical strain on soldering pins during SMT assembly processes.

This product is configured as a single row with 3 contacts, providing a compact yet efficient solution for PCB wiring needs in various industrial applications including electronic manufacturing, automation, and control systems.

Compact low-profile SMD design ensures space-saving PCB integration. Spring-cage technology for simple, tool-free cable connection. Robust liquid crystal polymer housing with excellent thermal and mechanical properties. Supports conductors up to 0.5 mm² cross-section with rated current of 6 A.

Additional side solder arms reduce mechanical stress during SMT soldering. Ideal for industrial, laboratory, and manufacturing electronic equipment. Straight orientation simplifies PCB layout design.

This Phoenix Contact PCB terminal block 1771101 offers dependable and efficient connections critical to power and signal transmission in demanding electrical and electronic environments.
