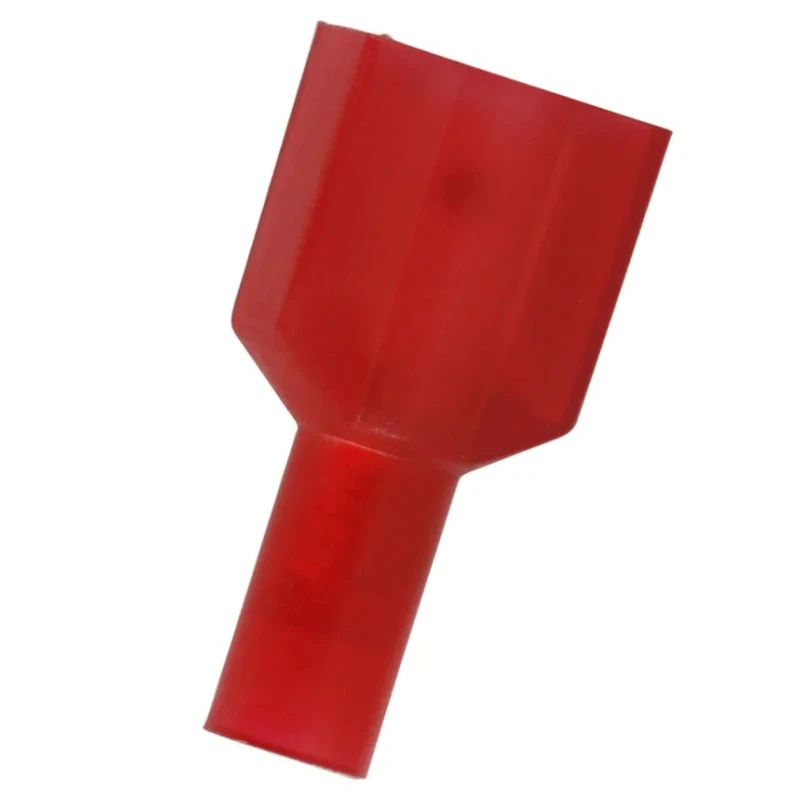

RS PRO Red Insulated Male Spade Connector, Crimp Termination, 0.8 x 6.35 mm Tab Size, 22 AWG to 16 AWG 178-8369
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 178-8369 |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 24.5mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 0.8 x 6.35 mm |
Key Features
- Constructed from brass contact material with tin plating for reliable conductivity.
- Insulated with red nylon for enhanced electrical insulation and safety.
- Straight orientation design for easy and secure connections.
- Overall length of 24.5 mm for compact installation.
- Compatible with wire sizes ranging from 0.5 mm² to 1.5 mm².
- Designed for crimp termination to ensure strong mechanical and electrical connection.
- Meets general industrial usage without specific approvals or certifications.
- Manufactured in Taiwan, Province of China, ensuring quality standards.
Product Description
RS PRO 178-8369 Red Insulated Male Spade Connector is a crimp-type electrical connector designed for secure and efficient termination of wires with sizes ranging from 22 AWG to 16 AWG. Featuring a 0.8 x 6.35 mm tab size, this connector is ideal for a wide range of electronic and electrical applications requiring reliable connections.
Constructed with a brass contact material plated with tin, this spade connector ensures excellent electrical conductivity and corrosion resistance. The red nylon insulation provides reliable electrical isolation and protects against short circuits and mechanical damage during handling and use.
The straight orientation and compact overall length of 24.5 mm make the connector suitable for confined spaces and streamline wiring setups in industrial, manufacturing, automotive, and electronic equipment environments.
This product supports crimp termination, offering a secure and durable connection that can withstand mechanical stresses and electrical load variations common in industrial power connectors. It fits wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG), covering diverse wiring needs.
Brass contact with tin plating provides strong electrical conductivity and corrosion resistance. Red nylon insulation ensures safety and reliable isolation of electrical connections. Straight style male spade design for versatile wiring applications.
Overall connector length of 24.5 mm facilitates easy integration into various assemblies. Compatible with crimp termination tools for efficient installation. Fits wire sizes from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²), suitable for multiple industrial and electronic systems.
Manufactured in Taiwan, Province of China, adhering to quality manufacturing processes.
This RS PRO Spade Connector is widely suitable for the Electronics & Electricals industry, supporting applications in power connections, control panels, automotive harnesses, and more. Its robust construction and insulation make it a dependable choice for manufacturing, electrical maintenance, and system assembly in industrial and commercial environments.
Explore more RS PRO connectors and components to build reliable electrical systems, available through EnvMart's comprehensive Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 0.8 x 6.35 mm.
It is compatible with wire sizes ranging from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²).
The overall length of this connector is 24.5 mm, making it suitable for compact installations.
This connector is constructed from brass with tin plating for the contact material and features red nylon insulation.
It uses a crimp termination type, ensuring a strong mechanical and electrical connection.
The orientation of this connector is straight, allowing for easy and secure connections.
This connector is manufactured in Taiwan, Province of China.
It is suitable for a wide range of applications in industrial, manufacturing, automotive, and electronic equipment environments.
The gender of this connector is male.
The insulation material used in this connector is nylon, which provides reliable electrical isolation.
The contact material is brass, which is plated with tin for enhanced conductivity and corrosion resistance.
The thickness of the tab on this connector is 0.8 mm.
