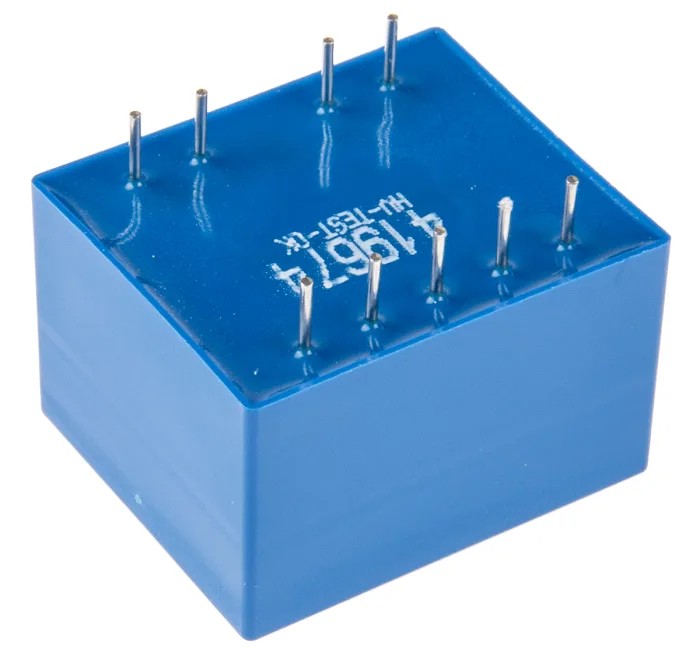

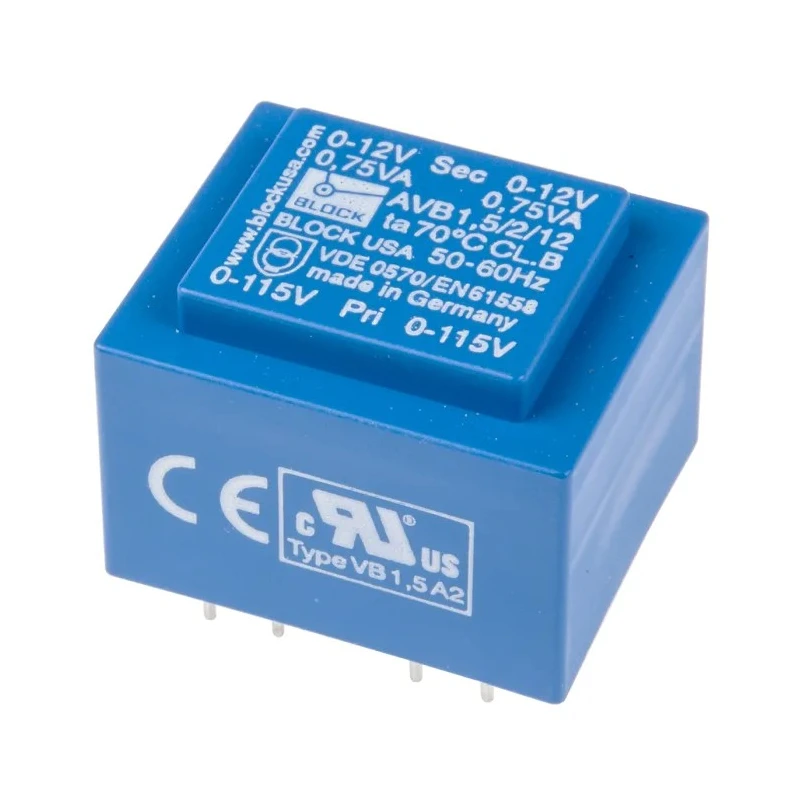

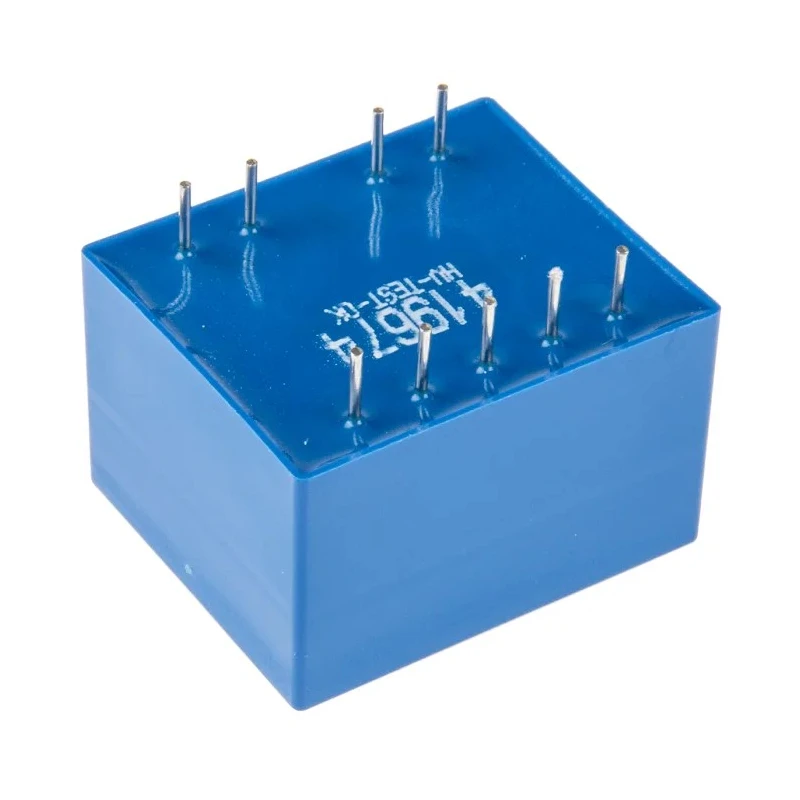

Block PCB Transformer 1.5 VA Power 12 V ac Secondary Voltage 115 V ac, 230 V ac Primary Voltage 2 Outputs Pin AVB1.5/2/12

Block AVB1.5/2/12 PCB Transformer is a compact, vacuum epoxy resin moulded transformer designed for PCB mounting, delivering 1.5 VA power with dual 12 V ac outputs. It supports dual primary voltages of 115 V ac or 230 V ac operating at 50 to 60 Hz frequency, offering flexible usage in various electronic circuits.

This transformer features twin secondary windings that allow for series or parallel connection, making it adaptable for different voltage or current requirements while maintaining high safety via 5000 V isolation voltage.

The AVB series is inherently short circuit proof, ensuring protection against faults. The design includes double section glass fibre reinforced polyamide bobbins that contribute to durability and reliability during operation.

With an efficiency of 57% and a maximum operating temperature of 70°C, this transformer maintains low temperature rise during use. The pin mount type allows for easy and secure placement on printed circuit boards, making it suitable for industrial and commercial electronic applications.

The product holds certifications including ENEC 10 (VDE) and C-UL-US ensuring compliance with international safety standards. Dimensions are 32.3 mm length, 27.3 mm width, 23.8 mm depth, and the weight is approximately 80 grams, facilitating compact integration.

Supports primary voltages of 115 V ac and 230 V ac for versatile input. Pin mount type ensures compact and secure PCB installation. Isolation voltage rating of 5000 V for electrical safety. Vacuum epoxy resin moulded construction with UL94-V0 flame retardant rating.

Efficiency of 57% and maximum operating temperature of 70°C for reliable use. Complies with ENEC 10 (VDE), C-UL-US safety standards. Twin secondary windings for series or parallel connection options. Inherently short circuit proof design enhances durability.

Compact size and light weight (80 g) for PCB integration. Ideal for various industrial, electronic, and power supply transformer needs.

The Block AVB1.5/2/12 transformer is recommended for use in industrial machines, electronic devices, manufacturing equipment, and power distribution systems. Its robust design and certifications ensure safe and efficient operation in demanding environments. Browse the Electronics & Electricals section at EnvMart for compatible transformers and related components.
