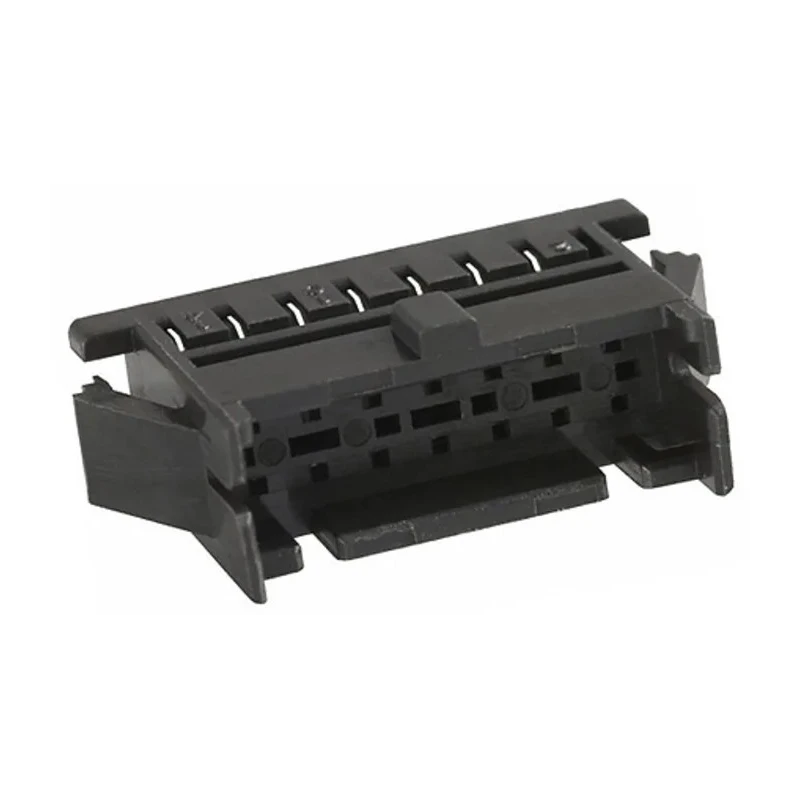

Hirose DF11 Male Connector Housing 2 mm Pitch 20 Way 2 Row Straight

Hirose DF11-20DEP-2C is a male connector housing from the DF11 series, featuring a 2 mm pitch and 20 contacts arranged in 2 rows with a straight orientation. It is designed for panel mount applications and made from robust polyamide material, ensuring durability in various electronic environments.

The compact design allows a double row contact arrangement within the same footprint as a single row housing, with an overall length of 27 mm and width of 13 mm. This space-saving footprint suits modern electronic components requiring multiple signal connections in limited space.

Its construction includes guide ribs that prevent incorrect insertion and twisting when mating, enhancing connector reliability and reducing assembly errors. The friction locking mechanism ensures a secure connection between the plug connector and its mating socket, while mounting ears provide firm retention on panels with thicknesses ranging from 1.0 mm to 1.6 mm.

This connector housing is compatible with DF11 series contacts, commonly used in consumer electronics such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices. The connector's design supports high-density signal transmission while maintaining a low profile.

This connector housing is designed for panel mounting applications. Compact 2.00 mm pitch enables space-saving double row configuration. Manufactured from durable polyamide material for reliable performance. Includes guide ribs and friction locking mechanism for secure mating and prevention of incorrect insertion.

Mounting ears provide stable retention when attached to panels. Suitable for DF11 series contacts used in electronic components and power connectors. Connector dimensions measure 27 mm length and 13 mm width. Ideal for interfacing PCBs in digital devices, cameras, displays, and measurement equipment.

As part of the Hirose DF11 series, the DF11-20DEP-2C Connector Housing is tailored for industrial, electronic manufacturing, and laboratory environments needing dependable, compact, and versatile connector solutions. Browse additional Hirose connectors and electronic components on EnvMart for compatible parts and accessories.
