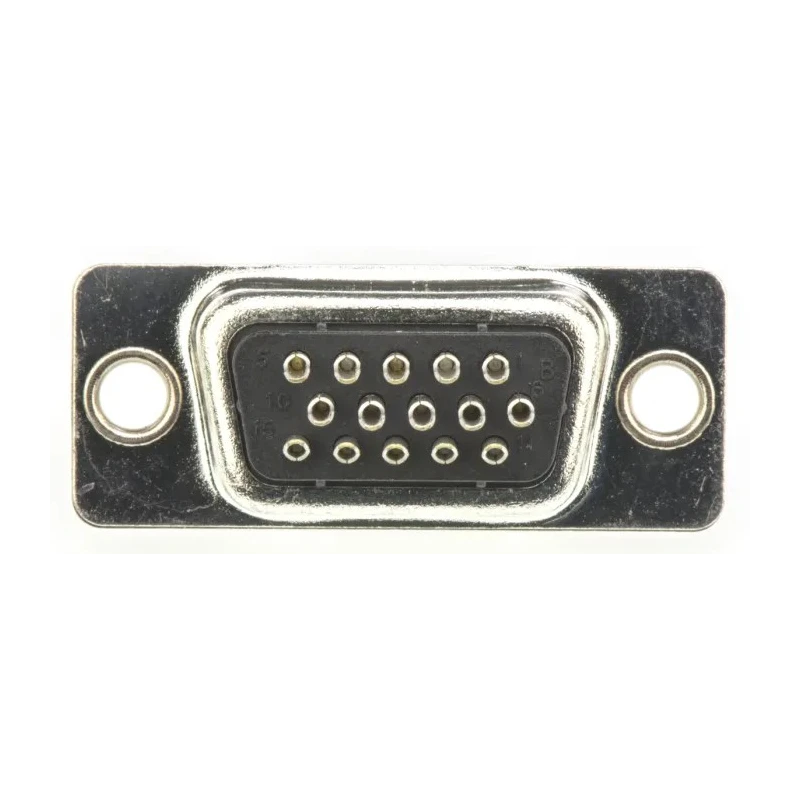

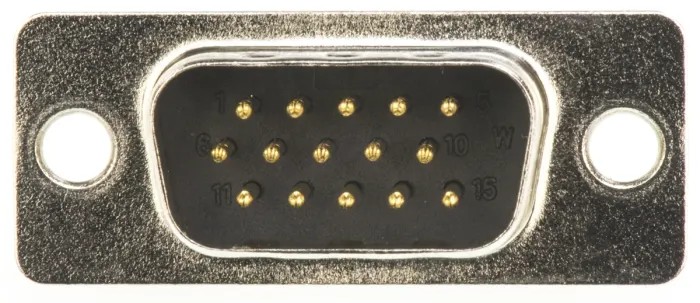

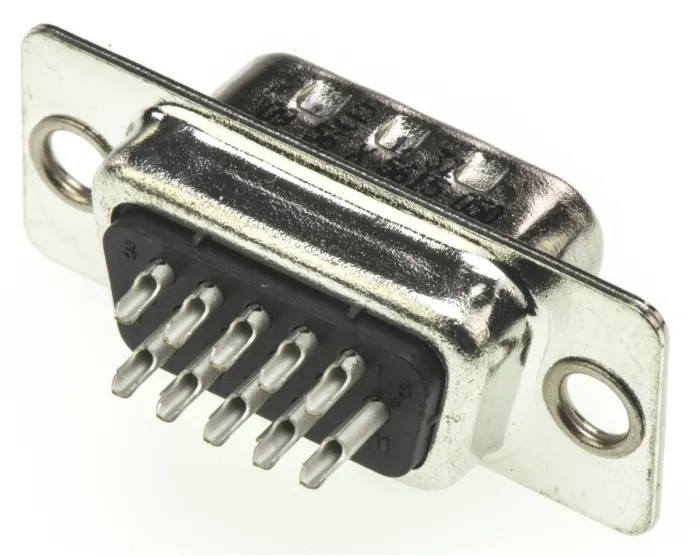

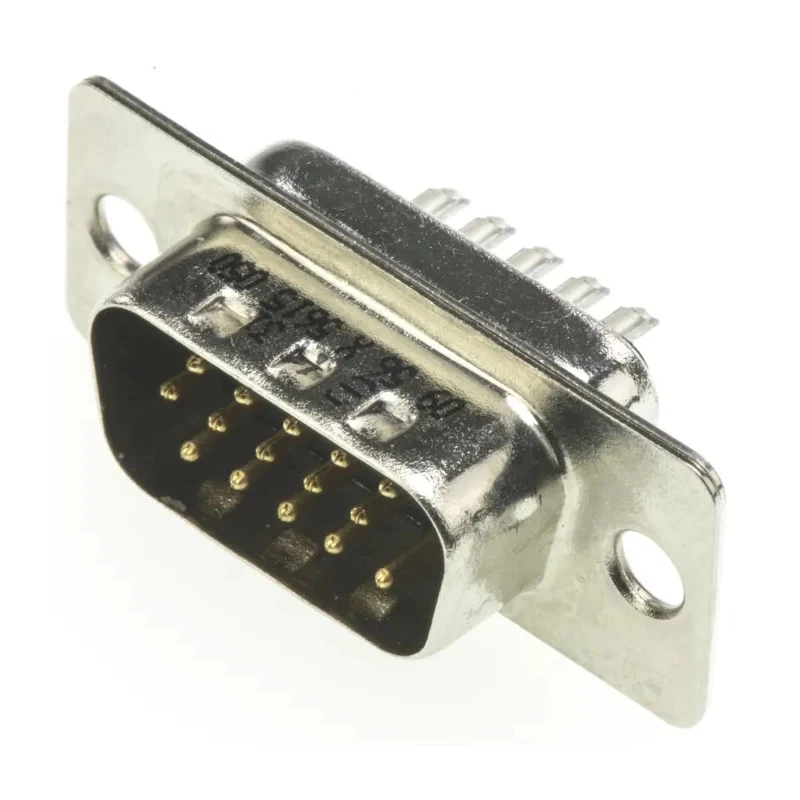

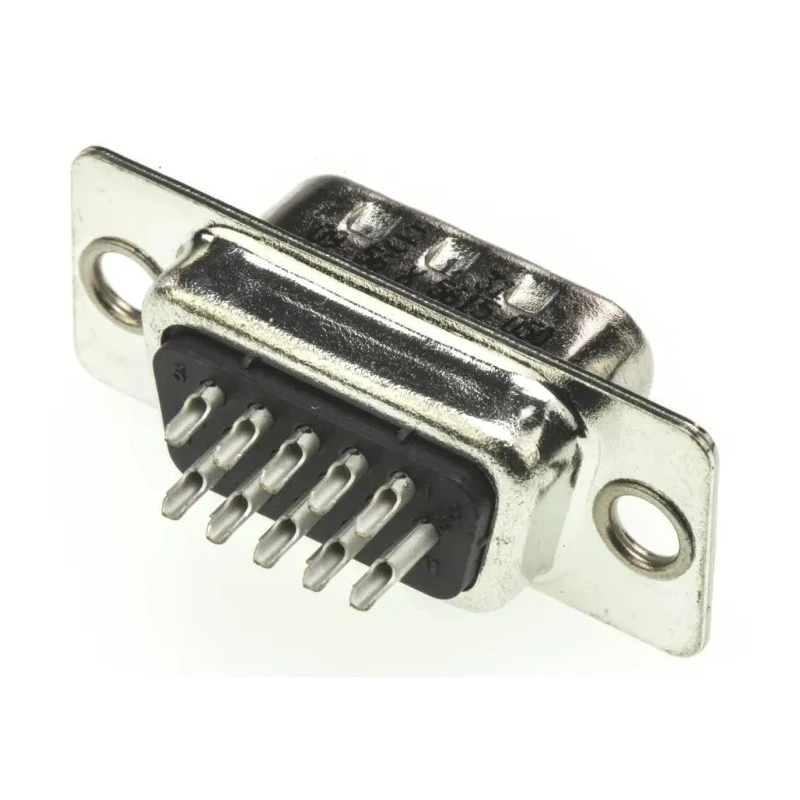

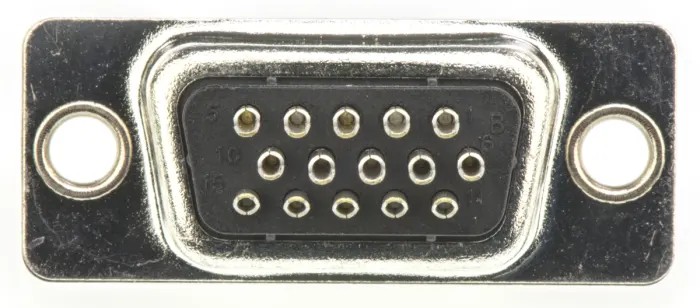

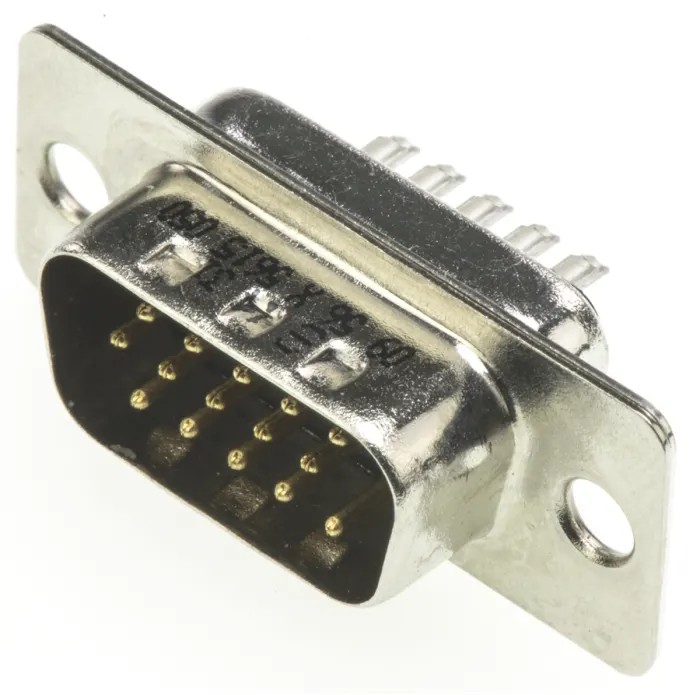

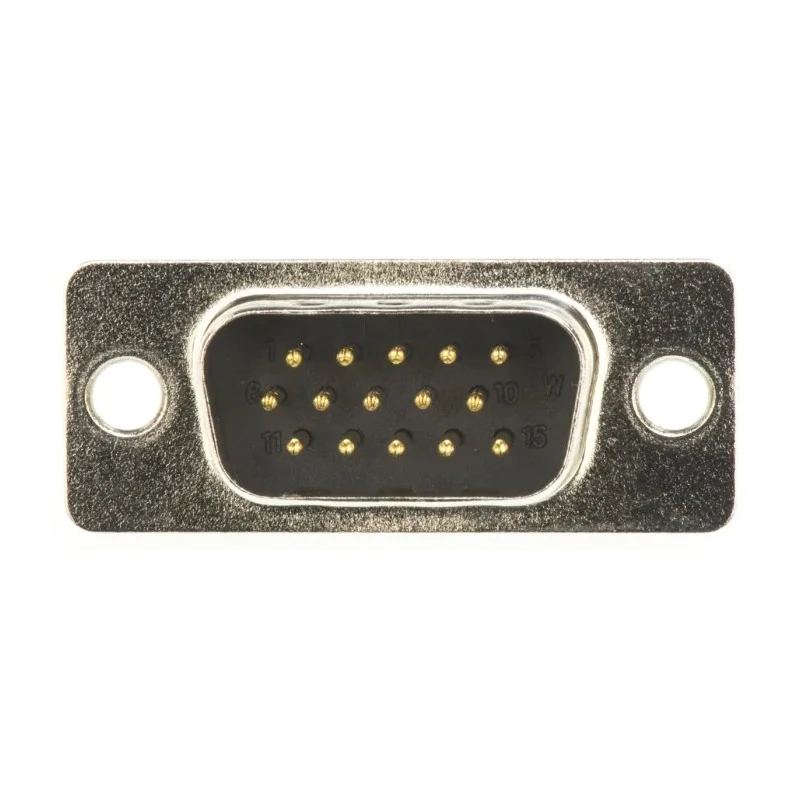

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561005615050
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
| HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- Features 15 contacts with 2.29 mm pitch for precise connection.
- Supports a current rating of 2A suitable for power applications.
- Constructed with a steel housing for durability and robust performance.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Operates reliably within a temperature range from -55°C to 105°C.
- Solder termination type with male contact gender.
- Includes stamped solder cups enabling secure cable mounting.
- Complies with D-Sub series specifications and performance level S4 standards.
Product Description
HARTING 09561005615050 D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector is engineered for reliable electrical connections in demanding industrial, electronic components, and power connector applications.
This connector features 15 male contacts spaced with a 2.29 mm pitch within a durable steel housing, supporting a voltage of 1000V and a current rating of 2A. Designed to operate reliably from -55°C up to 105°C, it accommodates harsh environmental conditions.
The contacts are made from copper alloy with gold plating (≥ 0.76 μm Au) to ensure superior conductivity and long-term corrosion resistance. The connector uses stamped solder cups for termination, ensuring secure cable connectivity.
Its stamped pins and tin-plated metal shell with dimples enhance mechanical robustness. The high-density design increases contact capacity by 70% compared to standard subminiature D connectors, making it suitable for space-constrained electronic and industrial systems.
Applications include industrial automation, electronic equipment manufacturing, communication devices, and power distribution systems where reliable signal and power transmission is essential.
15-way male D-Sub Connector with 2.29 mm pitch. Steel housing provides mechanical strength and durability. Gold-plated copper alloy contacts for excellent electrical performance. Rated for 2A current and 1000V voltage operation.
Reliable operation from -55°C to 105°C ambient temperature. Solder termination type suitable for cable mounting. High-density design enhances contact count in limited space. Suitable for industrial, electronic components, and power connectors applications.
Explore more power connectors and electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2A and a voltage rating of 1000V, making it suitable for power applications.
The contacts in this connector are spaced with a pitch of 2.29 mm, allowing for precise connections.
It features a steel housing for durability and gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.
This connector operates reliably within a temperature range from -55°C to 105°C, accommodating harsh environmental conditions.
The connector uses solder termination with stamped solder cups, ensuring secure cable mounting.
It has 15 male contacts, designed for high-density applications.
It is suitable for industrial automation, electronic equipment manufacturing, communication devices, and power distribution systems.
The shell size for this model is classified as size E in the D-Sub series.
The connector features stamped pins and a tin-plated metal shell with dimples, which enhance its mechanical robustness.
Yes, it complies with D-Sub series specifications and performance level S4 standards.
This model has a straight orientation, suitable for various installation needs.
The country of origin for this connector is China.
