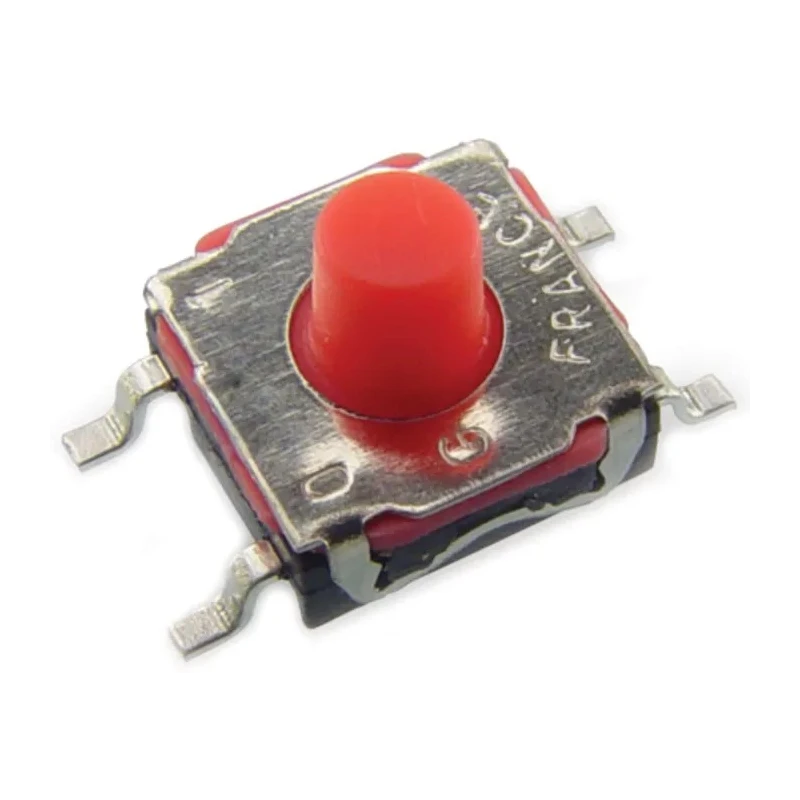

C & K IP67 Red Tactile Switch Button, SPST 50mA 12 V dc, Surface Mount

Name: C & K IP67 Red Tactile Switch Button, SPST 50mA 12 V dc, Surface Mount
Brand: C & K
SKU: 204297
Price: 0.54 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	France
Brand	C & K
Height	5.2mm
Length	6.2mm
Model	IP67
IP Rating	IP67
Width	6.2mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	2N
Mechanical Life	200000Cycles

Key Features

Offers reliable SPST (Single Pole Single Throw) contact configuration with momentary switch operation.
Rated for 50mA current and 12 V dc contact voltage suitable for low power control circuits.
Features an IP67 rating providing complete protection against dust and water ingress.
Compact dimensions of 6.2mm length, 6.2mm width, and 5.2mm height are ideal for space-limited PCB applications.
Robust J bend terminal type ensures durable surface mounting on printed circuit boards.
Red-colored soft button actuator with 2N operating force offers precise tactile feedback.
Mechanical life rated at 200,000 cycles delivers extended operational reliability.
Operating temperature range from -40°C to 85°C allows use in harsh environments.

Product Description

C & K KSC4D1J 50SH LFS IP67 Red Tactile Switch Button is a precision-engineered component suitable for industrial, automotive, mobile phone, computer infrastructure, and telecom applications. It is a surface mount tactile switch with a Single Pole Single Throw (SPST) contact configuration and momentary operation intended for low current usage.

This switch features a red button-style actuator that is soft to the touch, providing excellent tactile response. The device measures 6.2mm by 6.2mm with a height of 5.2mm, fitting compact spaces on printed circuit boards where height restrictions are crucial.

Designed with an IP67 ingress protection rating, it offers robust sealing against dust and moisture, suitable for harsh environments. The J bend terminal type facilitates easy and reliable surface mounting on PCB assemblies.

Its electrical ratings include a contact DC voltage of 12V and a maximum current of 50mA, making it ideal for low power switching circuits in electronic instrumentation and telecom equipment. The mechanical life expectancy of 200,000 cycles and an operating force of 2N ensure long-term durability and consistent performance.

Operating within a temperature range from -40°C up to 85°C, this tactile switch complies with RoHS standards, making it environmentally safe for use in various electronic designs. Reliable SPST momentary switch operation with soft red button actuator.

IP67 sealed design protects from dust and water ingress. Compact size ideal for space-restricted PCB mounting. J bend termination ensures secure surface mount connections. Durable mechanical life of 200,000 cycles with 2N operating force.

Operates over a wide temperature range from -40°C to 85°C. Suitable for automotive, industrial electronics, telecom, and IT infrastructure uses.

This product aligns with quality and performance demands in industrial automation systems, mobile electronics, and telecommunications network devices. Explore our comprehensive selection of Tactile Switches and precision electromechanical components at EnvMart to meet diverse project requirements.
