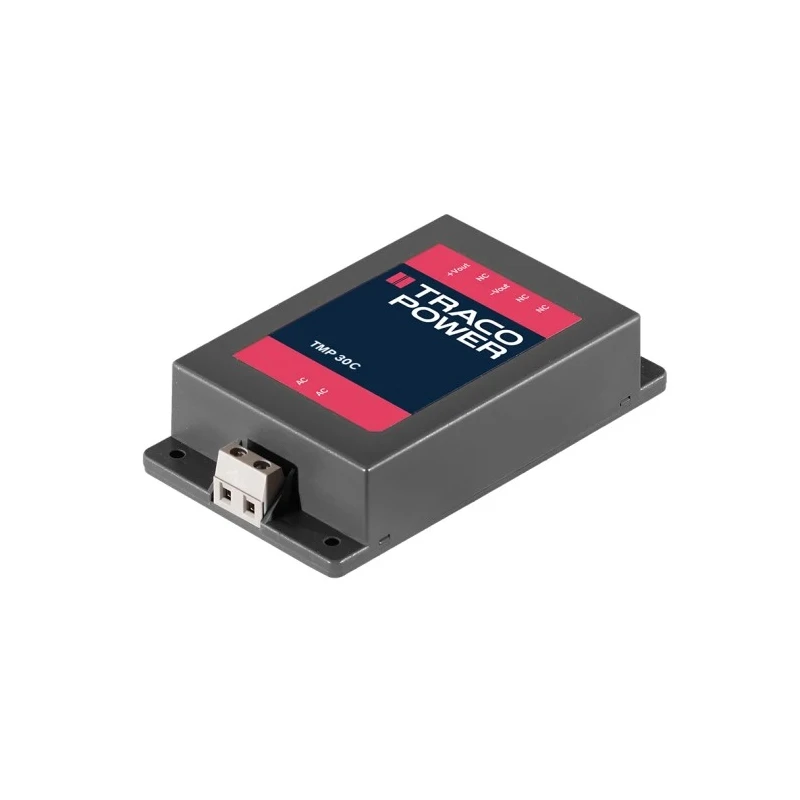

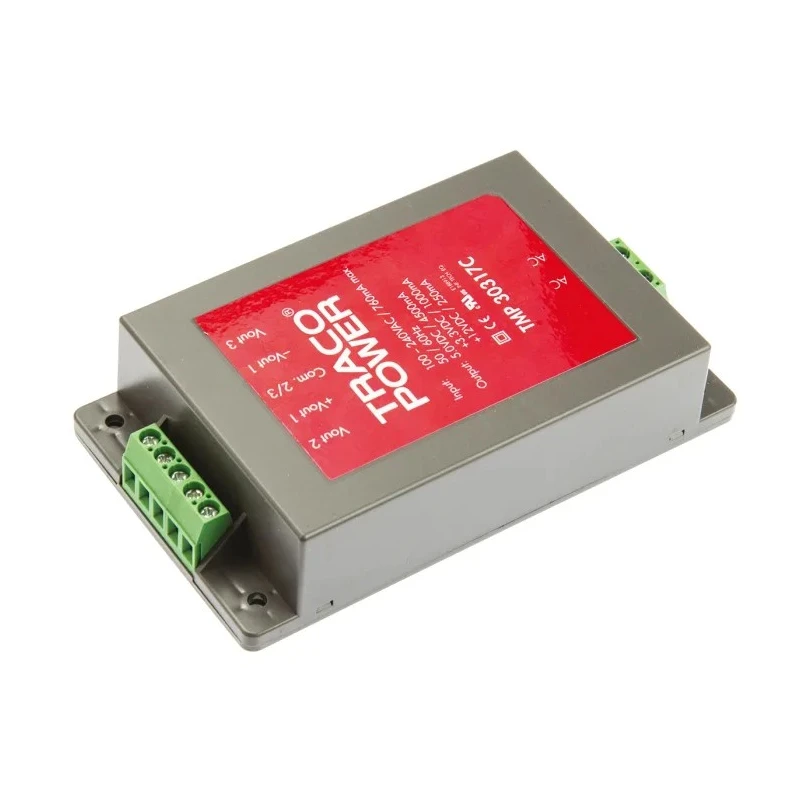

TRACOPOWER Switching Power Supply 3 Output 5V 30W Chassis Mount TMP 30317C

TRACOPOWER TMP 30317C is a chassis-mount switching power supply offering three isolated 5V outputs with a combined power rating of 30W. This encapsulated AC/DC power supply is designed for reliable operation in industrial and commercial environments with space limitations. It accepts a universal input voltage range from 85V to 264V AC, maintaining a high efficiency of 71%, which reduces heat generation and energy consumption.

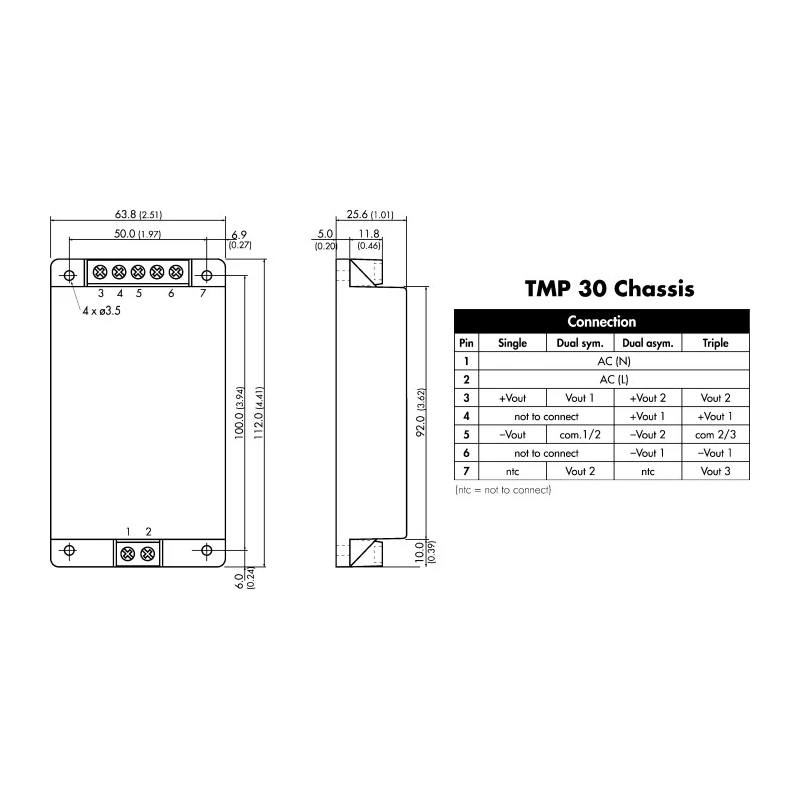

The supply supports operation in ambient temperatures ranging between -25°C and 60°C, making it suitable for diverse conditions. Its compact footprint of 112mm length, 63.8mm width, and 25.6mm depth allows integration into tight spaces. The fully encapsulated design protects the unit from dust and contamination while ensuring safety with protection mechanisms including short circuit, overload, and over temperature shutdown.

The TMP 30317C power supply conforms to important international standards and approvals, including UL 60950-1, EN 61000 series electromagnetic compatibility standards, FCC Part 15 Class B, IEC/EN 60950-1, RoHS, and UL/cUL 508. This ensures dependable operation and compliance with industry requirements. The isolated outputs provide design flexibility by allowing the first output to be isolated from outputs two and three, which are commonly grounded depending on the model.

Its construction suits sensitive and space-critical equipment applications within commercial and industrial sectors, providing stable and efficient DC power delivery. The chassis mount design enables secure and straightforward mounting using screw terminal block connections. The product is manufactured in Taiwan, Province Of China, guaranteeing high manufacturing quality and standards.

Three isolated 5V outputs providing 30W total power. Universal AC input voltage range: 85-264V AC for worldwide compatibility. Compact chassis mount encapsulated design for harsh environments. Protection against short circuit, overload, and thermal overload.

Compliance with multiple safety and EMC standards ensures reliability. Wide operating temperature range suitable for industrial applications. High efficiency at 71% reduces energy consumption and heat. Fully encapsulated casing protects against dust and pollution.

Flexible output isolation for versatile electrical designs. Manufactured in Taiwan, Province Of China. Explore more Switching Power Supplies and industrial power solutions at EnvMart for reliable and efficient power management in your projects.
