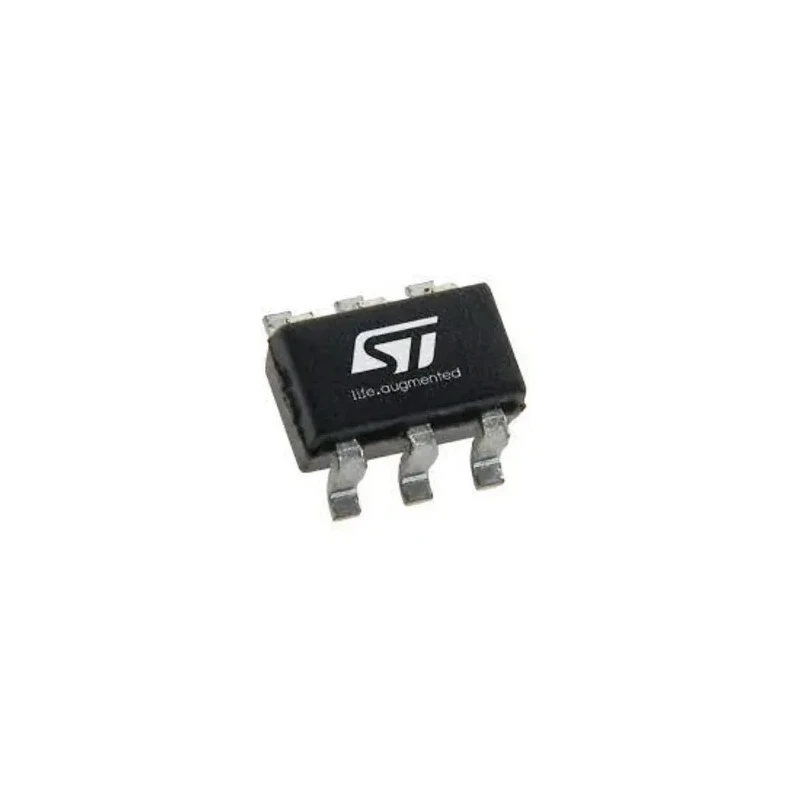

STMicroelectronics Current Sensing Amplifier Single Channel 2.7-26V Supply SC-70-6 Package TSC215IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.4mm |
| Length | 1.8mm |
| Model | TSC215IYCT |
| Mount Type | Surface |
| Series | TSC21x |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | Automotive grade, RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 115μA |
| GBP - Gain Bandwidth Product | 60kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates over a wide common mode voltage of -0.3 to +26 V allowing versatility in sensor applications.
- Features ultra-low quiescent current consumption of 115 μA ensuring efficient power usage.
- Offers a high common mode rejection ratio (CMRR) of 105 dB for precise current measurement.
- Designed with zero-drift architecture for excellent accuracy and low offset drift.
- Compact surface mount SC-70-6 package with dimensions 1.8 mm x 1.4 mm.
- Gain bandwidth product of 60 kHz suitable for a range of frequency applications.
- Operation temperature range from -40°C to 125°C for reliable performance in harsh environments.
- Automotive grade quality with RoHS compliance, ensuring industry-standard safety and environmental adherence.
Product Description
STMicroelectronics TSC215IYCT is a high precision current sensing amplifier designed for current monitoring using a shunt resistor. It operates with a single power supply ranging from 2.7V up to 26V and supports common mode voltages from -0.3V to 26V. This tight voltage range enables flexible use in telecom, automotive, and industrial applications.
The device features a zero-drift architecture which minimizes offset voltage and drift, enhancing measurement accuracy with a gain error of ±1% maximum and offset drift of only 0.1 μV/°C. This makes it suitable for precision current sensing tasks where stability over temperature is crucial.
Its extremely low quiescent current of approximately 115 μA contributes to low power dissipation, beneficial for battery-powered or energy-sensitive equipment. The amplifier also provides a high common mode rejection ratio (CMRR) of 105 dB, ensuring noise immunity in electrically noisy environments.
Packaged in a compact surface mount SC-70-6 package with a small footprint of 1.8 mm length and 1.4 mm height, the TSC215IYCT supports automated PCB assembly and space-constrained designs. It operates reliably over a wide industrial temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions.
The product complies with automotive grade standards and RoHS directives, underscoring its suitability for automotive and industrial electronics sectors. The amplifier is ideal for current monitoring, protection, and control in power supplies, battery management systems, and embedded electronics.
Wide common mode voltage support from -0.3V to 26V. Single supply operation voltage from 2.7V to 26V. Extremely low quiescent current of 115 μA. Zero-drift architecture with low offset and gain drift. High common mode rejection ratio of 105 dB.
Compact 6-pin SC-70-6 package (1.8 mm x 1.4 mm). Operating temperature range -40°C to 125°C. Automotive grade and RoHS compliant.
Explore the STMicroelectronics TSC215IYCT for high precision, compact, and low power current sensing amplifier solutions in demanding industrial, automotive, and telecommunications applications. Browse more products in the Current Sensing Amplifiers category at EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single supply voltage ranging from 2.7V to 26V.
It supports a wide common mode voltage range from -0.3V to +26V, allowing for versatile applications.
The amplifier features an extremely low quiescent current consumption of approximately 115 μA.
The gain bandwidth product of the TSC215IYCT is 60 kHz, making it suitable for a range of frequency applications.
It operates reliably over a temperature range from -40°C to 125°C, suitable for harsh environments.
The TSC215IYCT has a high common mode rejection ratio (CMRR) of 105 dB, ensuring noise immunity in electrically noisy environments.
The compact SC-70-6 package measures 1.8 mm in length and 1.4 mm in height.
This current sensing amplifier supports a single channel configuration.
It is compliant with automotive grade standards and RoHS directives, ensuring adherence to industry safety and environmental requirements.
The amplifier has a maximum gain error of ±1%, enhancing its suitability for precision current sensing tasks.
This model is designed for surface mounting, facilitating automated PCB assembly.
It is ideal for current monitoring, protection, and control in power supplies, battery management systems, and embedded electronics.
