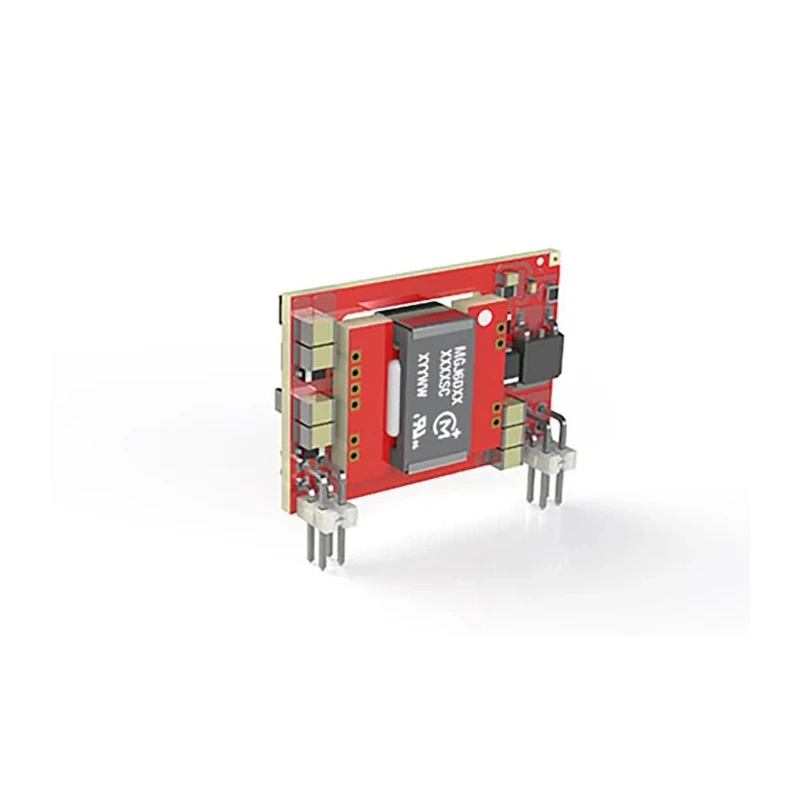

Murata Power Solutions MGJ6 DC/DC Converter, 15V dc Output, 240mA, 9V dc Input, Operating Temperature -40°C to +105°C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Length | 38.89mm |
| Model | MGJ6 |
| Depth | 10.9mm |
| Width | 28.12mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 15V dc |
| Minimum Input Voltage | 9V dc |
Key Features
- This isolated DC-DC converter provides bipolar output voltages optimized for IGBT and MOSFET gate drives.
- Features a compact surface mount package with dimensions 38.89mm x 28.12mm x 10.9mm.
- Operates reliably within a temperature range from -40°C to +105°C.
- Designed for use in motor drives, inverters, and bridge circuits requiring high isolation and drive level optimization.
- Supports continuous barrier withstand voltage up to 3kV DC and isolation test voltage of 5.7kV DC.
- Ultra-low coupling capacitance of 15pF reduces noise and signal interference.
- Suitable for high side and low side gate drive circuits for industrial power electronics applications.
Product Description
Murata Power Solutions MGJ6D121510SC DC/DC Converter is a high-quality isolated converter providing 15V DC output at 240mA current from a minimum 9V DC input. It comes in a compact surface mount package measuring 38.89mm in length, 28.12mm in width, and 10.9mm in depth, built to operate in harsh industrial environments with operating temperatures from -40°C to +105°C.
This converter is specially designed for high side and low side gate drive circuits of IGBTs and MOSFETs used in bridge circuits, motor drives, and inverters. It offers optimized bipolar output voltages which help achieve the best system efficiency in power electronics applications.
The MGJ series is constructionally designed for high isolation requirements, making it ideal for applications that demand continuous barrier withstand voltage of up to 3kV DC. The converter also undergoes a stringent isolation test voltage of 5.7kV DC ensuring long service life and reliability.
One of its notable features is an ultra-low coupling capacitance of 15pF, minimizing noise coupling and interference during operation.
This device supports utility in various industrial sectors including manufacturing, automation, and electrical drives systems requiring precise and reliable DC/DC power conversion.
This isolated DC-DC converter offers 15V DC output voltage and 240mA output current. Minimum input voltage is 9V DC for operational efficiency. Compact dimensions of 38.89mm length, 28.12mm width, and 10.9mm depth. Wide operating temperature range from -40°C to +105°C ensures harsh environment endurance.
Designed to support high isolation voltage requirements up to 3kV DC continuous barrier withstand. Ultra-low coupling capacitance of only 15pF reduces electrical noise interference. Surface mount package facilitates easy PCB integration.
For engineers and designers seeking robust DC/DC converters for power management in demanding industrial applications, the Murata MGJ6D121510SC provides a reliable solution. Explore more DC/DC Converters and power electronics components on EnvMart for comprehensive electronic system-building needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MGJ6 DC/DC converter provides a 15V DC output with a maximum output current of 240mA.
This unit requires a minimum input voltage of 9V DC to operate efficiently.
The converter has compact dimensions of 38.89mm in length, 28.12mm in width, and 10.9mm in depth.
It operates reliably within a temperature range of -40°C to +105°C.
The MGJ6 supports a continuous barrier withstand voltage of up to 3kV DC and an isolation test voltage of 5.7kV DC.
This converter features an ultra-low coupling capacitance of only 15pF, which helps minimize noise and signal interference.
It is designed for high side and low side gate drive circuits of IGBTs and MOSFETs used in motor drives, inverters, and bridge circuits.
The MGJ6 comes in a compact surface mount package, facilitating easy integration into PCBs.
Key features include optimized bipolar output voltages, high isolation requirements, and a compact design suitable for harsh environments.
The MGJ6 DC/DC converter is manufactured in India.
The optimized bipolar output voltages of this model help achieve better system efficiency in power electronics applications.
Yes, it is suitable for various industrial sectors including manufacturing, automation, and electrical drive systems.
