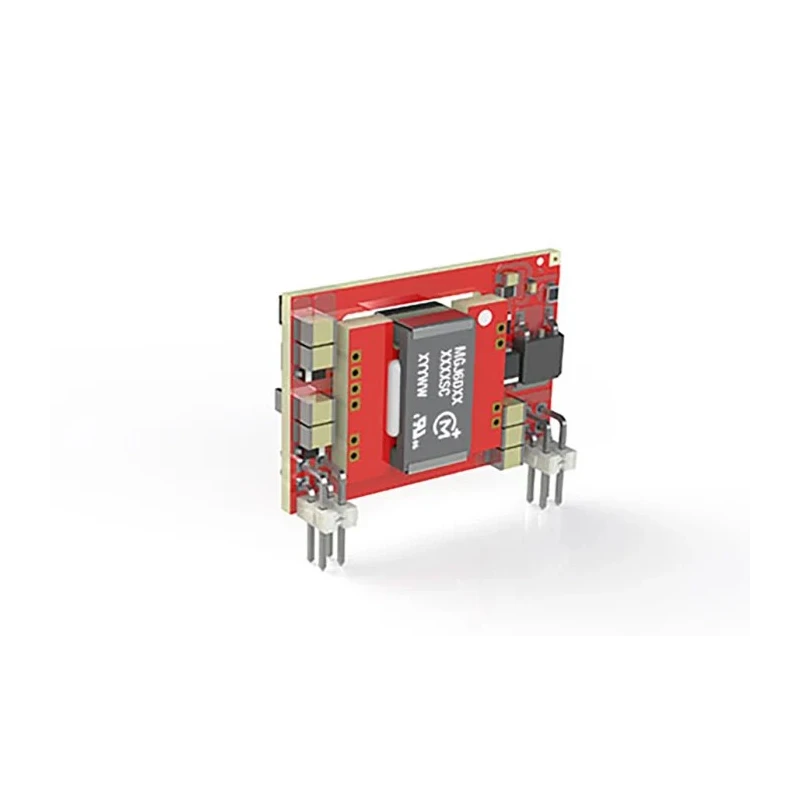

Murata Power Solutions Isolated DC/DC Converter 20V DC Output -5V DC Output 240 mA Output Current 4.5V DC Input MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 20V d |
| Brand | Murata Power Solutions |
| Length | 38.89mm |
| Model | MGJ6 |
| Depth | 10.9mm |
| Width | 28.12mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 20, -5V dc |
| Minimum Input Voltage | 4.5V dc |
Key Features
- Offers high isolation suitable for IGBT and MOSFET gate drive circuits in bridge arrangements.
- Supports operating temperatures ranging from -40°C to +105°C.
- Surface mount package design with ultra-low coupling capacitance of 15 pF.
- Continuous barrier withstand voltage of 3 kV DC ensures reliable isolation.
- Tested for 5.7 kV DC isolation voltage providing enhanced safety and durability.
- Optimized bipolar output voltages enable efficient system performance in motor drives and inverters.
- Designed for long service life and high reliability in industrial applications.
Product Description
Murata Power Solutions MGJ6 Model isolated DC/DC converter offers a reliable solution for producing bipolar output voltages essential for high side and low side gate drive circuits utilizing IGBTs and MOSFETs within bridge topologies. The converter accepts a low input voltage of 4.5V DC and delivers stable output voltages of 20V DC and -5V DC with an output current capacity of 240 mA.
Designed especially for industrial environments, the MGJ6 converter withstands harsh conditions with an operating temperature range from -40°C to +105°C. Its surface mount package enhances ease of installation while maintaining minimal space requirements with dimensions of 38.89 mm length, 28.12 mm width, and 10.9 mm depth.
Key electrical features include a continuous barrier withstand voltage of 3kV DC and a peak isolation test voltage of 5.7kV DC, ensuring safe and robust isolation performance necessary for demanding applications such as motor drives and inverter circuits. The ultra-low coupling capacitance of 15pF minimizes interference, improving signal integrity and overall system efficiency.
This MGJ6 series is ideal for electronic designs requiring precise and reliable voltage conversion with extended service life and operational reliability. Its asymmetric bipolar outputs allow tailored drive levels to maximize system efficiency in power electronic circuits.
High isolation bipolar output voltages for IGBT and MOSFET gate drives. Wide operating temperature range supports industrial application stability. Compact surface mount package design enables integration into space-constrained PCBs.
Ultra low coupling capacitance reduces noise and improves performance. High isolation withstand voltages ensure safe operation in demanding environments. Optimized for motor drives, inverter circuits, and other industrial power systems.
Reliable and long-lasting component for power supply designs. Explore the full range of Murata Power Solutions DC/DC Converters at EnvMart for industrial, laboratory, and manufacturing electronic power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides bipolar output voltages of 20V DC and -5V DC.
It has an output current capacity of 240 mA.
The minimum input voltage required for this unit is 4.5V DC.
The dimensions of this model are 38.89 mm in length, 28.12 mm in width, and 10.9 mm in depth.
It operates within a temperature range of -40°C to +105°C, suitable for industrial environments.
This converter has a continuous barrier withstand voltage of 3 kV DC and has been tested for 5.7 kV DC isolation voltage.
It features an ultra-low coupling capacitance of 15 pF, which helps minimize interference.
It is optimized for use in motor drives, inverter circuits, and other industrial power systems.
This model comes in a surface mount package design, facilitating ease of installation in space-constrained PCBs.
It provides asymmetric bipolar outputs, which allow for tailored drive levels in power electronic circuits.
The country of origin for this unit is India.
This converter is part of the MGJ6 series from Murata Power Solutions.
