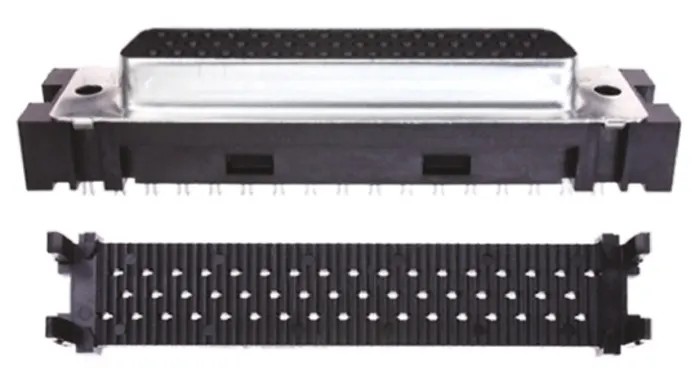

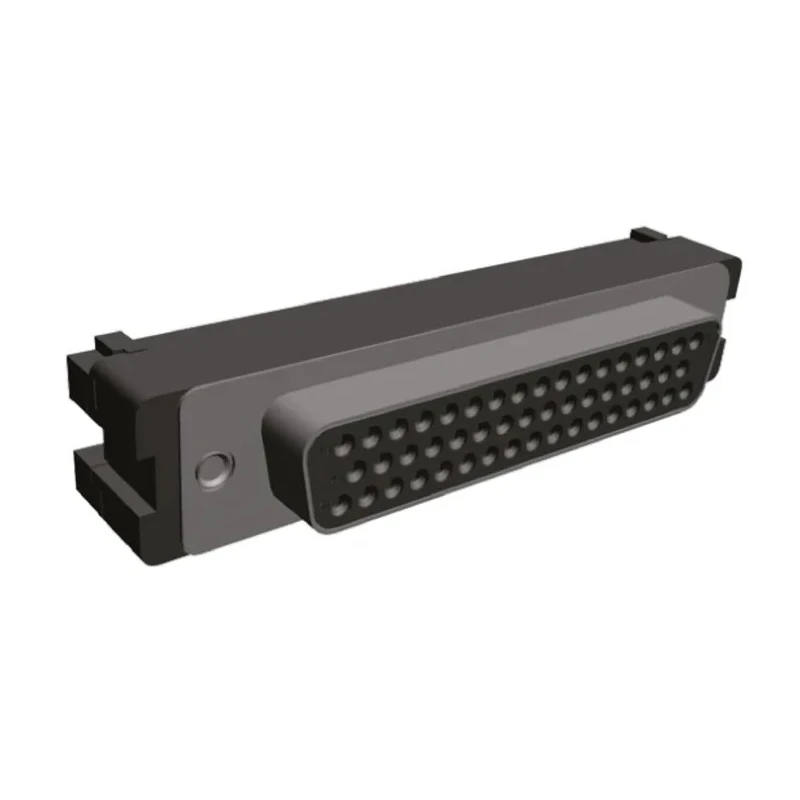

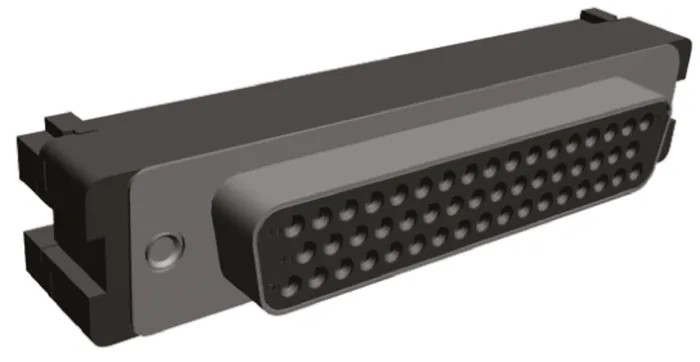

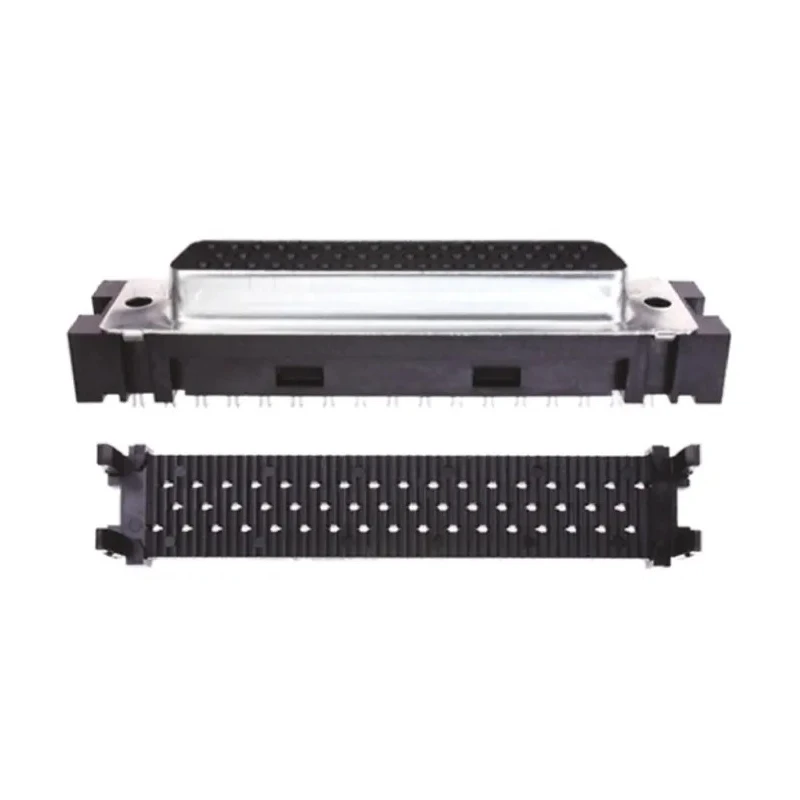

TE Connectivity Amplimite HDF-20 50 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector with 4 to 40 Screw Lock 1658606-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- The connector supports 50 contacts with a 2.76 mm pitch spacing.
- Features a right angle orientation for compact cable routing.
- Housing is constructed of durable steel with gold over nickel plated phosphor bronze contacts.
- Operating temperature range is from -55°C to 105°C, suitable for harsh environments.
- Mounting hardware includes 4 to 40 screw locks for secure connections.
- Designed for flat ribbon cable termination with IDC style contacts terminating 28-26 AWG conductors.
- Complies with UL 94 V-0 fire retardant standards, ensuring safety compliance.
- Part of the Amplimite HDF-20 series low profile metal shell D-sub connectors.
Product Description
TE Connectivity 1658606-1 Amplimite HDF-20 50 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector offers a robust and compact solution for electronic interconnections requiring reliable cable attachment.
This right angle female cable connector supports 50 contacts spaced at 2.76 mm pitch, making it suitable for applications with high-density wiring needs.
Constructed with a tin-plated steel front shell and black 94V-0 rated thermoplastic housings, the connector provides mechanical durability and flame retardancy. Contacts are duplex plated phosphor bronze with gold over nickel plating, ensuring long-term electrical performance.
The connector supports IDC termination of flat ribbon cables with 28 to 26 AWG solid or stranded wires on 1.27 mm centers. Mounting hardware includes brass 4-40 threaded inserts and screw locks for secure engagement.
Operating temperature ranges from -55°C to 105°C, making it suitable for industrial, manufacturing, electronic assembly, and telecommunications applications. The connector series mates with HD-20 board mount, HDP, and HDE connectors of sizes 1-4.
The connector’s housing material is steel, contributing to its rugged design. Designed for cable mounting in environments requiring durable connections. Meets UL 94 V-0 flammability standard, enhancing operational safety.
Contact design and plating optimize signal integrity and corrosion resistance. Complies with industry standards and approvals for electrical connectors.
This product is ideal for engineers and technicians developing electronics systems requiring compact, high-reliability cable connectors in applications such as industrial controls, instrumentation, and telecommunications.
Explore more D-Sub Connectors and associated accessories in the Electronics & Electricals category at EnvMart for tailored connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this D-Sub connector is 2.76 mm.
The maximum operating temperature for this connector is 105°C.
This connector supports 50 contacts.
It uses IDC (Insulation Displacement Connector) termination for flat ribbon cables.
The housing is made of steel, and the contacts are phosphor bronze with gold over nickel plating.
The current rating for this connector is 1.25A.
It includes 4 to 40 screw locks for secure connections.
The connector has a right angle orientation, which allows for compact cable routing, but specific dimensions are not provided.
This connector complies with UL 94 V-0 fire retardant standards.
It can be used in harsh environments, suitable for industrial, manufacturing, electronic assembly, and telecommunications applications.
The minimum operating temperature for this connector is -55°C.
This model mates with HD-20 board mount, HDP, and HDE connectors of sizes 1-4.
