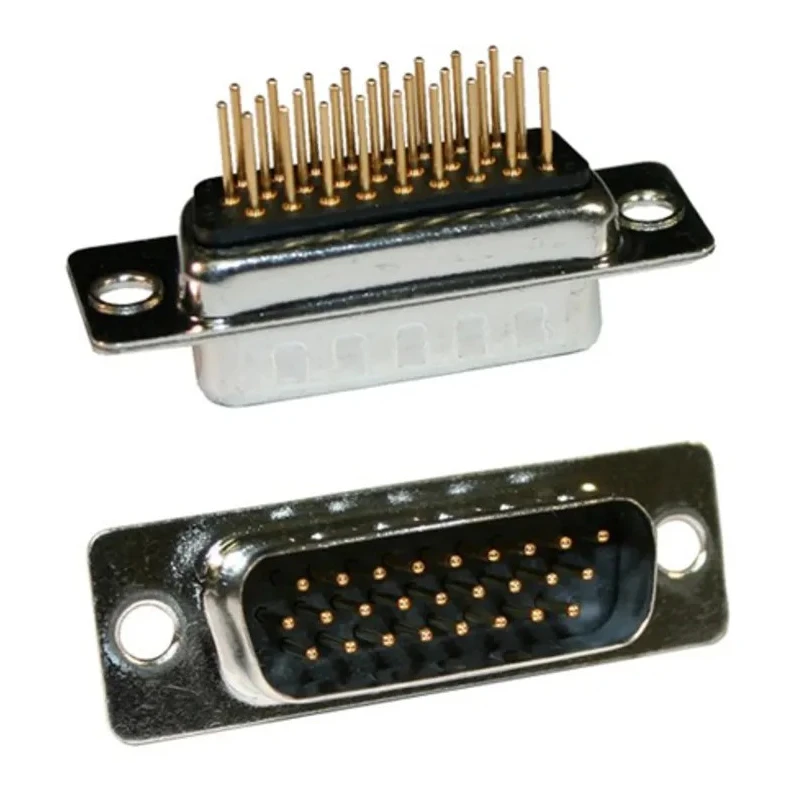

Norcomp 26 Way Straight 2.286 mm Pitch Plug-in D-Sub Connector Male 780-M26-113R001

Norcomp 780-M26-113R001 is a 26 Way Straight 2.286 mm Pitch Plug-in D-Sub Connector Male designed to deliver reliable electrical connections in demanding industrial, electronic, and commercial environments. This high density D-Sub connector features gold-plated brass contacts within a robust steel housing, supporting current up to 5A and voltage up to 1kV, and operating across a wide temperature range from -55°C to 105°C.

Constructed with a steel shell featuring nickel plating, this connector enhances shielding and grounding performance, aided by ground indents and secure mounting hardware. The connector uses solder termination and straight orientation male contacts suited for plug-in applications, assuring a solid and long-lasting connection.

The SEAL-D 780 series complies with IEC-529-IP67 for ingress protection, making it suitable for outdoor use and environments exposed to temporary washdown or submersion. Applications include handheld computers and scanners, remote sensors, industrial and medical equipment, transmitters, emergency beacons, meter systems, portable electric generators, and marine electronics.

This product enables upgrades to IP66/67 rating without redesigning enclosures or PCBs due to its standard D-sub physical profile. Additional features include screw machined contacts and a nickel-plated steel shell with ground indents for improved retention. The product is made in the United States, assuring quality manufacturing standards.

Features 26 gold-plated brass contacts for excellent conductivity. Steel housing provides durable shielding and grounding. Supports current rating up to 5A and voltage rating of 1kV. Designed for plug-in mounting with solder termination for secure connections.

Operates reliably in temperatures from -55°C to 105°C. Connector gender is male with straight orientation for ease of use. Meets IEC-529-IP67 sealing standard for dust and water resistance. Highly reliable screw machined contacts for durability.

For buyers seeking rugged, sealed, and high-density D-Sub Connectors, the Norcomp 780-M26-113R001 is an excellent choice. Explore more connectors in the Power Connectors category at EnvMart for comprehensive solutions.
