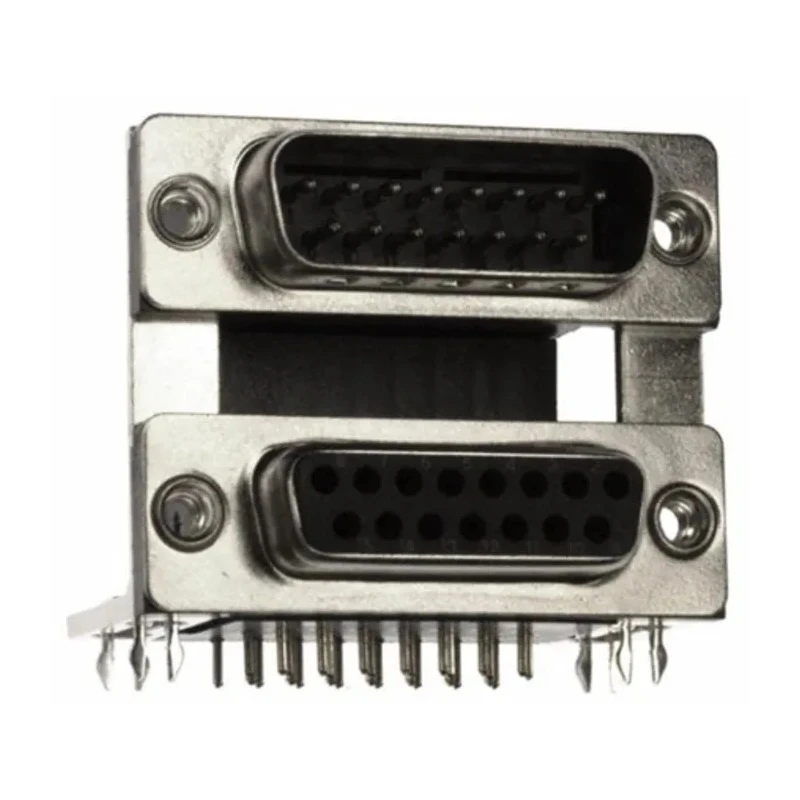

Norcomp 189 Series Right Angle Dual Port 15 and 15 Contact PCB D-Sub Connector 2.769 mm Pitch 189-015-413R571

Norcomp 189-015-413R571 is a member of the Norcomp 189 series dual port PCB mount D-Sub connectors. It is designed for compact and high-density applications, featuring a right angle orientation with 15 contacts in both shell A and shell B, each with a 2.769 mm pitch.

This connector employs high performance stamped brass contacts plated with gold to ensure excellent conductivity and corrosion resistance. The dual ports allow for efficient use of PCB space while maintaining reliable electrical connections.

The shell is crafted from nickel plated steel which offers superior shielding to minimize electromagnetic interference, along with mechanical robustness. Ground indents in the shell improve grounding and retention capabilities, complementing the boardlocks that secure the connector firmly onto the PCB.

It uses a solder termination type which provides a strong and dependable joint between the contacts and the PCB. Mounting hardware includes options for 4 to 40 flush inserts, ensuring secure and stable installation.

The connector is rated for 5 amps current and operates safely at voltages up to 1 kV, suitable for a variety of electronic and power PCB applications. Its operating temperature ranges from -55°C to 105°C, accommodating demanding environmental conditions.

Additionally, the connector housing uses a high temperature UL94V-0 thermoplastic material capable of withstanding a 260°C process temperature, guaranteeing durability under soldering conditions.

The dual port stacked design is ideal for applications where maximizing connector density on PCBs is critical, such as telecommunications, industrial equipment, computing devices, and other electronic assemblies requiring multiple D-Sub interfaces.

Dual ports for PCB space saving. Gold plated brass contacts for excellent conductivity and corrosion resistance. Nickel plated steel shell for shielding and mechanical toughness. Right angle design fits compact PCB layouts.

Wide operating temperature range suitable for industrial use. Solder termination for reliable PCB connection. High voltage and current ratings for robust performance. UL94V-0 thermoplastic housing ensures high temperature resistance.

Boardlocks and 4 to 40 mounting inserts provide secure fixation. Ideal for telecommunications, industrial, computing, and power applications. Explore more D-Sub Connectors from Norcomp on EnvMart for advanced electronic connectivity solutions.
