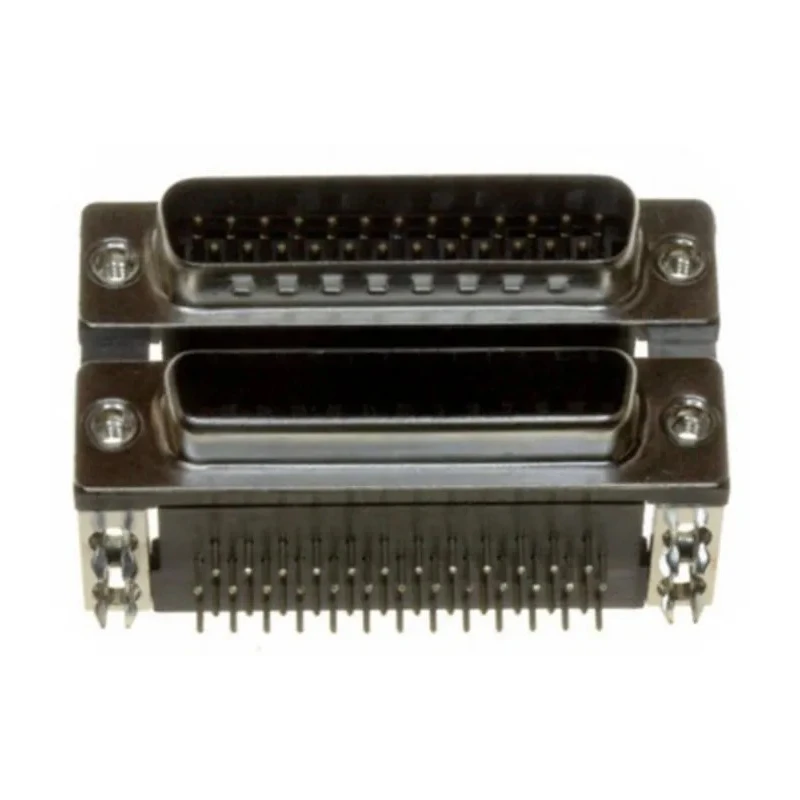

Norcomp 189 Series Right Angle 25 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-025-413R491

Norcomp 189-025-413R491 is a right angle PCB mount D-Sub connector from the 189 Series, featuring dual stacked ports with 25 contacts and 2.769 mm pitch for efficient PCB space utilization.

This connector is designed with high-performance stamped brass contacts plated with gold to ensure superior electrical conductivity and resistance to corrosion, critical for reliable signal transmission in industrial and electronic applications.

The connector shell is made of nickel-plated steel which provides excellent electromagnetic shielding and mechanical strength, helping reduce interference and ensuring durability during use.

It supports a current of 5A and a voltage rating of 1kV, making it suitable for power and data connections in desktop, commercial, and industrial equipment. The right angle orientation and dual port stacking allow for compact PCB layouts where multiple connection points are required within limited space.

Mounting hardware includes 4 to 40 inserts which secure the connector firmly to the PCB together with boardlocks that provide extra retention, reducing the risk of connector detachment during mechanical stress or vibration.

The connector features a high temperature UL94V-0 rated thermoplastic insulator that withstands process temperatures up to 260°C, making it compatible with standard PCB manufacturing processes involving soldering and reflow.

Operating temperature range spans from -55°C to 105°C, ensuring performance stability in harsh and varying environmental conditions.

This Norcomp 189 Series connector is suitable for diverse industrial applications including electronic devices, power supply systems, communication equipment, and computing hardware where reliable multi-pin interfacing on PCB is critical.

The connector uses gold-plated brass contacts for durability and reliable electrical connection. The nickel-plated steel shell enhances shielding and structural integrity. Right angle dual port design maximizes PCB space efficiency.

Includes mounting hardware with 4 to 40 inserts and boardlocks for secure fixing. Operates safely from -55°C to 105°C with UL94V-0 thermoplastic insulation. Rated for 5A current at 1kV voltage suitable for power and signal applications.

Manufactured in Taiwan ensuring quality manufacturing standards. Ideal for industrial, electronic, and computing device PCB connector applications. Explore the extensive range of D-Sub Connectors in the Power Connectors category on EnvMart for compatible and related industrial electronic components.
