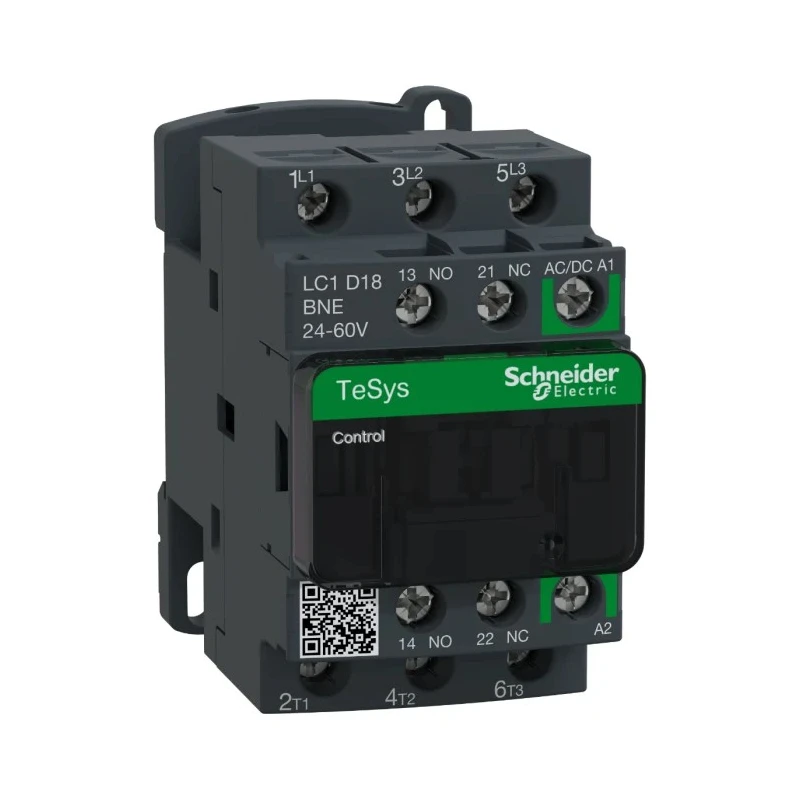

Schneider Electric TeSyS D Contactor, 24V AC/DC Coil, 3-Pole, 18 A, 7.5 kW Power Rating, 60V Control Voltage, 3 LC1D18BNE
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D18BNE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor features a 3 NO (normally open) pole configuration for effective circuit control.
- Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC for additional switching capabilities.
- Mounting options include DIN Rail mounting for easy installation.
- Designed with screw type terminals offering IP20 finger-safe protection and international terminal markings.
- Operates over a wide temperature range from -25°C to 60°C, suitable for various industrial environments.
- Controls circuits with a 60V control circuit voltage (Uc) for versatile application.
- Complies with international standards including UL, RoHS, IEC, EAC, CSA, and CCC certifications.
- Constructed for high reliability with a long mechanical and electrical life, ideal for industrial automation systems.
Product Description
Schneider Electric LC1D18BNE TeSyS D Contactor is a robust, high-quality device designed for motor control and resistive load applications, featuring a 24V AC/DC coil and a 3-pole configuration rated for 18A with a power capacity of 7.5 kW at 690V AC voltage.
This contactor is part of the TeSyS D range, known for combining long mechanical and electrical life, making it highly reliable for industrial use. It supports control circuits with 60V control voltage and includes built-in auxiliary contacts for enhanced switching capabilities.
The device is equipped with screw type terminals that are IP20 finger-safe with markings suitable for both North American and international applications. It is suitable for panel mounting or DIN rail installation, simplifying integration into existing control systems.
Designed to operate efficiently between -25°C and 60°C, this contactor meets rigorous international standards such as UL, RoHS, IEC, EAC, CSA, and CCC, ensuring compliance and quality assurance.
Typical applications include automation and control gear in industrial settings, motor starters, and resistive load control where durability and performance are critical. The 3 NO pole configuration along with 2 auxiliary contacts (1 NO/1 NC) enables versatile and flexible switching for complex systems.
This contactor is widely used in industrial automation, HVAC systems, manufacturing environments, and water treatment plants. Complies with AC1 and AC3 utilization categories, suitable for resistive loads and squirrel cage motors respectively.
Features a bidirectional peak limiting diode suppressor to protect the coil from voltage surges, extending device lifespan. The design supports quick and simple setup, ideal for rapid deployment in control systems. Constructed with sustainability in mind, it carries a Better World claim for designed-for-disassembly recyclability.
Set includes the Schneider Electric LC1D18BNE Contactor ready for industrial integration. Explore more industrial automation products in the EnvMart catalog for optimized system configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TeSyS D Contactor has a power rating of 7.5 kW at 690V AC.
This model operates with a coil voltage of 24V AC/DC.
The maximum operating temperature for this contactor is 60°C.
The LC1D18BNE features a 3-pole configuration.
It is equipped with screw type terminals that provide IP20 finger-safe protection.
This model includes 2 auxiliary contacts configured as 1 NO (normally open) and 1 NC (normally closed).
The contactor can be mounted on a DIN rail, facilitating easy installation.
The control circuit voltage for this device is 60V.
It complies with several international standards including UL, RoHS, IEC, EAC, CSA, and CCC.
The operational current rating of this contactor is 18A.
This contactor operates efficiently between -25°C and 60°C.
The LC1D18BNE is suitable for motor control and resistive load applications in industrial automation systems.
