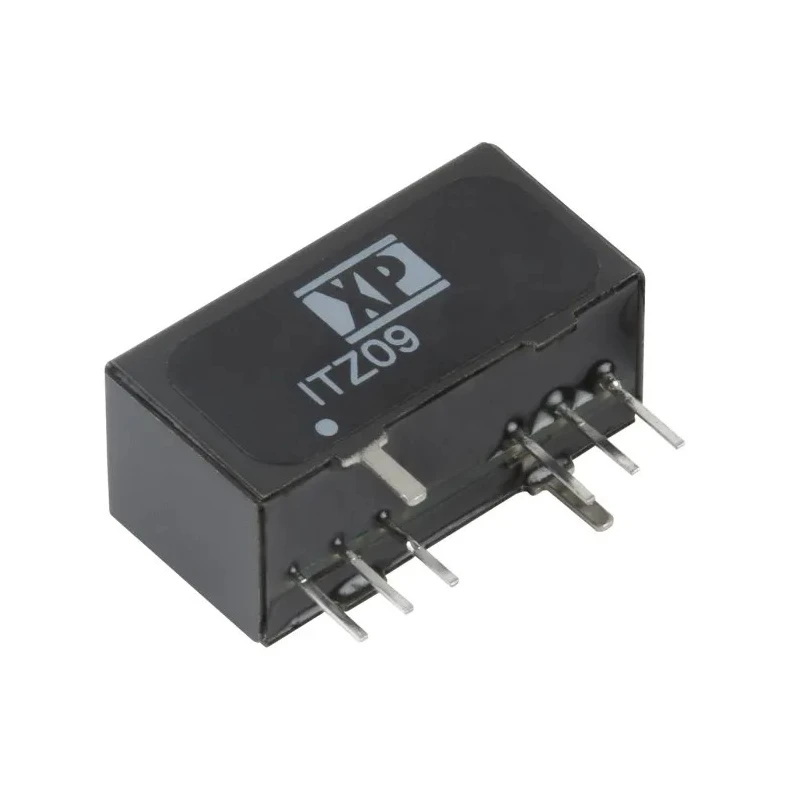

XP Power ITZ Series 9W DC/DC Converter 9V DC Output 1A 18V-75V DC Input Through Hole SIP-8 Package ITZ0948S09

XP Power ITZ0948S09 is a high-performance 9W DC/DC converter designed for industrial and electronic applications requiring efficient isolated power conversion. This compact module delivers a regulated 9V DC output at 1A from a wide input voltage range of 18V to 75V DC. Packaged in an ultra-compact metal SIP-8 case with through-hole mounting, it offers a minimal footprint ideal for space-constrained equipment.

With an input ratio of 4:1, the ITZ series converters accommodate diverse DC input sources, making them suitable for mobile, portable, and wireless product power supplies. The unit achieves an 86% efficiency rating, minimizing heat output and reducing cooling needs without requiring external heat sinks or forced airflow.

This DC/DC converter provides 1500V isolation voltage, enhancing electrical safety and reducing interference in sensitive circuits. It operates reliably across a broad temperature range from -40°C to +85°C, meeting demanding industrial and commercial environment requirements. The device also features a remote on/off function to enable automatic or controlled startup sequencing.

XP Power’s ITZ series is recognized for its compact size, robustness, and fully regulated output, which eliminates the need for a minimum load, ensuring stable voltage regardless of load conditions. The SIP-8 package dimensions are 21.85mm length, 9.6mm width, and 11.2mm depth, facilitating simple PCB integration.

Applications for this converter extend to industrial machinery, telecommunications, instrumentation, and other DC-powered systems where isolated voltage conversion and high reliability are critical. The product is manufactured in Taiwan, Province of China, under stringent quality controls.

Compact SIP-8 metal case with through-hole mount and ultra-small footprint. Wide 4:1 input voltage range from 18V to 75V DC input. 9V DC output voltage at 1A continuous current with 9W power rating. Operational ambient temperature range from -40°C to +85°C.

1500V DC isolation voltage for enhanced safety. High efficiency of 86% minimizing heat and energy loss. Fully regulated output with no minimum load requirement. Remote on/off control for flexible power management. Ideal for portable, mobile, wireless, and industrial applications.

Dimensions: 21.85 mm (L) × 9.6 mm (W) × 11.2 mm (D). Explore more XP Power DC/DC Converters and related power supply solutions at EnvMart for industrial and commercial electronics needs.
