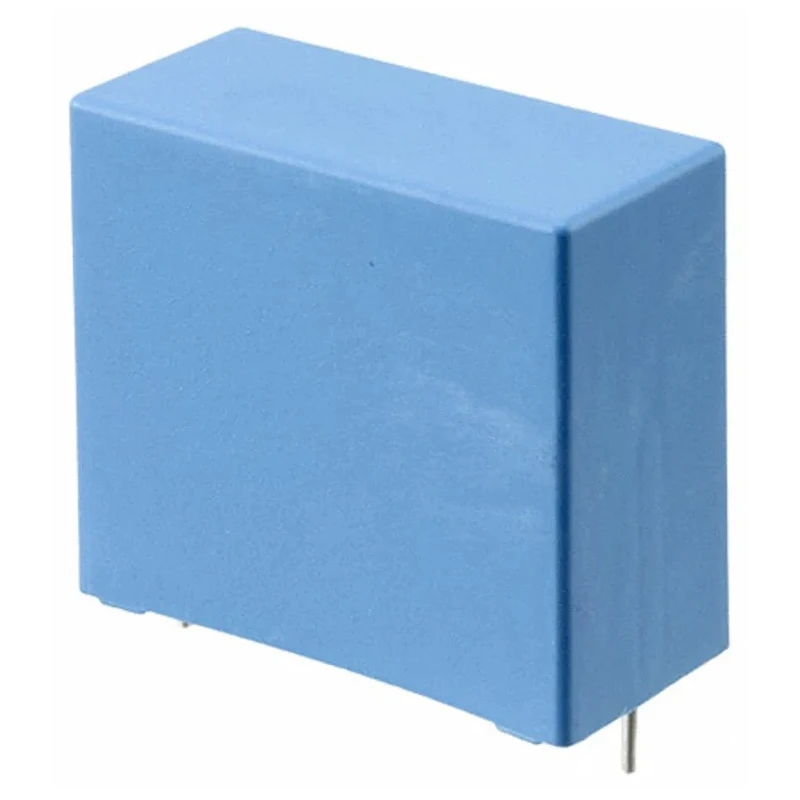

KEMET PHE450 Polypropylene Capacitor, ±5 % Tolerance, 330 nF Capacitance, 630 V DC, 180 V AC, Through Hole Mount PHE450

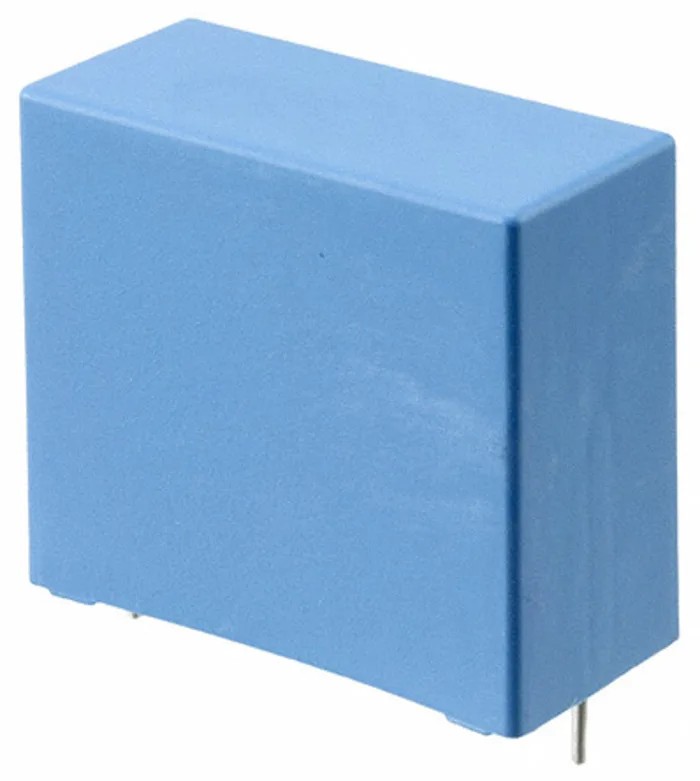

KEMET PHE450 Polypropylene Capacitor PHE450 is a high-performance metallized film capacitor designed for reliable operation in pulse and snubber protection circuits within switch mode power supplies and deflection circuits in televisions. It features a capacitance of 330 nF with a tight tolerance of ±5 % to ensure consistent performance in demanding electronic applications.

This capacitor is rated for a high DC voltage of 630 V and an AC voltage of 180 V, making it suitable for a wide range of power electronics and industrial use cases. The device is constructed with a double metallized polypropylene film encapsulated in a self-extinguishing resin compliant with UL 94 V-0 standards, enhancing safety and durability.

The component uses radial terminals with a lead pitch of 22.5 mm and lead length of 6 mm, facilitating through-hole mounting on PCBs. It operates reliably within a temperature range from -55°C to 105°C, supporting applications exposed to different environmental conditions. The capacitor is RoHS compliant and supplied in tape and reel packaging, aiding automated assembly processes.

The capacitor's physical dimensions measure approximately 26 mm in length, 21.5 mm in height, and 11 mm in width with a lead diameter of 0.8 mm, suitable for compact electronic designs. Its low dissipation factor of 0.0003% ensures high efficiency and low energy loss during operation.

Constructed with double metallized polypropylene film for high reliability. Encapsulated in self-extinguishing resin meeting UL 94 V-0 safety standards. Rated for DC voltage up to 630 V and AC voltage up to 180 V. Capacitance tolerance of ±5 % with options for other tolerances.

Lead pitch of 22.5 mm and radial terminal design for through-hole mounting. Operates in temperatures ranging from -55°C to 105°C. RoHS compliant and supplied in tape and reel packaging. Dimensions approximately 26 mm length x 21.5 mm height x 11 mm width.

Dissipation factor of 0.0003% for low energy loss.

This polypropylene capacitor is ideal for industrial, electronic, and power supply applications requiring pulse and snubber capacitance high tolerance and rated voltage capabilities. It is suitable for use in manufacturing, HVAC systems, laboratory instruments, and commercial electronic equipment.
