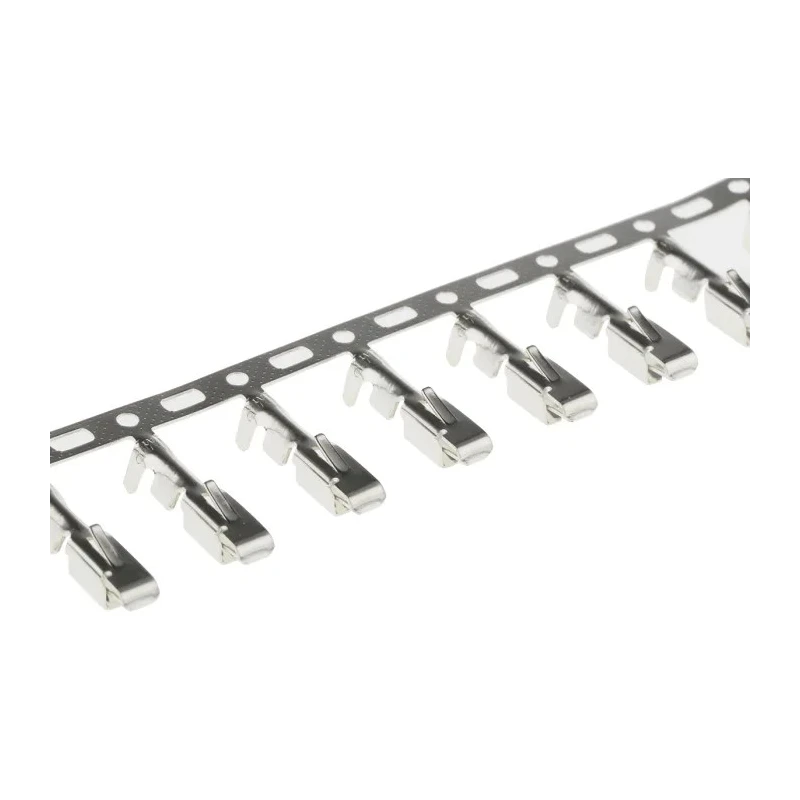

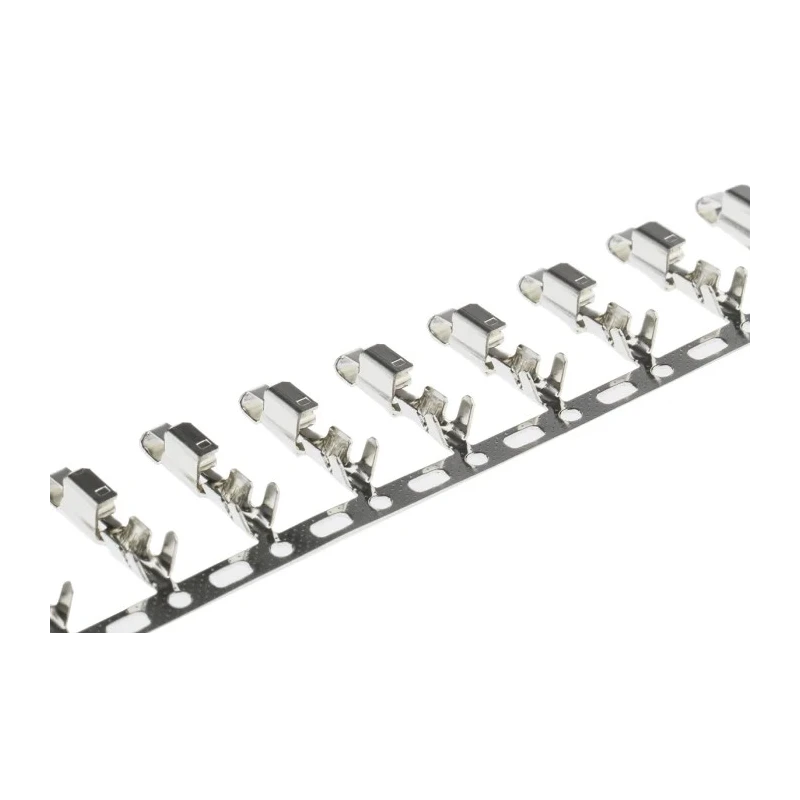

TE Connectivity SL-156 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze 3-770476-1

TE Connectivity 3-770476-1 Female Crimp Terminal is a part of the SL-156 Series, engineered for high-quality electrical connections. This female crimp terminal supports wire sizes from 24 AWG (minimum) up to 18 AWG (maximum) and is rated for a current of 6.5 amperes. Its construction features phosphor bronze contact material for excellent electrical conductivity and mechanical strength, plated with tin to resist corrosion and wear, ensuring long-term reliability in various industrial and commercial applications.

The terminal is designed specifically for use with SL-156 connector housings, providing a precise and secure fit. It utilizes a crimp termination technique to guarantee stable wire retention and electrical continuity, critical in signal or power transmission in electronic assemblies or harnesses.

Operating temperature ranges from -55°C to 105°C, enabling performance in harsh environments including industrial, automotive, manufacturing, and other demanding fields. The maximum contact resistance of 3 milliohms contributes to minimal signal loss and energy efficiency. The compact length of 2.03 mm allows use in space-restricted connector assemblies while maintaining robust connections.

TE Connectivity’s SL-156 Series Female Crimp Terminal offers an essential solution for engineers and technicians needing reliable, corrosion-resistant, and high-performance crimp contacts for electronic and electrical applications.

Constructed with phosphor bronze contact material for durability and conductivity. Contact plated with tin to enhance corrosion resistance. Compatible with SL-156 Connector Housing for precise fit. Current rated at 6.5A supporting a range of wire gauges from 24 AWG to 18 AWG.

Operates reliably within temperature range -55°C to 105°C. Low contact resistance ensures efficient electrical performance. Compact size allows use in tight assemblies.

This product is suitable for use in electronics assembly, automotive wiring, industrial machinery connections, and other fields requiring dependable electrical terminals. Explore TE Connectivity products and other high-quality Crimp Contacts at EnvMart for your component needs.
