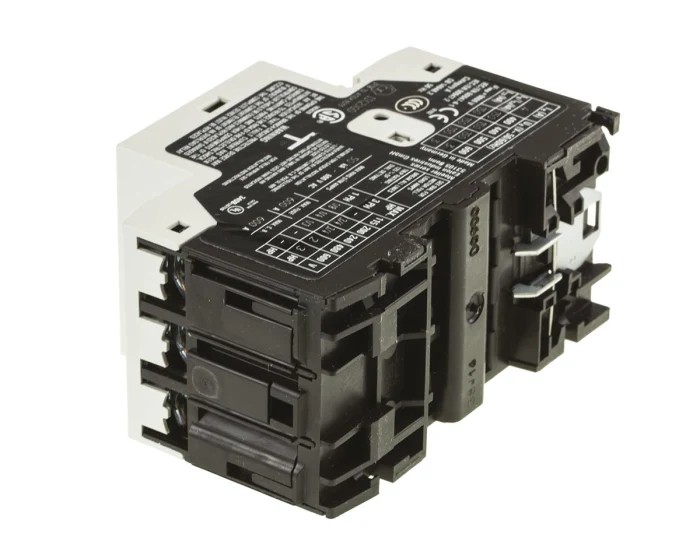

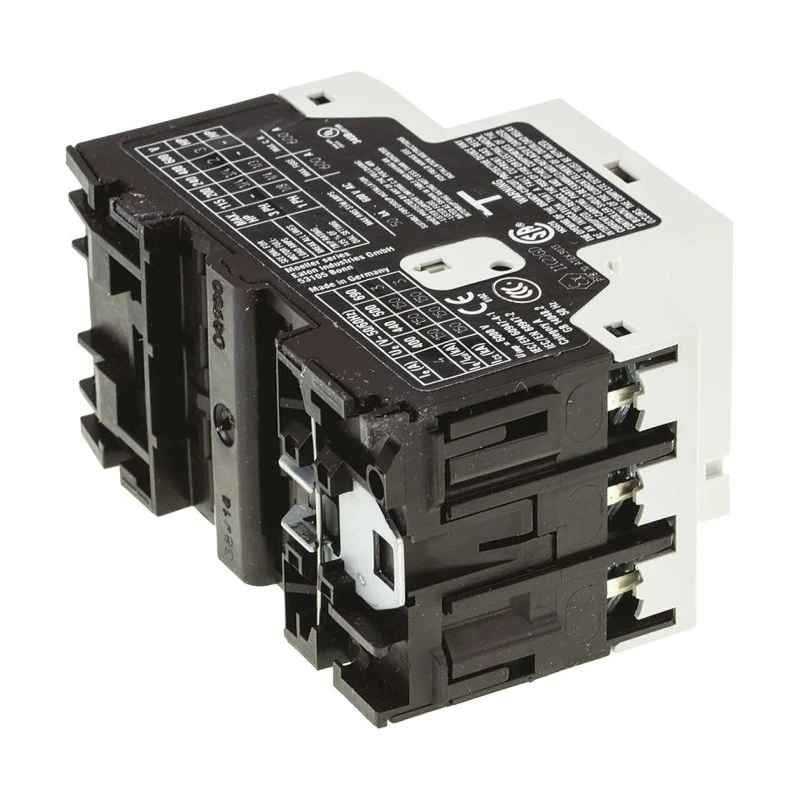

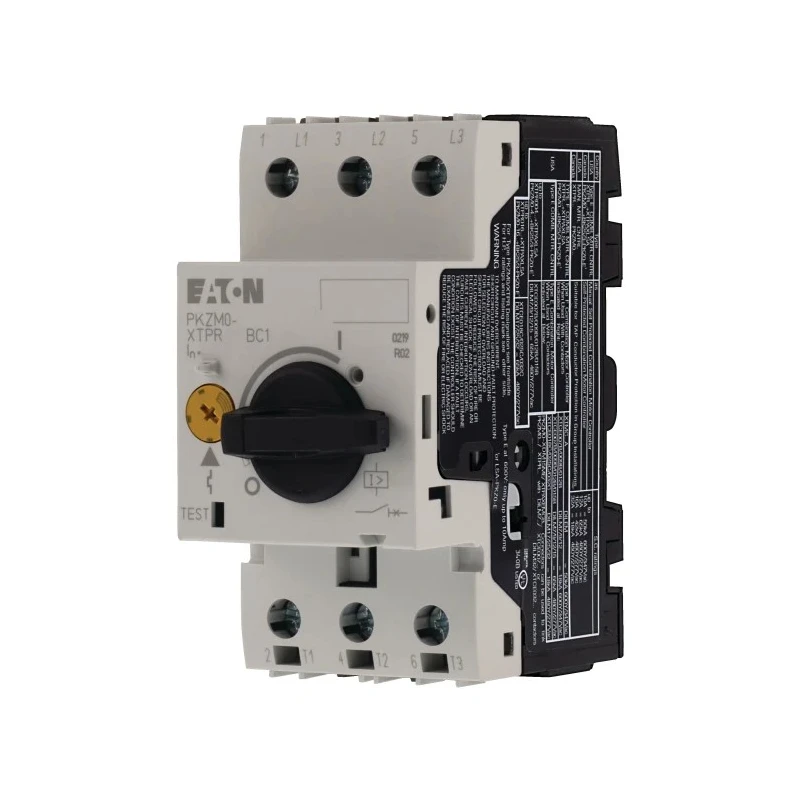

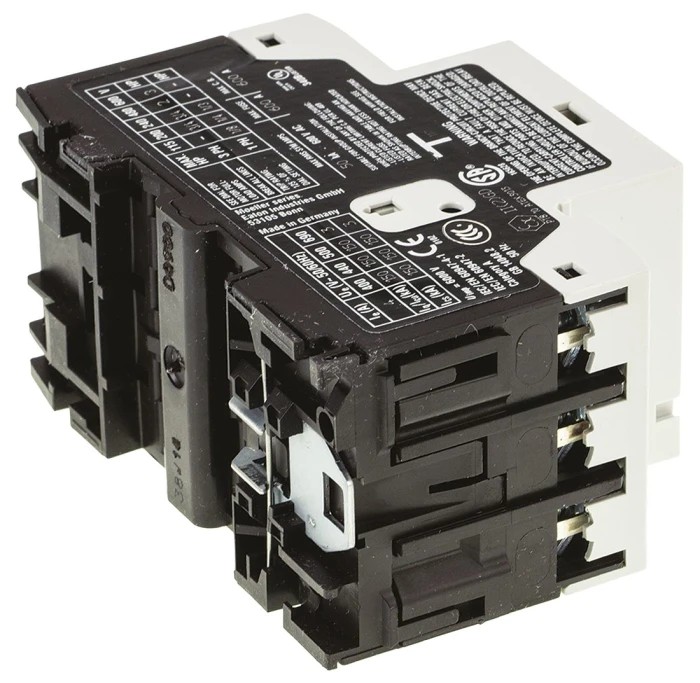

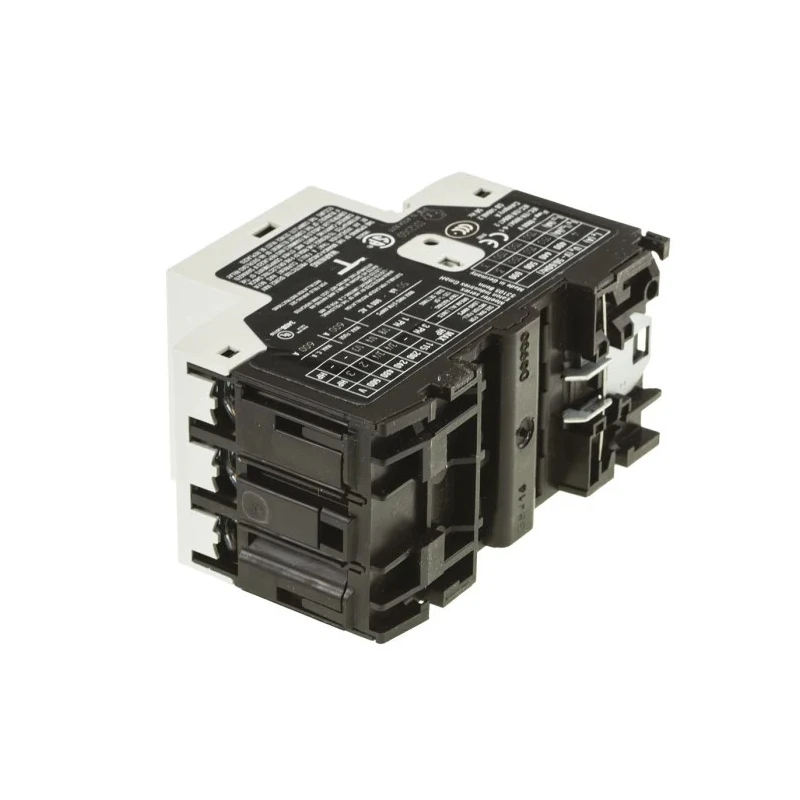

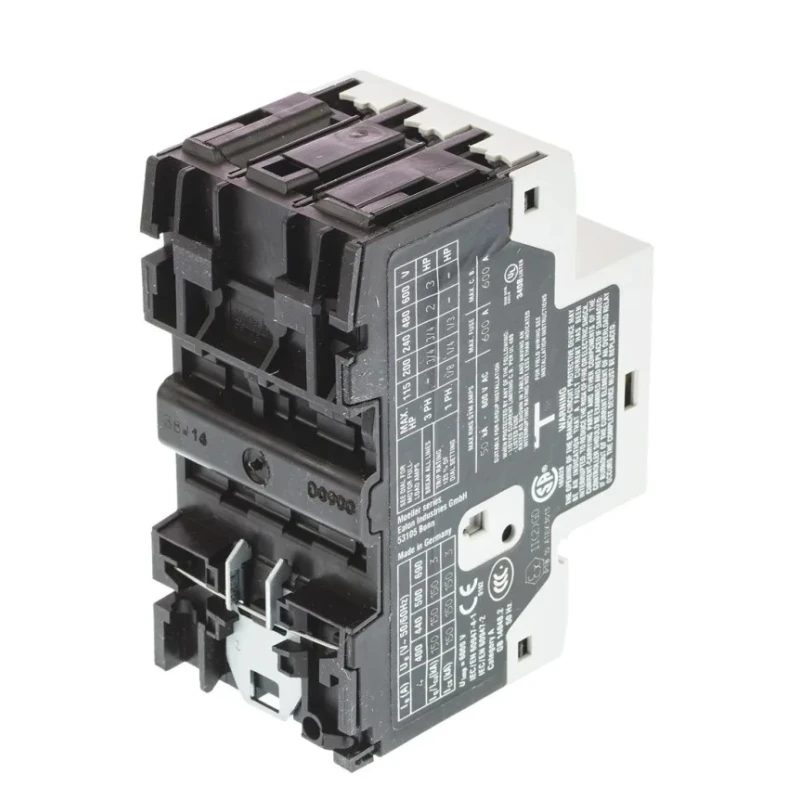

Eaton 4A Motor Protection Circuit Breaker, 690 V AC, 3 Poles, PKZM0-4 072737 PKZM0-4
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 072737 PKZM0-4 |
| IP Rating | IP00, IP20 |
| Overall Length | 76mm |
| Current Rating | 4A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 25°C |
| Sensing type | Current Transformer |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Overall Depth | 93mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Eaton 4 A PKZM0 Motor Protection Circuit Breaker, 690 VBrand | Eaton |
Key Features
- Protects motors from overloads and short circuits to enhance operational safety.
- Equipped with a rotating handle showing clear ON and OFF positions.
- Compact design with dimensions 76 mm length, 45 mm width, and 93 mm depth for space-saving installations.
- Offers operation within a temperature range of 25°C to 40°C for varied working conditions.
- Rated IP20 ingress protection to guard against solid objects larger than 12 mm.
- Designed for three poles compatible with three-phase electrical systems.
- Supports mounting on DIN rails for easy installation and maintenance.
- Compliant with VDE 0660 Part 102, IEC/EN 60947-4-1, and RoHS standards to ensure quality and safety.
Product Description
Eaton 072737 PKZM0-4 Motor Protection Circuit Breaker is a new, high-quality device designed for motor protection in industrial automation and process control applications. Rated for 4A current and a supply voltage of 690 V AC, this breaker efficiently safeguards motors against electrical faults such as overloads, short circuits, and relay shutdowns.
This circuit breaker integrates manual on/off switching with reliable isolator functions and is structured with three poles for optimal use in three-phase systems. Its compact dimensions of 76 mm (length) x 45 mm (width) x 93 mm (depth) make it suitable for installations where space is constrained.
The unit operates effectively within a minimum temperature of 25°C up to a maximum of 40°C. With an ingress protection rating of IP20, it offers resistance against small solid objects exceeding 12 mm, adding a layer of durability and safety in challenging environments.
Mounting on standard DIN rails simplifies installation and enhances maintenance convenience. The breaker complies with key international standards including VDE 0660 Part 102, IEC/EN 60947-4-1, and RoHS, underpinning its compliance with safety and environmental requirements.
Protects motors from overloads and short circuits to enhance operational safety. Equipped with a rotating handle showing clear ON and OFF positions. Compact design with dimensions 76 mm length, 45 mm width, and 93 mm depth for space-saving installations.
Operational temperature range between 25°C and 40°C for varied working environments. Ingress protection rating IP20 safeguards against solid object intrusion larger than 12 mm. Suitable for three-phase electrical systems with 3 poles.
DIN rail mounting for swift and secure installation. Complies with VDE 0660 Part 102, IEC/EN 60947-4-1, and RoHS standards.
This motor protection circuit breaker is ideal for industrial, manufacturing, electrical automation, and HVAC applications. It ensures operational continuity and minimizes downtime by protecting vital motor equipment from electrical faults.
Discover more products in the Motor Protection Circuit Breaker category on EnvMart to find reliable solutions for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 4A.
It operates at a supply voltage of 690 V AC.
This unit is designed with three poles, making it suitable for three-phase electrical systems.
The dimensions are 76 mm in length, 45 mm in width, and 93 mm in depth.
It operates effectively within a temperature range of 25°C to 40°C.
The breaker has an IP20 ingress protection rating, guarding against solid objects larger than 12 mm.
Yes, it supports mounting on standard DIN rails for easy installation and maintenance.
It complies with VDE 0660 Part 102, IEC/EN 60947-4-1, and RoHS standards.
It protects motors from overloads and short circuits, enhancing operational safety.
It utilizes a current transformer as the sensing type.
The country of origin for this product is Germany.
This model is part of the PKZM 0 series.
