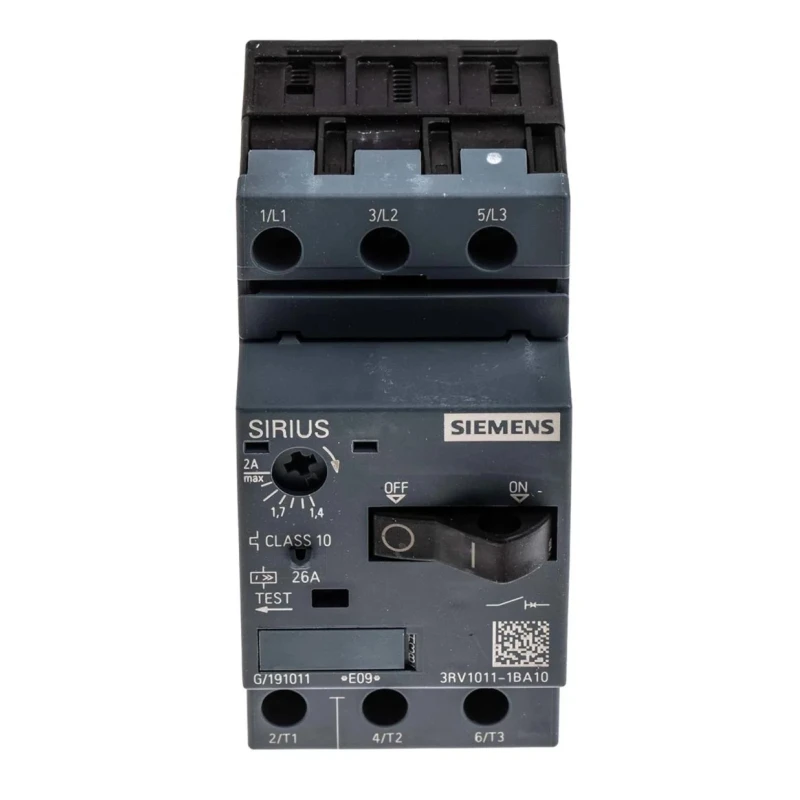

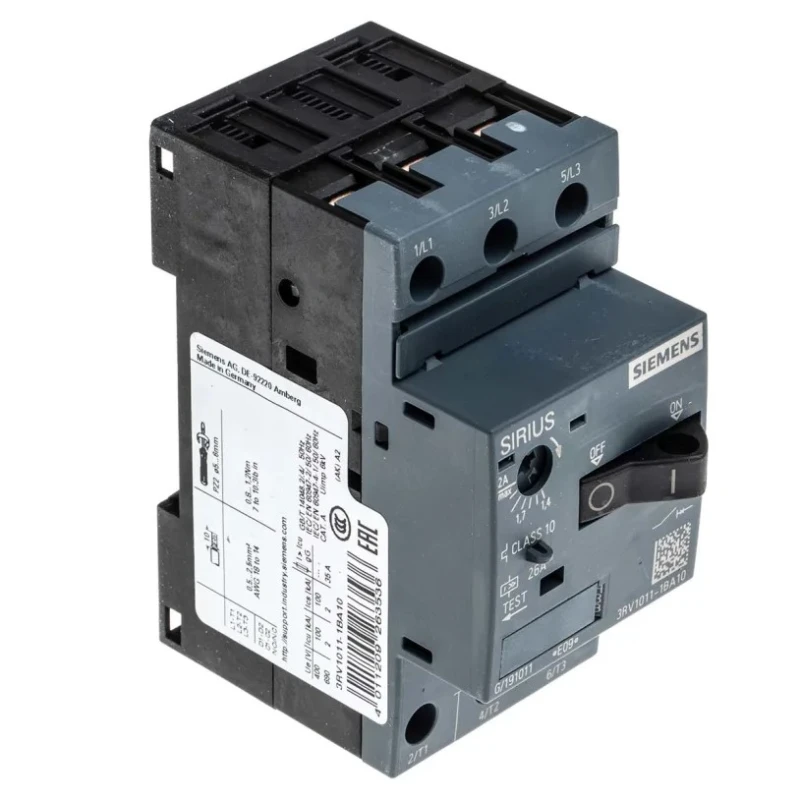

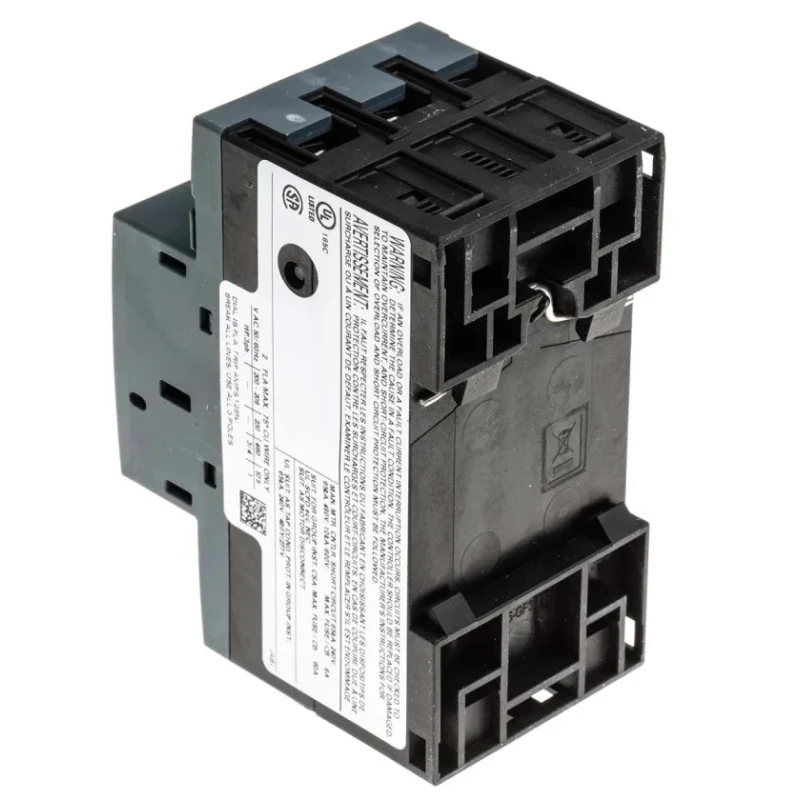

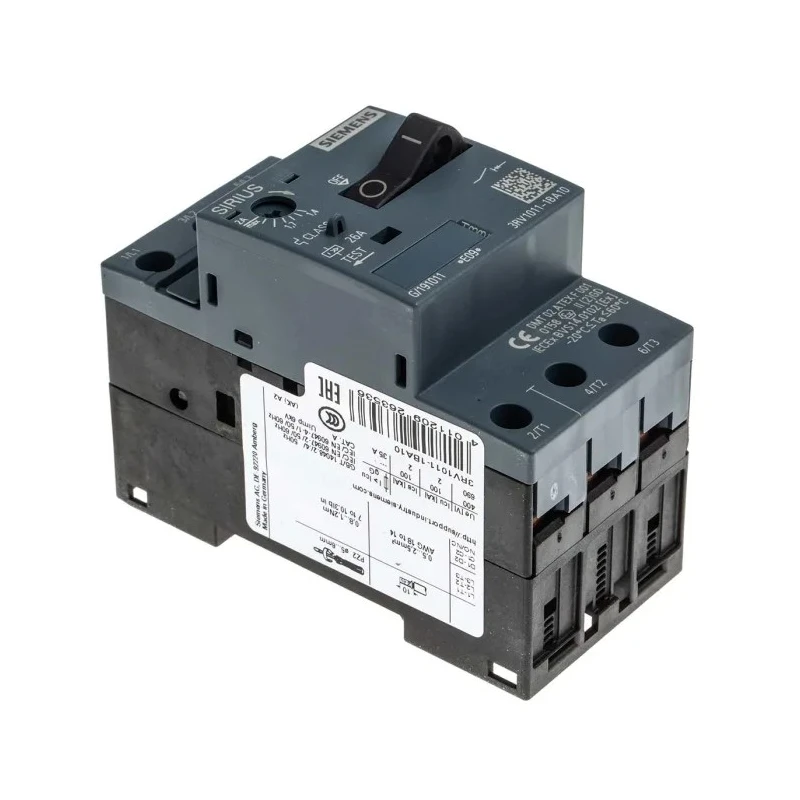

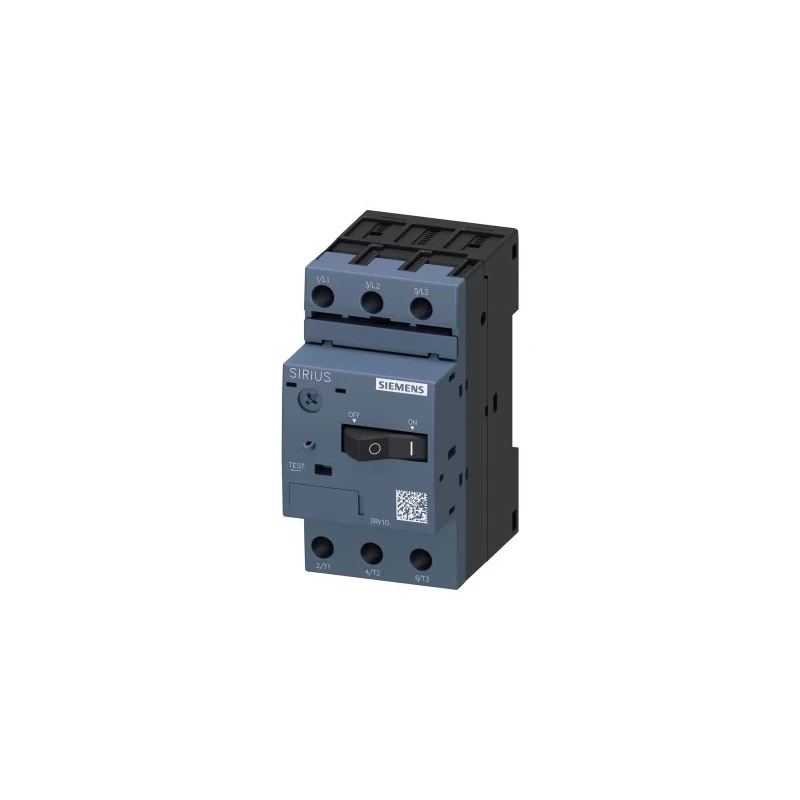

Siemens Motor Protection Circuit Breaker 1.4A, 2 A, 690V, 3 Poles, IP20, -20°C to 60°C 3RV1011-1BA10
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV1011-1BA10 |
| IP Rating | IP20 |
| Overall Length | 90mm |
| Current Rating | 1.4, 2A |
| Series | 3RV1 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0990, UL, UKCA, IEC 947, EN60947, CSA |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Siemens 2 A SIRIUS Motor Protection Circuit Breaker, 400 VBrand | Siemens |
Key Features
- Designed for motor protection with a current sensing type for precise fault detection.
- Wide operating temperature range from -20 degrees Celsius to 60 degrees Celsius for demanding environments.
- Compact dimensions of 90mm height, 45mm width, and 75mm depth suitable for tight installation spaces.
- Complies with international standards including VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA for assured safety and performance.
- Features built-in short circuit protection to enhance electrical safety of motor circuits.
- Mounts easily on DIN rails with screw and snap-on mounting options allowing flexible installation positions.
- Withstands surge voltages up to 6kV ensuring durability under transient electrical conditions.
- Ideal for use with emergency stop switches, generators, transformers, and industrial motor protection applications.
Product Description
Siemens 3RV1011-1BA10 Motor Protection Circuit Breaker provides reliable motor safeguarding with a current rating between 1.4A and 2A at a maximum supply voltage of 690V AC. It features a 3-pole configuration and an IP20 ingress protection rating.
This device operates effectively within wide temperature conditions ranging from -20 degrees Celsius up to 60 degrees Celsius, making it suitable for harsh and demanding industrial environments.
The compact form factor with dimensions of 90 mm height, 45 mm width, and 75 mm depth allows for installation in limited space electrical panels. Screw terminals ensure secure conductor attachment, preventing accidental disconnections.
Certified conforming to VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA standards, this MPCB assures compliance and safety in various international markets. Equipped with a robust 6kV surge voltage resistance rating, it withstands transient electrical spikes, providing durable protection for your motor circuits.
The circuit breaker incorporates short circuit protection, cutting power swiftly upon fault detection. It is engineered for mounting on DIN rails with screw and snap-on methods, allowing easy and adaptable installation in any orientation.
Precise motor protection with current sensing technology. Wide operating temperature range of -20°C to 60°C. Compact size fitting in limited panel spaces. Compliant with multiple international safety standards. High surge voltage resistance of 6kV.
Reliable short circuit protection for enhanced safety. Flexible mounting options on DIN rails. Suitable for industrial motor control and emergency stop applications.
This Siemens Motor Protection Circuit Breaker is suited for industrial, manufacturing, automation, HVAC, and electrical control systems. Its compact design and robust specifications make it an essential device to safeguard motors against damage and faults.
Explore the Siemens range of motor protection devices and ensure reliable, safe operation of your electric motors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3RV1011-1BA10 has a current rating of 1.4A to 2A.
This model operates at a maximum supply voltage of 690V AC.
The circuit breaker has an IP20 ingress protection rating, suitable for indoor use.
The dimensions of the Siemens 3RV1011-1BA10 are 90mm in height, 45mm in width, and 75mm in depth.
It operates effectively within a temperature range of -20°C to 60°C.
This model can be mounted on DIN rails using screw and snap-on methods, allowing flexible installation positions.
It complies with several international standards including VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA.
It features built-in short circuit protection to enhance the electrical safety of motor circuits.
This circuit breaker can withstand surge voltages up to 6kV, ensuring durability under transient electrical conditions.
It is ideal for use in industrial motor protection applications, emergency stop switches, generators, and transformers.
The Siemens 3RV1011-1BA10 uses a current sensing type for precise fault detection.
The country of origin for this motor protection circuit breaker is Germany.
