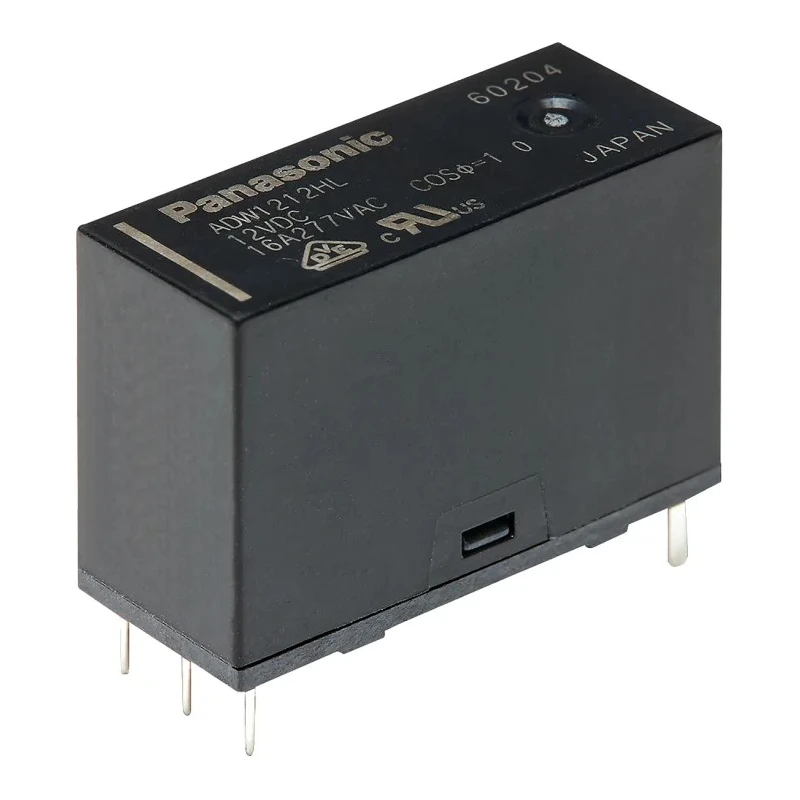

Panasonic PCB Power Relay 12V DC Coil 16A Switching Current SPST ADW1212HLW

Panasonic ADW1212HLW PCB Power Relay offers a 12V DC coil voltage with a high switching current of 16A in an SPST contact configuration, designed for PCB mounting applications. This relay is part of the DW (ADW1) series, characterized by its compact size, high operating power, and robustness under demanding conditions.

Engineered to function reliably across a wide temperature range from -40°C to 70°C, it features a coil resistance of 360Ω and coil power consumption of 400mW, maintaining energy efficiency during operation. The relay contacts are made from silver alloy ensuring low contact resistance of 100mΩ for highly efficient current switching up to 16A, with switching AC voltage supported up to 277V AC.

With dimensions of 24mm in length, 10mm in width, and 15.8mm in height, this PCB-mounted relay is compact and space-saving while meeting rigorous safety and quality standards including VDE, UL, TV-8, PTI 325V, cULus, cUL, and CSA certifications.

This relay is suitable for a variety of applications such as appliance control, lighting systems, energy management, industrial automation, and smart metering. It offers robust performance in appliances like refrigerators and washing machines as well as industrial and energy sector equipment.

Compact PCB mount power relay ideal for industrial and appliance use. Coil voltage rated at 12V DC ensuring compatibility with low voltage controls. Switching current capacity of 16A supports robust load handling. Contact material made of silver alloy for improved conductivity and durability.

Operating temperature range from -40°C to 70°C for reliable performance under diverse conditions. Coil power consumption of 400mW optimizes energy use during activation. Switching AC voltage rated up to 277V AC suitable for various electrical loads.

Dimensions: Length 24mm, Width 10mm, Height 15.8mm for compact footprint. Standards and approvals include VDE, UL, TV-8, PTI 325V, cULus, cUL, CSA ensuring safety and quality compliance.

Used extensively in electrical, automation, and signal conditioning systems, this Panasonic power relay is a reliable component choice for demanding technical environments. Browse other Power Relays and related components to find complementary options within electrical and industrial automation categories.
