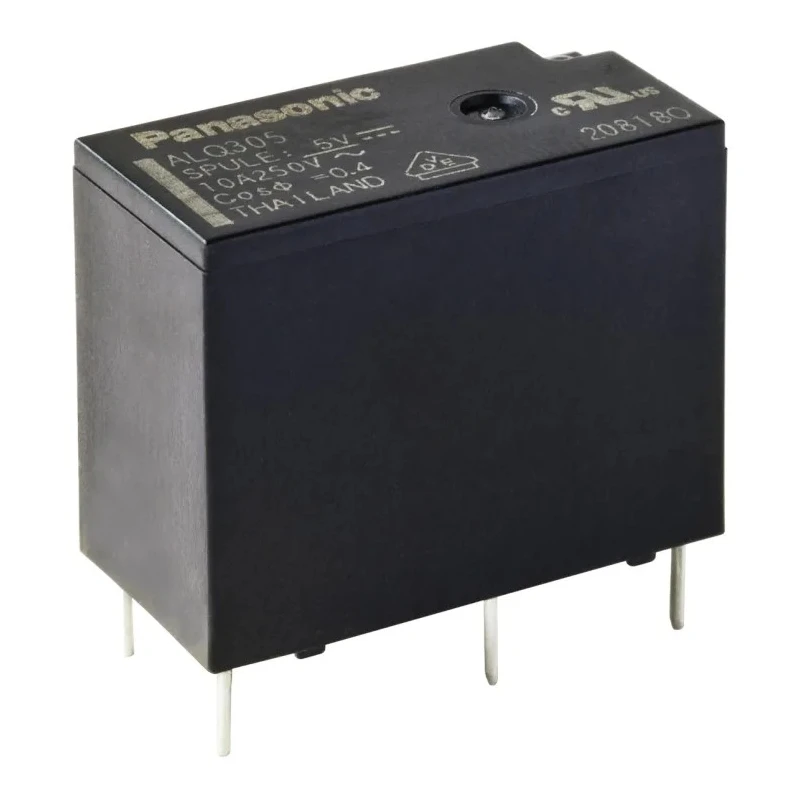

Panasonic PCB Power Relay 5V dc Coil 10A Switching Current SPDT ALQ1F05

Panasonic ALQ1F05 PCB Power Relay is a high-performance relay designed for printed circuit board mounting. It operates with a coil voltage of 5V dc and features a single-pole double-throw (SPDT) contact configuration capable of switching currents up to 10A. This relay is compact with dimensions 20mm length, 15.6mm height, and 10mm width, making it suitable for dense electronic assemblies.

The PCB Power Relay supports switching power of up to 500VA AC and 30V dc, delivering reliable performance in demanding industrial and commercial applications. It operates efficiently with a low coil power consumption of 400mW and coil resistance of 62.5 ohms.

Designed to withstand harsh environments, the relay functions reliably in ambient temperatures ranging from -40°C to +85°C. Its silver alloy contacts ensure excellent conductivity with a contact resistance of 100mΩ, and are rated for high surge voltage up to 8000V and breakdown voltage of 4000V, enhancing durability and safety.

This product meets key international standards including VDE, UL, cULus, cUL, CSA, and CQC, making it suitable for use in appliances, white goods, lighting, industrial equipment, robot automation, and power supply systems. Applications include refrigerators, cooking ovens, washing machines, air conditioners, motor control modules, and robotic equipment.

Manufactured in Thailand, the Panasonic ALQ1F05 relay combines robustness with compact design, making it an essential component for reliable electronic switch control in industrial and commercial settings.

Compact size ideal for PCB mounting applications. Supports a switching power up to 500VA for AC and up to 30V dc for DC. Operates reliably within ambient temperatures from -40°C to +85°C. Contains silver alloy contacts with a contact resistance of 100mΩ.

High surge voltage tolerance up to 8000V and a breakdown voltage of 4000V. Low coil power consumption at 400mW ensures energy efficiency. Complies with VDE, UL, cULus, cUL, CSA, and CQC standards. Ideal for use in appliances, motor control, air conditioners, robotic systems, and power supply units.

Manufactured in Thailand ensuring consistent quality and reliability. Explore the comprehensive range of Panasonic relays and related products on EnvMart for your electronics projects and industrial requirements.
