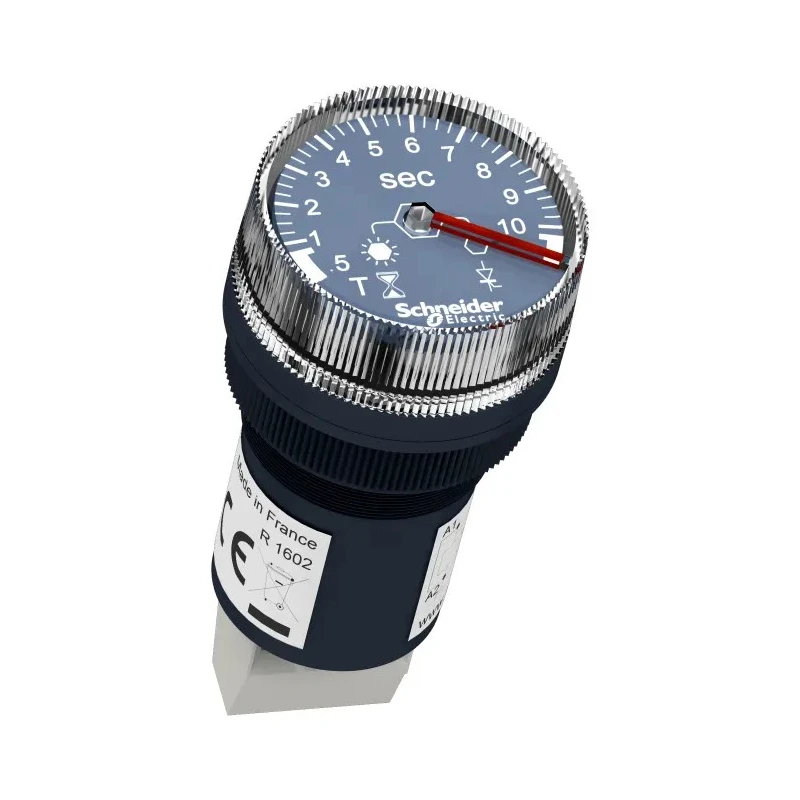

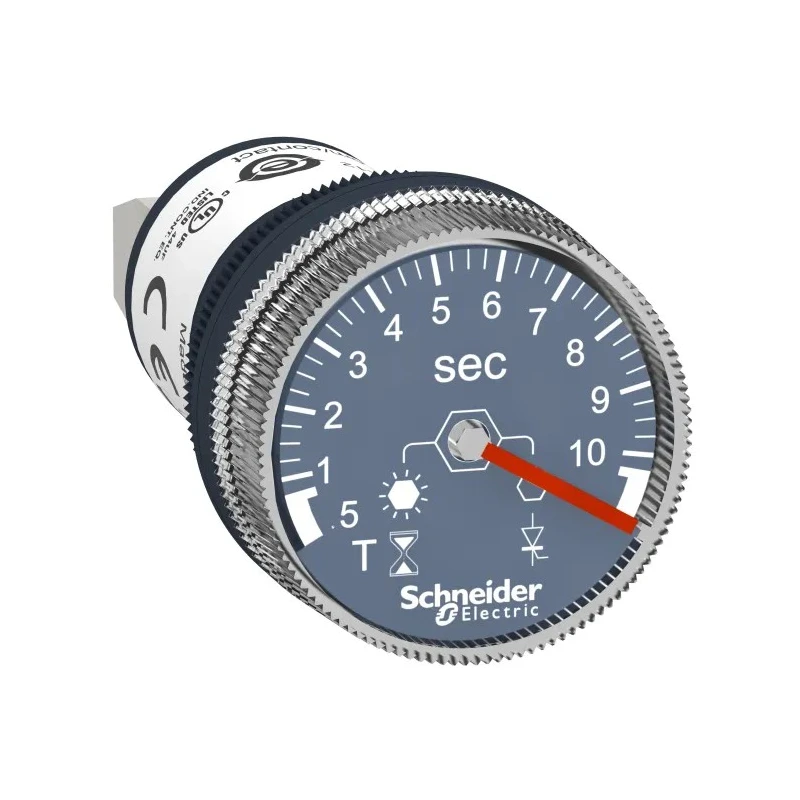

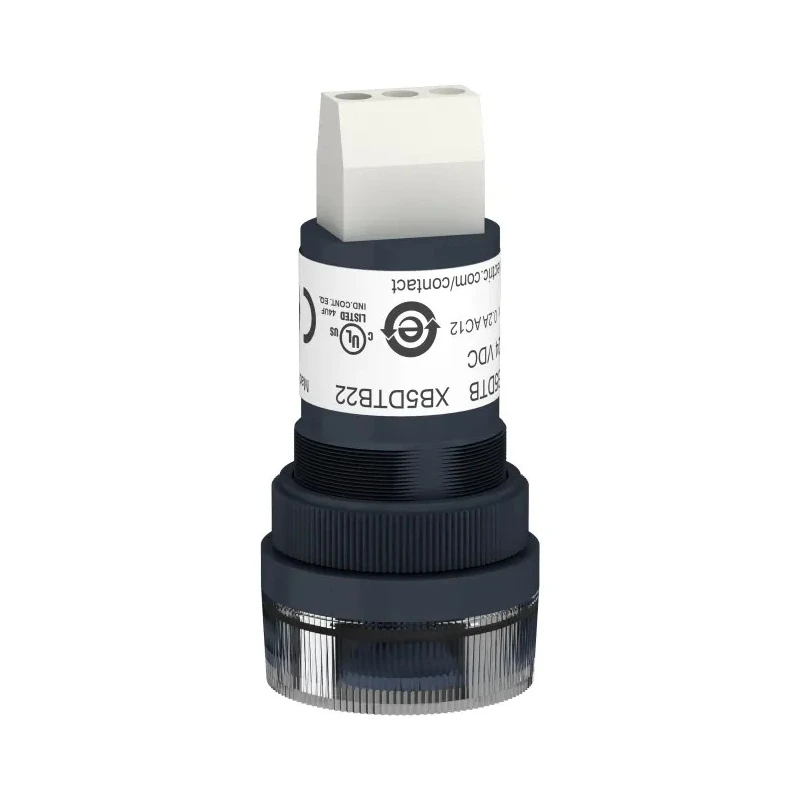

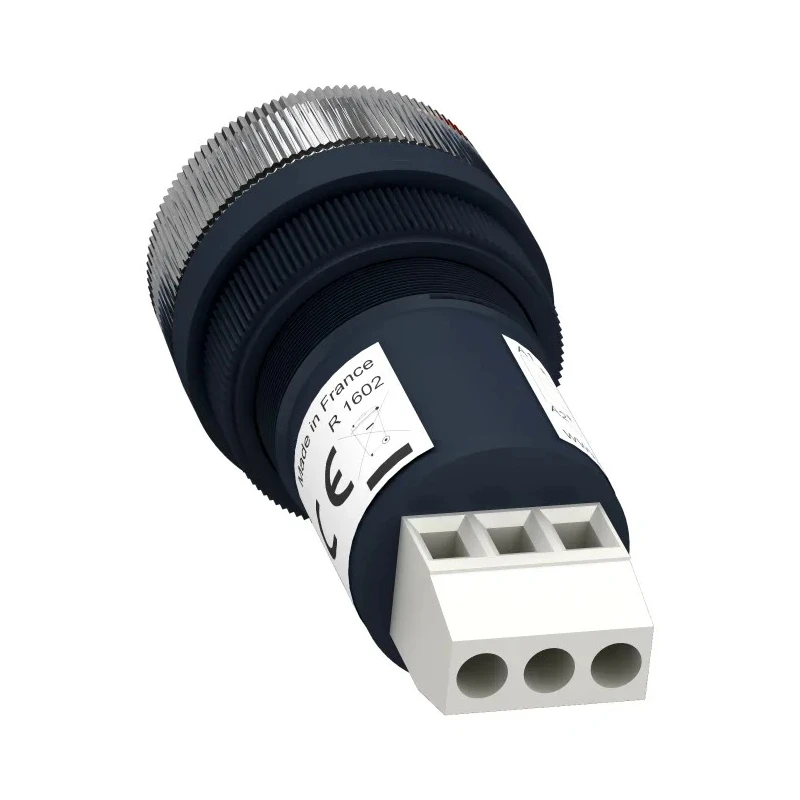

Schneider Electric Timer Relay Panel Mount IP65/ IP20, 100 to 240 V dc, 110/230 V ac, 0.5 to 10 s Time Range XB5DTGM2

Schneider Electric XB5DTGM2 timer relay from the Harmony XB5 series is a panel-mounted device designed for reliable timing control in industrial and electrical automation applications. It operates at a wide voltage range, accommodating 100 to 240 V dc and 110/230 V ac supplies, making it compatible with diverse power systems.

The relay supports a time delay range of 0.5 to 10 seconds with one timer function, suitable for tasks requiring precise control of machine processes such as conveyor belts, HVAC systems, and safety control circuits. Its offset double ring end function offers accurate and efficient timing capabilities.

This timer relay features IP65 and IP20 ingress protection, safeguarding against dust and low-pressure water jets, allowing deployment in challenging industrial environments. The screw-type terminal clamps ensure secure wiring connections, and its compact dimension (62 mm height, 62 mm length, 90 mm width) fits standard 22 mm cutouts for panel mounting.

A green LED indicator clearly signals when the timer is energized for easy status monitoring during operation. The product complies with key safety and performance standards including UL Listed, EN/IEC 61812-1, UL 508, and CE certifications.

With a robust build designed for vibration, impact, and dust resistance, this timer relay supports improved machine control and process automation across industrial, manufacturing, and HVAC sectors. It is a Better World product from Schneider Electric, featuring repairable components to extend product life and reduce waste.

This timer relay is designed for panel mounting with standard 22 mm cutout compatibility. The device features a green LED to indicate timer energization status. Suitable applications include conveyor belts, HVAC systems, and safety control circuits.

The product supports a wide operating voltage range to accommodate various power supplies. Supports industrial environments with enhanced dust and water resistance. Complies with international safety and performance standards.
