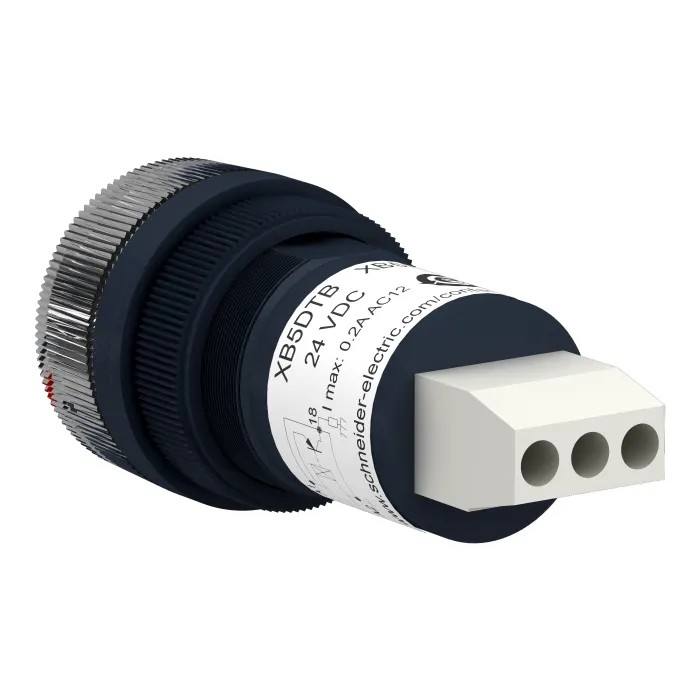

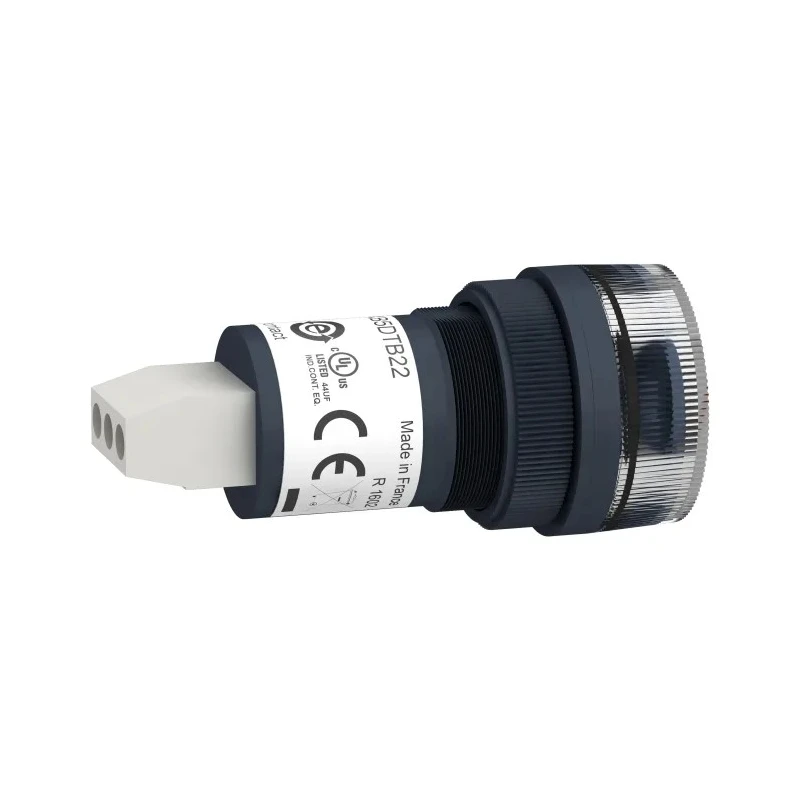

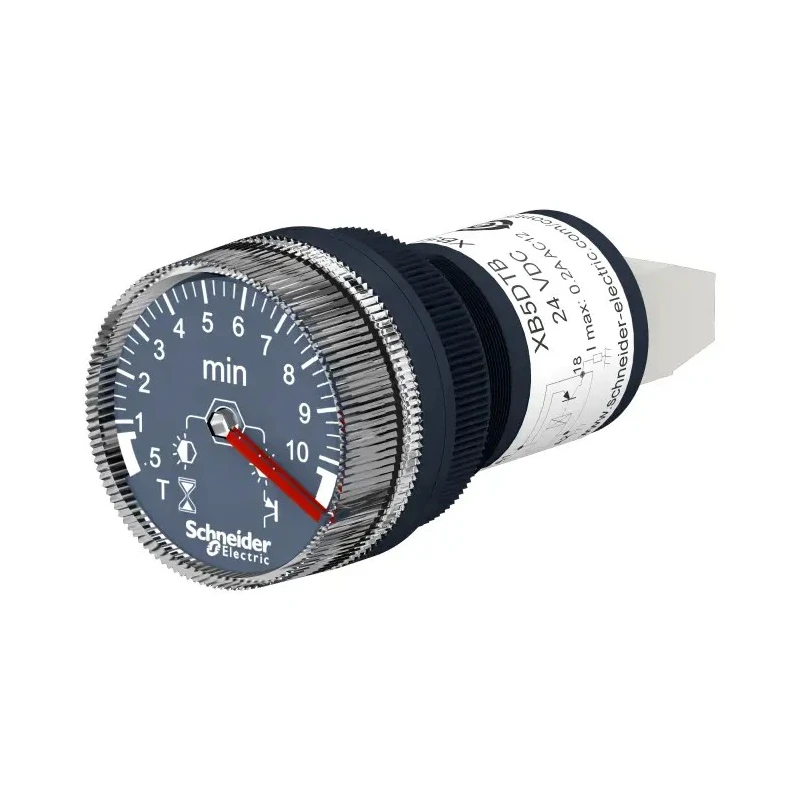

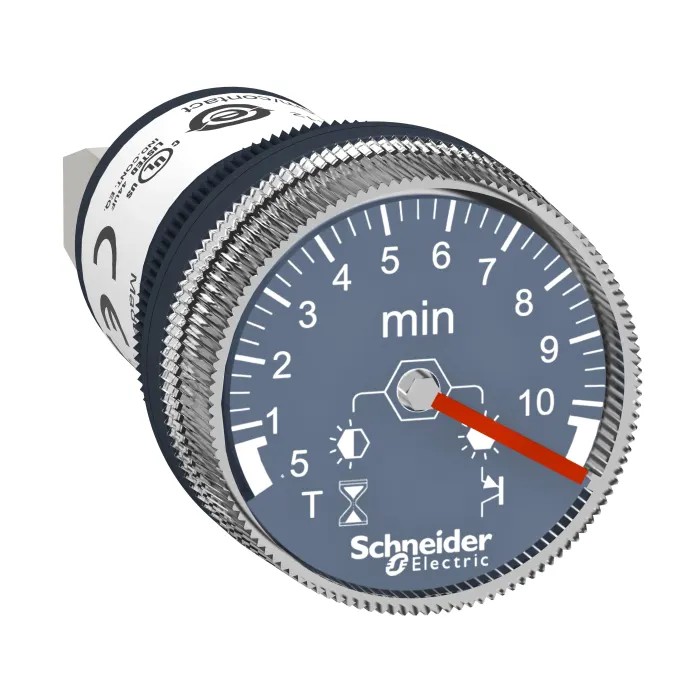

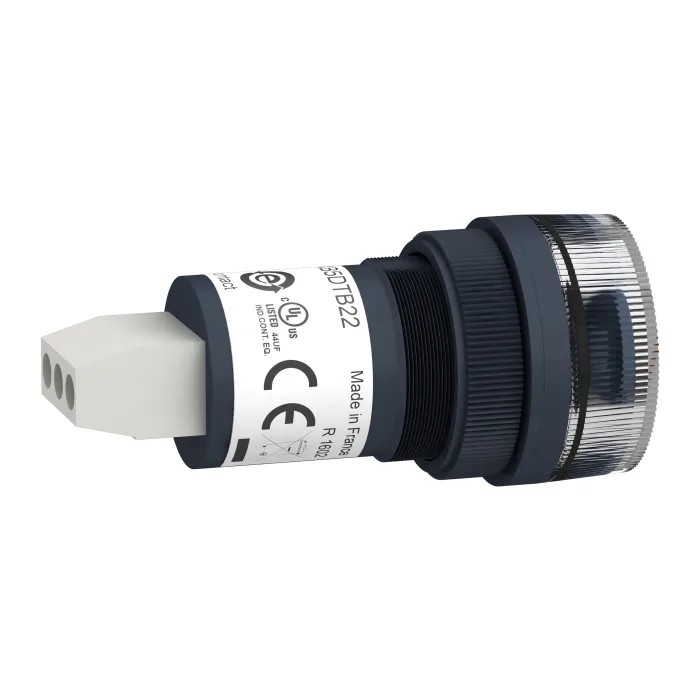

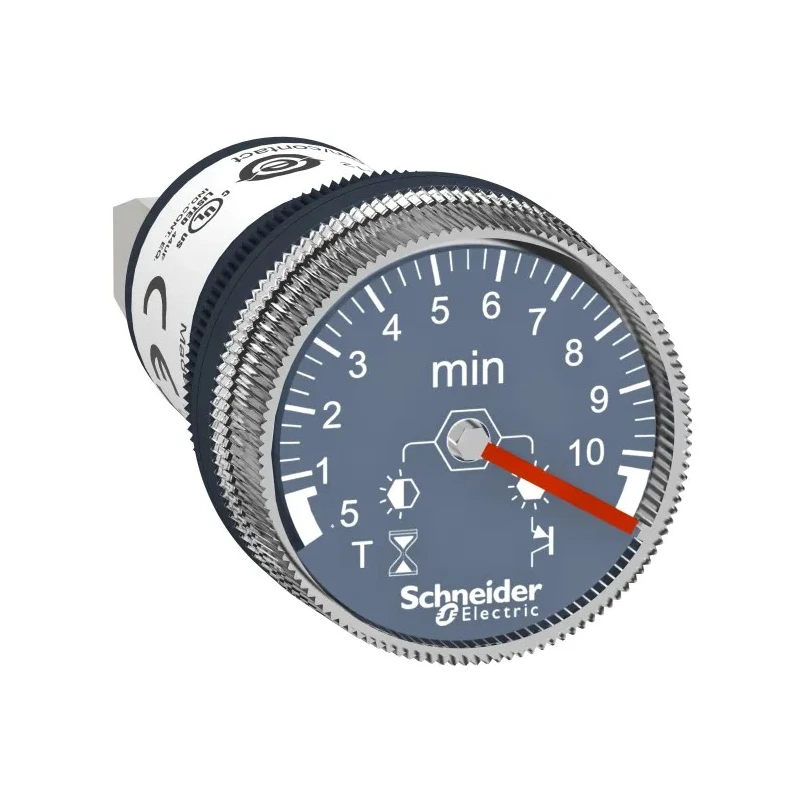

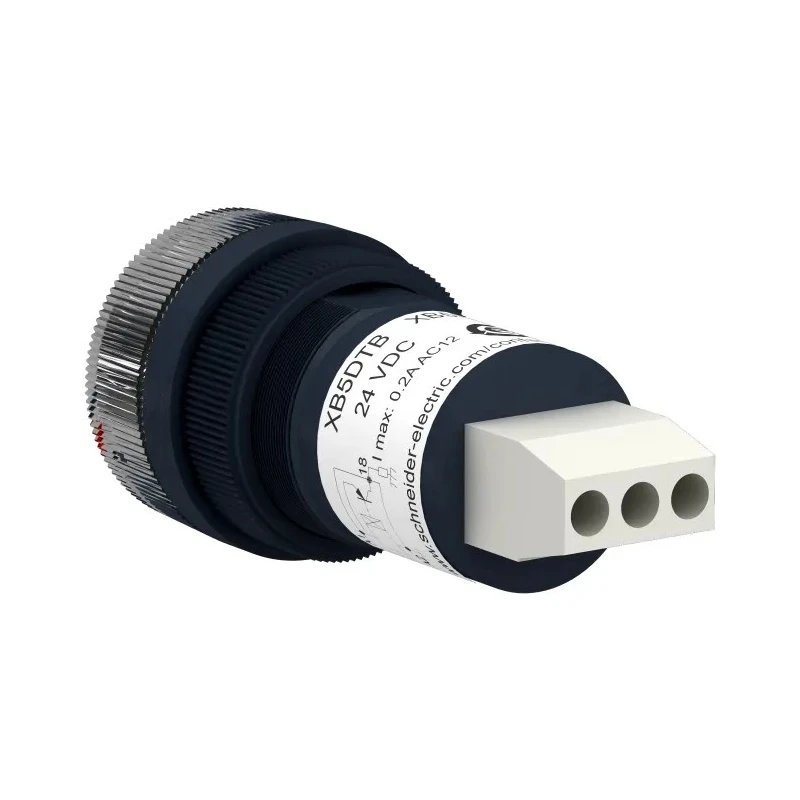

Schneider Electric Harmony XB5 Series Panel Timer Relay, 24 V dc 24V ac, 0.5 to 10 min, 1-Function XB5DTB24

Schneider Electric XB5DTB24 Harmony XB5 Series Panel Timer Relay offers high reliability and precision timing for various industrial and automation applications. Operating with a supply voltage of 24 V dc or 24 V ac, it provides a configurable timing range from 0.5 to 10 minutes with a single timer function, making it ideal for delay control processes.

The device features a compact panel mount form factor with a 22.5 mm mounting hole, allowing easy integration into control panels. It includes a clear LED indicator to monitor the timing cycle and status clearly, improving operational transparency in electrical systems.

Designed to operate within a robust temperature range of -20°C to 60°C, the relay ensures consistent performance even in harsh industrial environments. Its screw terminal connections provide secure and reliable wiring options, facilitating maintenance and installation.

This timer relay conforms to major standards such as EN/IEC 61812-1, UL 508, UL Listed, and CE certification, guaranteeing compliance and safety. Its IP20 and IP65 protection ratings provide resistance against dust and water ingress, enhancing durability and lifespan in challenging environments.

The Harmony XB5 series is recognized for its repairability by the end user, promoting sustainability and reducing downtime. Its compact dimensions of 62 mm length, 62 mm height, and 32 mm width make it suitable for a wide range of industrial, manufacturing, commercial, and HVAC applications.

Compact panel mount design with 22.5 mm mounting hole for easy installation. LED indicator to visually track operation and timing status. Dual supply voltage compatibility: 24 V dc and 24 V ac. Wide operating temperature range from -20°C to 60°C for environmental resilience.

Standards compliance including EN/IEC 61812-1, UL Listed, UL 508, and CE ensuring safety and quality. IP20 and IP65 ratings for dust and water protection. Screw terminal type for secure connections. Repairable by the end user, supporting sustainable practices.

Ideal for use in industrial, manufacturing, HVAC, and electrical panel control systems. Compact dimensions provide space-saving installation solutions.

This Schneider Electric timer relay is an excellent choice for systems requiring accurate time delay functions and robust panel mounting options. Explore the broader range of panel Timer Relays by Schneider Electric and find compatible automation components at EnvMart.
