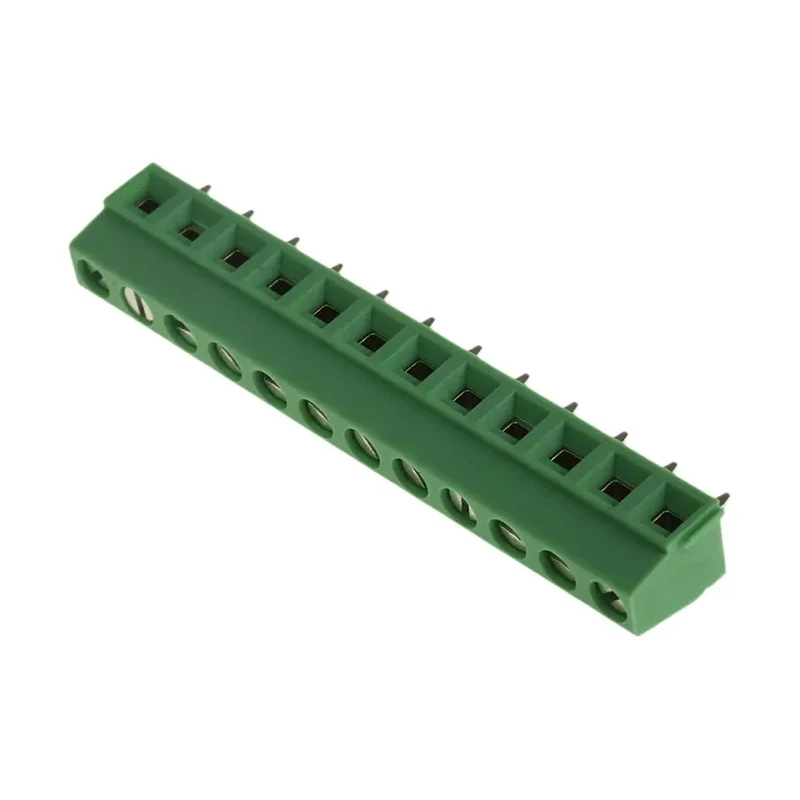

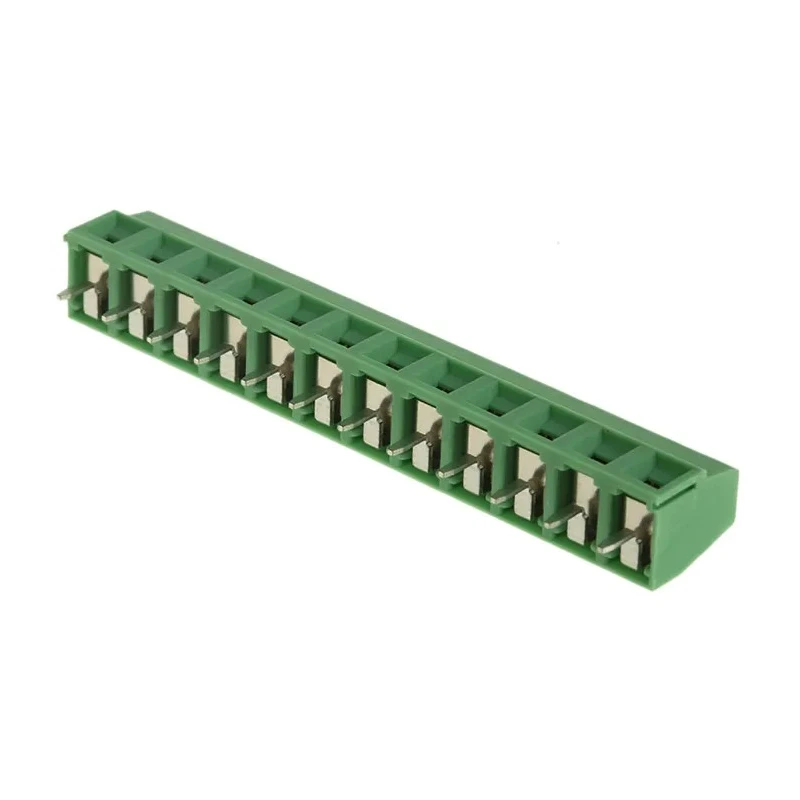

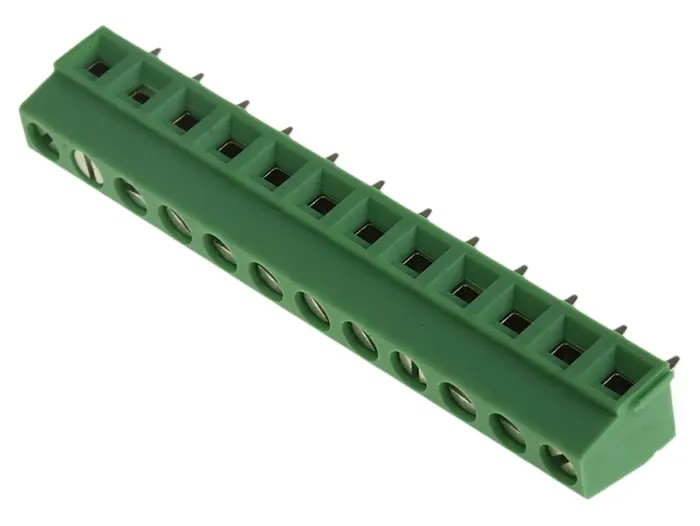

Phoenix Contact MKDSN 1.5/12-5.08 Series Straight PCB Terminal Block 12 Contacts 5.08 mm Pitch 400V 13.5A 1 Row 1729225

Phoenix Contact 1729225 MKDSN 1.5/12-5.08 Series Straight PCB Terminal Block features a 5.08 mm pitch and is constructed with a robust polyamide housing and copper contacts. This 12-contact, single-row terminal block supports up to 400 V and a nominal current of 13.5 A, making it suitable for industrial and electronic PCB assemblies that require dependable connections.

The terminal block's design allows for through-hole mounting and wave soldering on printed circuit boards, ensuring mechanical stability and electrical reliability. Protective guides are integrated to prevent incorrect conductor insertion under the tension sleeve, enhancing safety during installation.

Wiring is simplified by stripping 8 mm of insulation from the conductor, followed by securing with M3 screws, providing a secure and long-lasting connection suitable for manufacturing and maintenance operations.

Manufactured in Germany, the MKDSN terminal block complies with high-quality production standards. It is widely used across applications in industrial automation, power distribution, and electronic circuit design where stable and safe connectivity is essential.

Suitable for through-hole PCB mounting with straight orientation. Polyamide housing provides durability and electrical insulation. 12 contact points for extensive connectivity. Supports nominal current of 13.5 A at 400 V voltage rating.

Protective conductor guides prevent incorrect insertion. 5.08 mm pitch increases voltage withstand capacity. Easy and reliable wire connection with M3 screw terminals. Ideal for industrial, laboratory, and electronic manufacturing uses.
