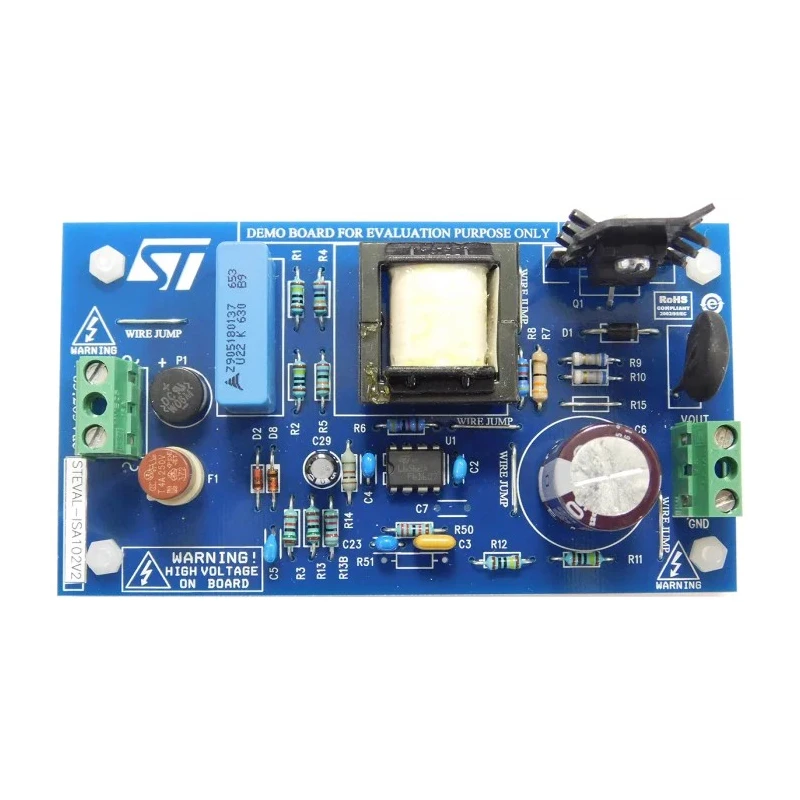

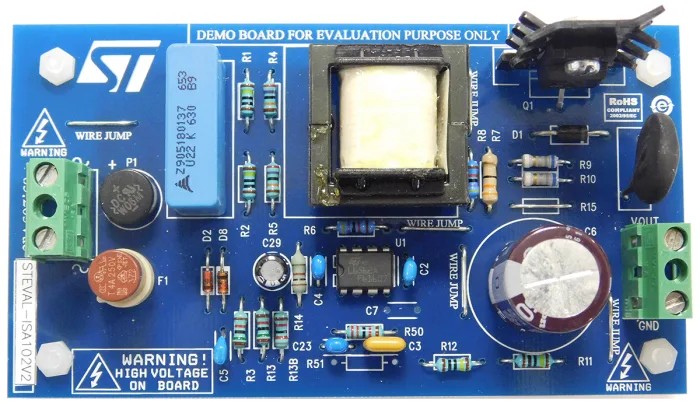

STMicroelectronics Evaluation Board PFC Controller for L6562A 80W Wide-Range Mains Input STEVAL-ISA102V2
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA102V2 |
| Maximum Ambient Temperature | 50°C |
| For Use With | PFC Controller |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L6562A |
| Kit Name | Evaluation Board |
| Rated Output Power | 80 W |
| Minimum switching frequency | 35 kHz |
| Regulated output voltage | 400 V |
| Line voltage range | 88 to 265 V ac |
| Maximum output voltage ripple | 10 V p-p |
| Hold-up time | 20 ms |
| Minimum estimated efficiency | 92% |
Key Features
- Operates in Transition Mode for improved efficiency.
- Supports line voltage range from 88 to 265 V ac.
- Regulated output voltage rating of 400 V.
- Rated output power capacity of 80 W for robust applications.
- Maximum output voltage ripple limited to 10 V peak-to-peak.
- Hold-up time of 20 milliseconds for stable power delivery.
- Minimum switching frequency set at 35 kHz.
- Designed to function reliably up to 50°C ambient temperature.
Product Description
STMicroelectronics STEVAL-ISA102V2 evaluation board integrates a current-mode PFC controller with L6562A device, providing an 80 W power factor correction solution for electronic lighting and adapter power supplies. The board operates in Transition Mode, enhancing efficiency across a broad mains voltage range from 88 to 265 V ac. It delivers a regulated output voltage of 400 V with maximum output ripple of 10 V peak-to-peak, ensuring stable and reliable power delivery for demanding industrial and commercial applications.
This evaluation board is engineered for use in a variety of industrial, commercial, and development environments, including power, motor, and robotics development tools. Its compact design (108 x 57 mm) and single-sided PCB with 35 μm copper thickness make it easy to integrate into development systems and prototypes where power quality and efficiency are critical.
The L6562A featured device enables a hold-up time of 20 ms and operates at a minimum switching frequency of 35 kHz, optimized for a minimum estimated efficiency of 92%. The maximum ambient operating temperature is 50°C, supporting deployment in varied environmental conditions.
Key technical advantages include adherence to RoHS standards and suitability for power factor correction applications requiring stable, efficient power conditioning. This evaluation board aids engineers and developers in rapid prototyping and testing of PFC controllers for power electronics projects.
Operates in Transition Mode for improved efficiency. Supports line voltage range from 88 to 265 V ac. Regulated output voltage rating of 400 V. Rated output power capacity of 80 W for robust applications. Maximum output voltage ripple limited to 10 V peak-to-peak.
Hold-up time of 20 milliseconds for stable power delivery. Minimum switching frequency set at 35 kHz. Designed to function reliably up to 50°C ambient temperature. Single-sided PCB with 35 μm copper thickness ensures durability.
Compact dimensions of 108 x 57 mm facilitate integration. Explore the comprehensive STMicroelectronics product range and Evaluation Boards on EnvMart for your electronics development needs.
