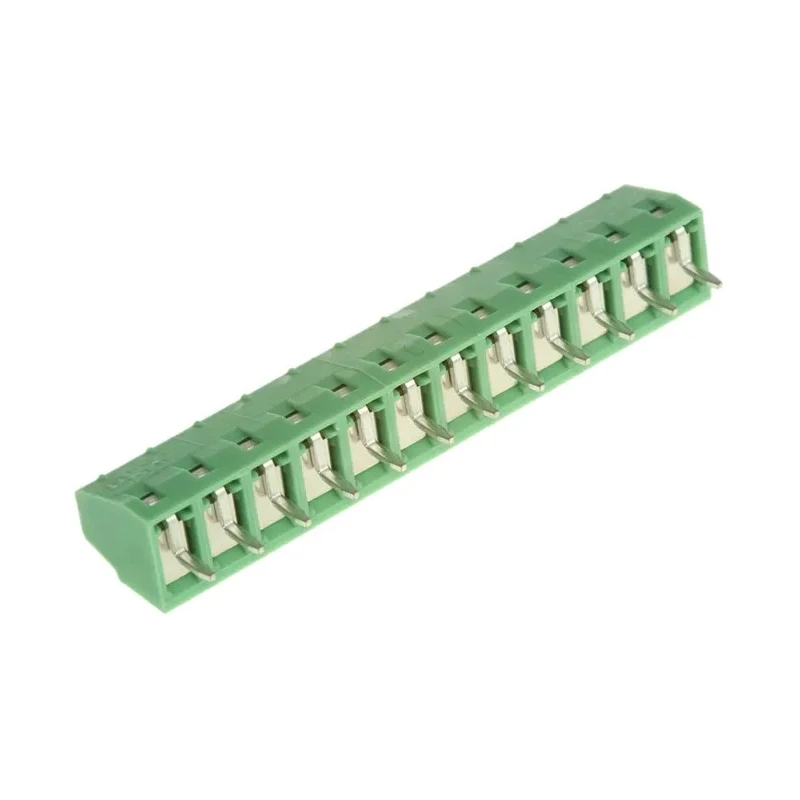

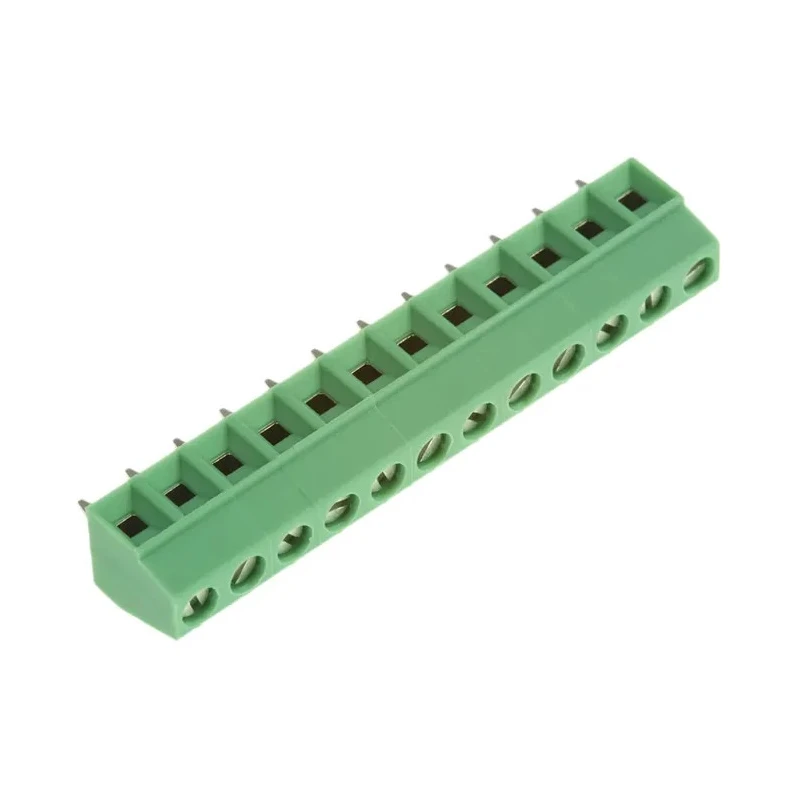

Phoenix Contact MKDS 1/12-3.81 Series Straight PCB Terminal Block, 12 Contacts, 3.81 mm Pitch, 160 V, 13.5 A 1727117
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 13.5A |
| Model | 1727117 |
| Housing Material | Polyamide |
| Series | MKDS 1/12-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 12 |
| RS PRO PCB Terminal Block, 12-Contact, 3.81 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- Equipped with 12 contact points for efficient wiring.
- Designed for a 3.81 mm pitch and single-row configuration.
- Constructed with durable polyamide housing material for enhanced reliability.
- Features a straight orientation suitable for PCB mounting.
- Implements a robust moving cage principle for secure wire connection up to 1.5 mm².
- Separate solder pin and terminal sleeve ensure reliable strain relief.
- Complies with UL94 V-0 flammability standard using Polyamide 6.6 Krilen material.
- Manufactured in Germany adhering to high quality standards.
Product Description
Phoenix Contact 1727117 MKDS 1/12-3.81 Series Straight PCB Terminal Block is a high-quality component designed for advanced PCB electrical connectivity requiring 12 contacts and a pitch of 3.81 mm. It supports current up to 13.5 A and voltage up to 160 V. The housing is constructed from Polyamide 6.6 Krilen material rated UL94 V-0, offering superior resistance and durability.
This terminal block features a single row straight orientation, making it suitable for straightforward PCB mounting applications in various industrial and electronic uses. The innovative cage clamp mechanism provides a robust wire connection accommodating wires up to 1.5 mm² solid or 1.0 mm² stranded with reliable strain relief provided by the separate solder pin and terminal sleeve.
Manufactured in Germany, the MKDS series is designed to meet demanding electrical and mechanical requirements. It does not bear formal certifications but is engineered to industrial quality standards ensuring dependable performance.
12 contact points for flexible wiring configurations. 3.81 mm pitch spacing for precise PCB component integration. Rated for 160 V and 13.5 A handling capacity. Polyamide housing material ensures mechanical strength and flame resistance.
Straight orientation aligns with common PCB layouts. Robust moving cage clamp method secures wires reliably. Separate components for solder pin and terminal sleeve enhance connection integrity. Designed for industrial, electronic manufacturing, and power connector uses.
Made in Germany with stringent manufacturing controls.
This PCB terminal block is ideal for applications in electronics assembly, power distribution on printed circuit boards, and industrial automation control panels. Its compact and efficient design allows for dense wiring while maintaining clear electrical insulation and mechanical safety.
Explore the Electronics & Electricals category for a wide selection of PCB Terminal Blocks and connectors suited to diverse technical and industrial applications available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a voltage of 160 V.
This model features 12 contact points for efficient wiring configurations.
It can handle a current of up to 13.5 A.
The pitch size is 3.81 mm, suitable for precise PCB component integration.
The housing is constructed from Polyamide 6.6 Krilen material, which is rated UL94 V-0 for flammability.
It features a straight orientation, making it suitable for straightforward PCB mounting applications.
It can accommodate wires up to 1.5 mm² solid or 1.0 mm² stranded.
This product is manufactured in Germany, adhering to high quality standards.
It does not bear formal certifications but is engineered to industrial quality standards for dependable performance.
It is designed in a single-row configuration, which is common for PCB layouts.
It implements a robust moving cage principle for secure wire connection and reliable strain relief.
It is ideal for applications in electronics assembly, power distribution on printed circuit boards, and industrial automation control panels.
