Chauvin Arnoux CA 755 Handheld Digital Multimeter 1kV DC Voltage Resistance Capacitance Measurement P01191755

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux CA 755 Handheld Digital Multimeter 1kV DC Voltage Resistance Capacitance Measurement P01191755

Name: Chauvin Arnoux CA 755 Handheld Digital Multimeter 1kV DC Voltage Resistance Capacitance Measurement P01191755
Brand: Chauvin Arnoux
SKU: 201771
Price: 169.04 USD
Availability: InStock



Category Multimeter Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	India
Display Type	Digital
Brand	Chauvin Arnoux
Battery Life	100h
Battery type	IEC LR03, AAA 1.5 V
Height	180mm
Length	45mm
Model	P01191755
Gross Weight	200g
Width	52mm
Maximum Operating Temperature	55°C
AC Voltage Resolution	1mV ac
Minimum Operating Temperature	-10°C
Resistance Measurement Accuracy	±3 % rdg + 3 Digits
AC Current Accuracy	±3 % rdg + 4 Digits
Resistance Resolution	100mΩ
Multimeter Type	Handheld
Functions Measured	AC Voltage, Capacitance, Continuity, DC Voltage, Diode Test, Resistance
Maximum Resistance Measurement	30mΩ
Maximum DC Voltage Measurement	1kV dc
Safety Category Level	CAT III
Safety Category Voltage	600V

Key Features

Measures AC/DC voltage, resistance, capacitance, continuity, and diode test accurately.
Automatically recognizes DC/AC, resistors, diodes, and capacitors.
Backlit 3000 count digital display ensures clear readings.
Durable IP54 casing provides dust protection.
Powered by 2 IEC LR03 AAA 1.5 V batteries with 100 hours battery life.
Removable CAT III/CAT IV test probes for safety and versatility.
Automatic power-off after 10 minutes of inactivity for battery saving.
Suitable for electricians, heating engineers, mechanics, and maintenance technicians.

Product Description

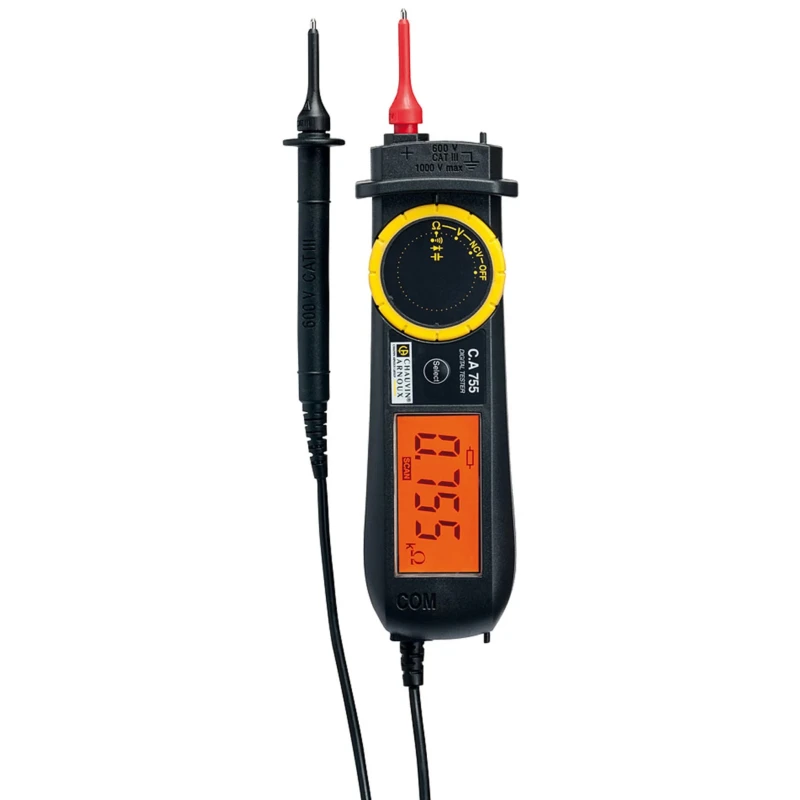

Chauvin Arnoux CA 755 handheld digital multimeter (Model P01191755) offers comprehensive measurement capabilities including AC and DC voltage up to 1 kV, resistance, capacitance, continuity, and diode testing, suited for professional electrical work.

This ergonomic instrument features a large backlit 3000 count digital display and a durable IP54-rated case ensuring protection against dust and splashes, ideal for industrial and commercial environments.

The multimeter incorporates a "SMART" function that automatically detects and measures DC or AC voltage, resistors, diodes, and capacitors, simplifying operation.

Operating temperature ranges from -10°C to 55°C accommodate varied working conditions. The unit is powered by two IEC LR03 AAA 1.5 V alkaline batteries, providing up to 100 hours of usage.

Safety is prioritized with double insulation, CAT III 600 V rating, and protection against electric shocks up to 6 kV during voltage measurements.

The package includes the CA 755 multimeter, a set of extra-fine CAT III/CAT IV test probes (red and black), two AAA alkaline batteries, a user manual in five languages, a safety datasheet, and a verification certificate.

Measures multiple electrical parameters with high accuracy. Robust and portable design with ergonomic handling. Automatic detection and calibration for ease of use. Safety compliant with IEC 61010-2-033 standards. Long battery life with energy-saving auto power-off.

Replaceable test probes for cost-effective maintenance. Ideal for professionals requiring versatile and reliable Multimeter functions in electrical, HVAC, manufacturing, and maintenance sectors. Explore the full range of measuring instruments and accessories available at EnvMart.
