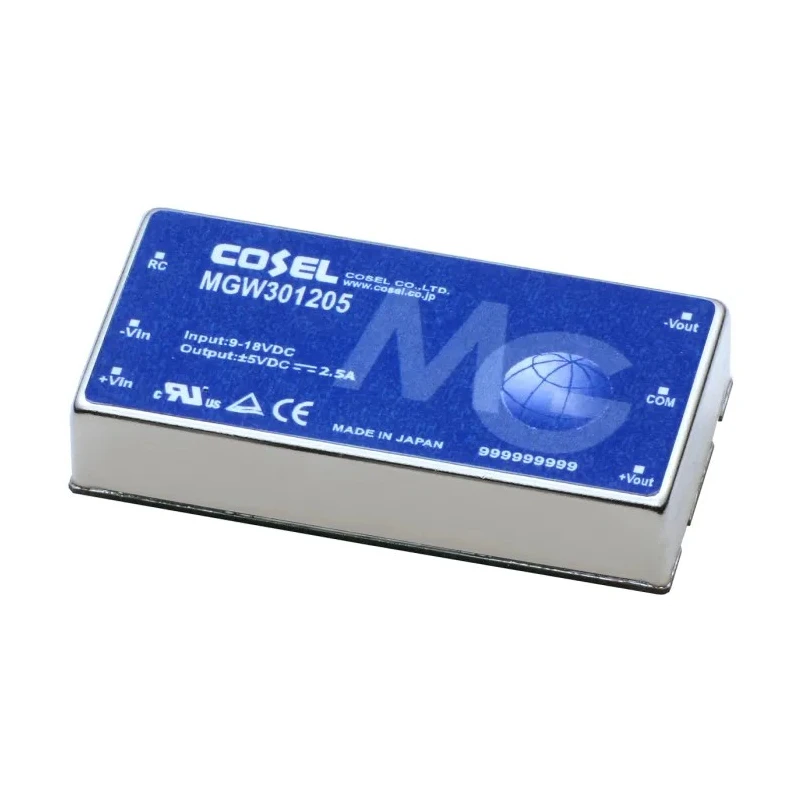

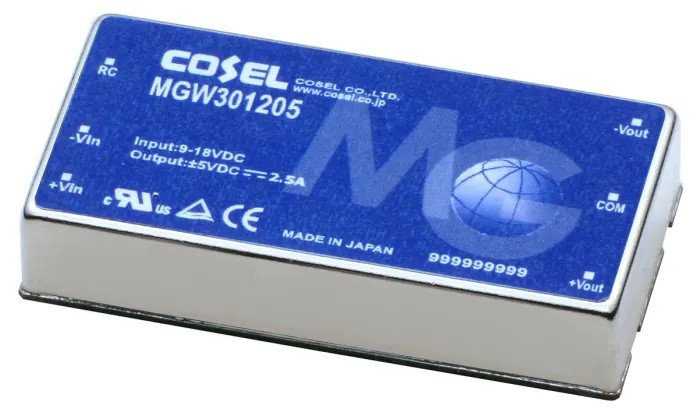

Cosel DC/DC Converter 5V dc, -5 V dc, 2.5 A Output, 24V dc Input, 9V Minimum Input, 25W PCB Mount MGW302405-R

Cosel MGW302405-R is a high-quality DC/DC converter designed to deliver dual output voltages of 5V dc and -5V dc with an output current of 2.5 amperes, making it suitable for various electronics and industrial power supply applications. The converter operates with a maximum input voltage of 24V dc and a minimum input voltage of 9V dc, offering flexibility in power source requirements.

This model features a robust PCB mount type with a DIP package, measuring 25.4mm in length, 9.9mm in width, and 9.9mm in depth, ensuring a compact footprint for space-constrained layouts. Its isolation voltage of 500V dc enhances safety by preventing undesired current flow between input and output sections.

With an efficiency rating of 87%, the MGW302405-R converter reduces energy losses, which is critical for thermal management and energy cost savings in industrial and commercial uses. The device provides stable power output with ripple and noise limited to 150mV peak-to-peak, suitable for sensitive electronic circuits.

Designed for harsh environments, this converter maintains performance within a wide temperature range from -40°C to 85°C. It includes built-in protection features such as overvoltage and overcurrent protection that automatically recovers, enhancing device reliability and longevity. The remote On/Off function adds control convenience in complex system integrations.

PCB mount DIP package for easy integration. High isolation voltage supports industrial safety standards. Built-in protective circuits ensure operational safety and stability. Wide temperature range suitable for rigorous environments.

Efficient power conversion minimizes heat dissipation. Standard compliances ensure quality and reliability.

This DC/DC converter series is ideally suited for industrial electronics, power management systems, telecommunications, and embedded system applications where stable dual voltage outputs and compact size are required. The Japan-manufactured device is backed by a high reliability design without aluminium or tantalum electrolytic capacitors and is accompanied by a 10-year warranty from Cosel.
