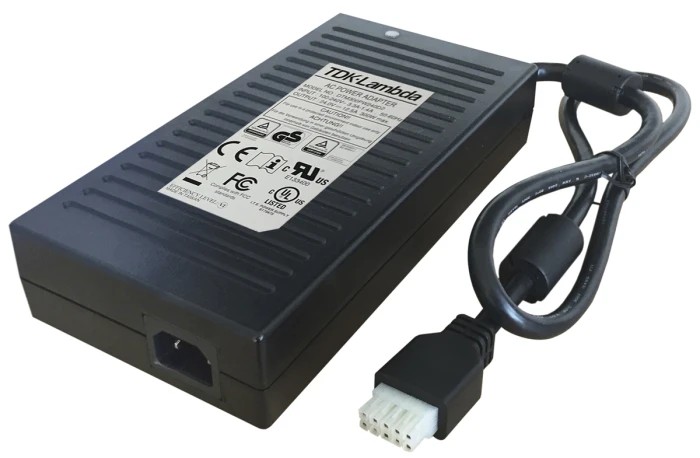

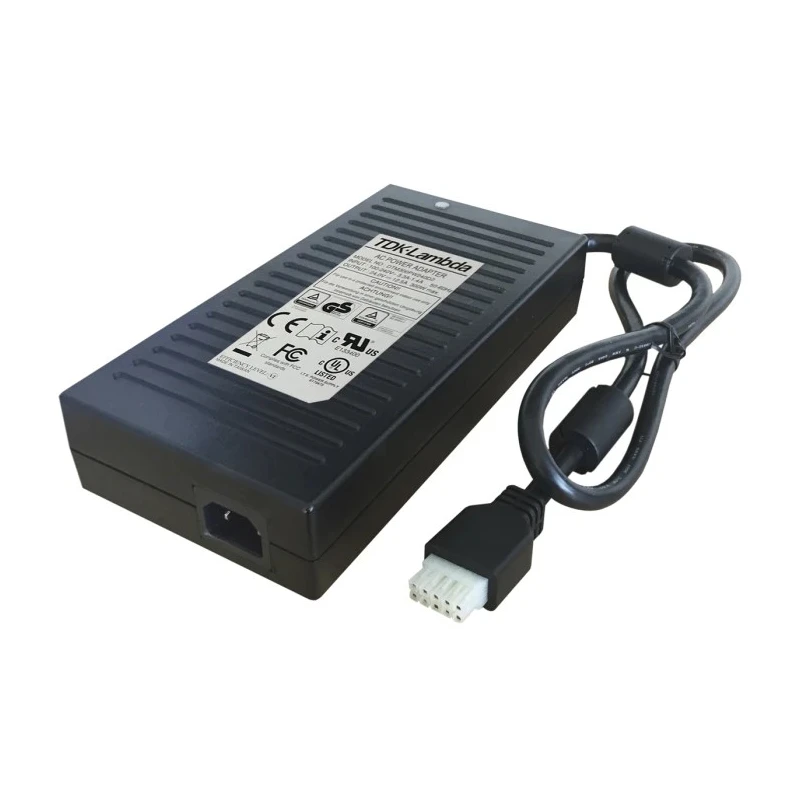

TDK-Lambda AC/DC Power Adapter 12V DC Output 25A 300W 10 Pin DC Jack DTM-300PW-120-D2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK-Lambda |
| Power | 300W |
| Efficiency | 88% |
| Length | 222mm |
| Model | DTM-300PW-120-D2 |
| Depth | 45mm |
| Cable Length | 800mm |
| Width | 112mm |
| Series | DTM300-D |
| Maximum Operating Temperature | 60°C |
| Sub Type | Power Adapter |
| Load Regulation | ±5 % |
| Minimum Operating Temperature | -30°C |
| Plug Type | 10 Pin |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Output Voltage | 12V dc |
| Minimum Input Voltage | 90V ac |
| Output Connector Type | DC Jack |
| Input Connector Type | IEC 320-C14 |
| Adapter Current | 25A |
| Energy Efficiency Level | VI |
Key Features
- Equipped with a 10-pin DC jack output connector ensuring secure connectivity.
- Compact design with dimensions 222mm length, 112mm width, and 45mm depth for easy integration.
- High efficiency of 88% and meets Level VI energy standards for power savings.
- Operates reliably in wide temperature range from -30°C to 60°C with convection cooling.
- Includes over-voltage and over-current protection for enhanced safety.
- Features IEC 320-C14 input connector compatible with 90V to 264V AC input voltage.
- Suitable for power-hungry medical, test and measurement, communications, and broadcasting equipment.
- Conforms to CE, UL 60601-1, IEC 60601-1, and EN 60601-1 safety standards.
Product Description
TDK-Lambda DTM-300PW-120-D2 is a high-performance AC/DC Power Adapter offering a 12V DC output at 25A current with 300W power capacity. Designed specifically for demanding industrial and medical applications, this adapter conforms to rigorous safety standards including CE, UL 60601-1, IEC 60601-1, and EN 60601-1.
This unit utilizes a 10-pin DC jack output connector and an IEC 320-C14 input connector allowing operation over a broad input voltage range from 90V to 264V AC, supporting global power requirements. It features a rugged, vent-free enclosure cooled by convection, ensuring silent and reliable operation across ambient temperatures from -30°C up to 60°C.
With a compact footprint measuring 222mm in length, 112mm in width, and 45mm in depth, the adapter enables easy integration into diverse system designs. The device achieves Level VI energy efficiency with an 88% efficiency rating, significantly reducing power loss and meeting modern environmental requirements.
Applications for the DTM-300PW-120-D2 include power-hungry medical instruments, test and measurement equipment, communications systems, and broadcasting devices, where stable and reliable DC power is critical. It also features over-voltage and over-current protection circuits safeguarding connected equipment from electrical faults.
Equipped with a 10-pin Molex Mini-Fit® DC jack output connector. Convection cooled, vent-free rugged enclosure for silent operation. Standards compliance including CE and multiple medical safety certifications. High operating temperature range for diverse environments.
Power efficiency exceeding 88% with DoE Level VI certification. Supports single output, rated at 12V DC, 25A current. Cross-industry applications in medical, communications, and broadcasting sectors. Explore the TDK-Lambda range of AC/DC adapters for versatile and reliable power supply solutions on EnvMart.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12V DC output with a maximum current of 25A.
The dimensions of this unit are 222mm in length, 112mm in width, and 45mm in depth.
It has an efficiency rating of 88% and meets Level VI energy standards for power savings.
The adapter operates over a wide input voltage range from 90V to 264V AC.
It utilizes a 10-pin DC jack output connector for secure connectivity.
It conforms to CE, UL 60601-1, IEC 60601-1, and EN 60601-1 safety standards.
This power adapter operates reliably within a temperature range of -30°C to 60°C.
Yes, it includes over-voltage and over-current protection for enhanced safety.
It features an IEC 320-C14 input connector.
It is suitable for power-hungry medical instruments, test and measurement equipment, communications systems, and broadcasting devices.
The load regulation is specified at ±5%.
The country of origin for this power adapter is India.
