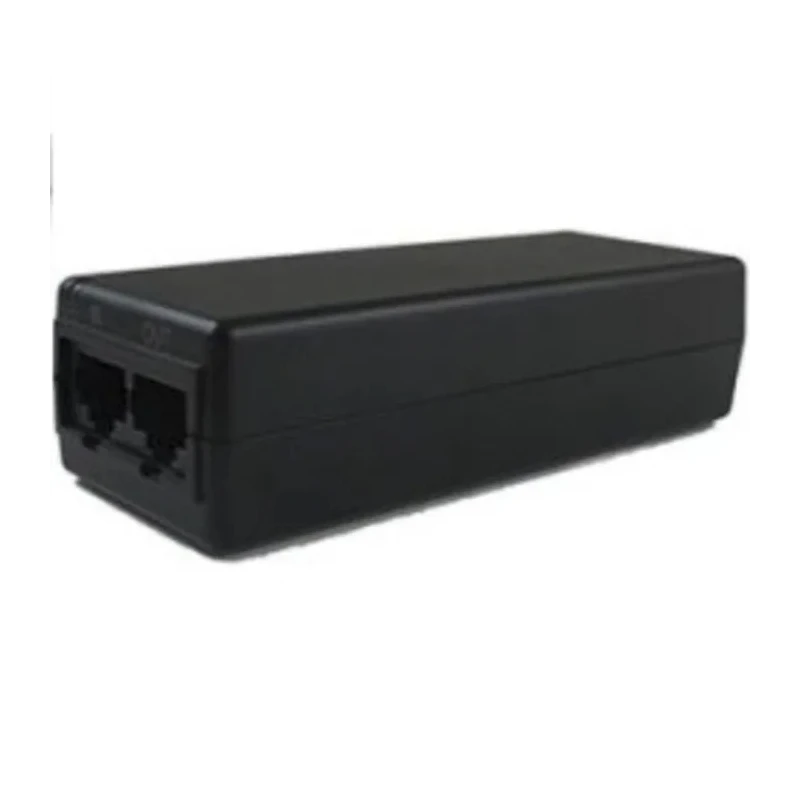

Phihong 1 Port PoE Injector & Splitter Set POE15M-1AFE, 264V AC / 90V AC Input, 15.4W, 56V DC Output, 275mA

Free Delivery in India | Lowest Global Shipping Charges

Phihong 1 Port PoE Injector & Splitter Set POE15M-1AFE, 264V AC / 90V AC Input, 15.4W, 56V DC Output, 275mA

Name: Phihong 1 Port PoE Injector & Splitter Set POE15M-1AFE, 264V AC / 90V AC Input, 15.4W, 56V DC Output, 275mA
Brand: Phihong
SKU: 82035
Price: 46.9 USD
Availability: InStock



Category Power Supplies & Transformers Brand Phihong Condition New

Specifications

Country of Origin	China
Brand	Phihong
Power	15.4W
Efficiency	75%
Length	106mm
Model	POE15M-1AFE
Depth	27mm
Gross Weight	100g
Width	40mm
Mount Type	Desktop
Series	POE15M
Output Current	275mA
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Input Voltage	264, 90V ac
Output Voltage	56V dc
Electrical Phase	1
Standards/Approvals	cULus, CE
Input Connector Type	C6
Number of Ethernet Ports	1
Phihong POE InjectorBrand	Phihong

Key Features

Single port PoE injector and splitter set for powering network devices.
Supports input voltages from 90V to 264V AC for international deployment.
Delivers 15.4W DC output at 56V, 275mA for reliable equipment power.
High energy efficiency of 75% reduces operational costs.
Integrated protections against overcurrent and overvoltage.
Compact non-vented enclosure with desktop mounting.
Operates within -20°C to 50°C for versatile environments.
Equipped with C6 input connector and 1 Ethernet port.

Product Description

The Phihong POE15M-1AFE is a professional single-port Power over Ethernet (PoE) injector and splitter set designed to deliver 15.4W of DC power for networked equipment such as IP telephones, security cameras, and wireless network access points. This set combines high efficiency with robust protection, making it an excellent choice for a wide range of industrial, laboratory, and commercial applications where PoE solutions are required.

Supporting an input range from 90V to 264V AC, the POE15M-1AFE can be deployed globally without concern for input voltage variations. The output delivers a stable 56V DC at up to 275mA, making it suitable for powering compliant network devices over a single Ethernet cable while ensuring data integrity with gigabit data rates.

The desktop-mountable design features a compact, non-vented enclosure with dimensions of 106mm in length, 40mm in width, and 27mm in depth, providing easy placement and integration in constrained spaces. The C6 input connector supports straightforward installation, and one Ethernet port is available for network connectivity.

Operational efficiency is rated at 75%, minimizing energy loss during conversion and reducing operational costs. The full suite of protections, including overcurrent protection (OCP) and overvoltage protection (OVP), guarantees both connected equipment and network safety.

Designed to operate in challenging environments, the POE15M-1AFE functions reliably in temperatures ranging from -20°C up to 50°C. Compliance with cULus and CE standards underlines its quality and safety in critical installations.

This PoE injector and splitter set is particularly well suited for industrial, laboratory, IT infrastructure, security surveillance, wireless networking, commercial networking, and many other power-and-data delivery applications. Its lightweight construction (100g) further facilitates installation in a variety of network setups.

For engineers looking for a reliable and efficient PoE power solution for their networked hardware, the Phihong POE15M-1AFE stands out for its durability, power stability, and wide deployment potential across modern power distribution environments.
