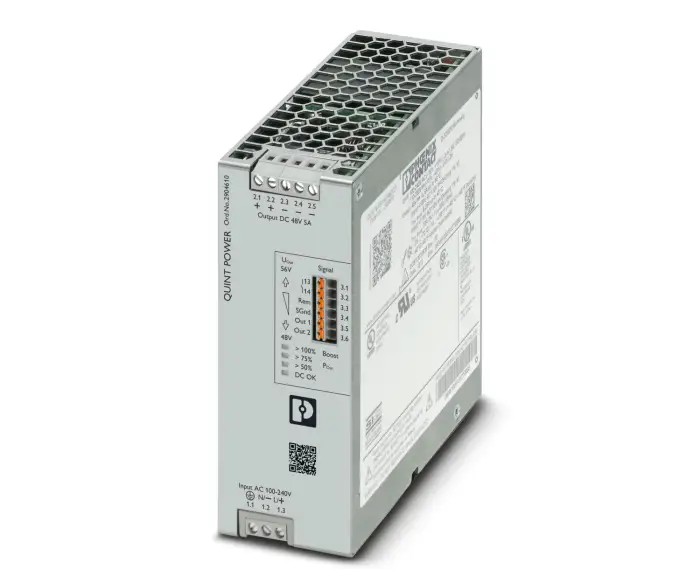

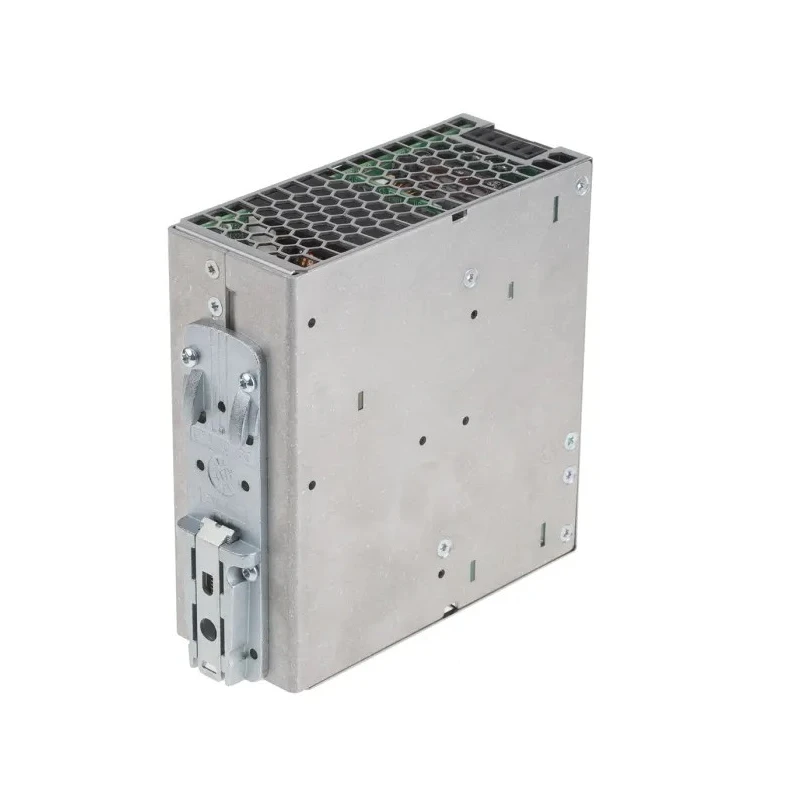

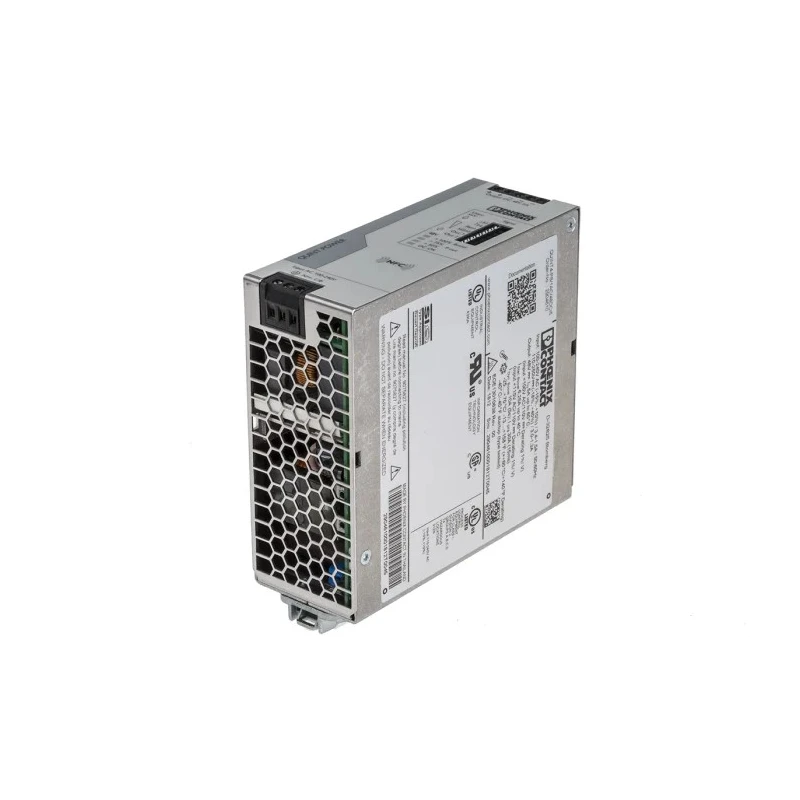

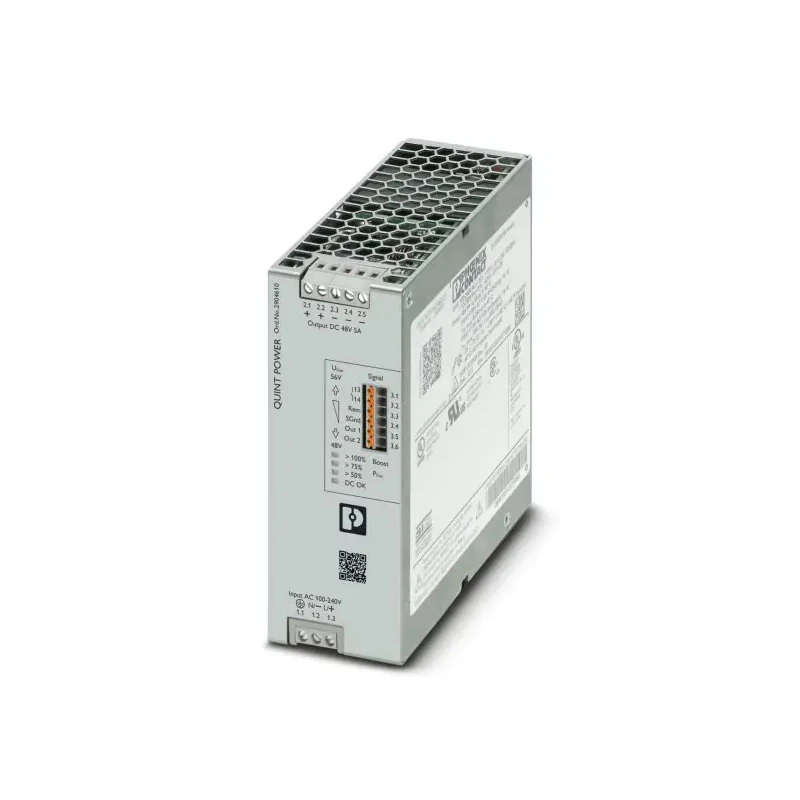

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply, 250 V DC, 240 V AC Input, 56 V DC Output, 5 A, 240 W 2904610
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 240W |
| Efficiency | 93.5% |
| Height | 130mm |
| Model | 2904610 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 50mm |
| Series | QUINT POWER |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 250, 240V dc |
| Electrical Phase | 1 |
| Hazardous Area Certification | Class I Division 2 |
| Maximum Output Voltage | 56V dc |
| Minimum Input Voltage | 100, 110V ac |
Key Features
- The switched mode power supply provides wide input voltage range including 240 V AC and 250 V DC.
- Features IP20 rated enclosure suitable for harsh industrial environments.
- Operates reliably in temperatures from -25°C to +70°C.
- Incorporates selective fuse breaking technology to enhance system uptime by isolating faults.
- Integrated dynamic power boost supports starting heavy loads with 150% nominal current for up to five seconds.
- Supports industrial use cases such as machine building, mining, and quarrying.
- Complies with multiple safety and EMC standards including UL 60950-1 and EN 61558-2-16.
Product Description
Phoenix Contact 2904610 QUINT POWER Switched Mode DIN Rail Power Supply delivers a robust 240 W output power at 56 V DC and 5 A current. It accepts wide voltage inputs from 100-110 V AC up to 240 V AC and 250 V DC, making it suitable for a broad range of industrial power applications.
This power supply unit is designed with a rugged IP20 rated enclosure providing protection against touch and solid objects larger than 12 mm. It operates reliably over a temperature range from -25°C to +70°C, ideal for demanding manufacturing, mining, electrical panels, and automation environments.
The device incorporates selective fuse breaking technology which isolates faults by tripping miniature circuit breakers individually, ensuring uninterrupted operation of parallel loads and boosting system availability.
Dynamic power boost technology allows the unit to start heavy loads, delivering 150% of the rated current for up to five seconds. Its functionalities are easily programmable to tailor power supply parameters to specific system requirements.
Certifications and standards compliance include UL 60950-1, UL ANSI/ISA-12.12.01 Class I, IEC 60950-1, EN 61558-2-16, and others, ensuring safe and EMC-compatible operation.
Typical industrial use cases for this QUINT POWER supply include machine building, manufacturing plants, mining and quarrying operations, and other critical industrial circuits requiring a stable and reliable DC power source.
The switched mode power supply provides wide input voltage range including 240 V AC and 250 V DC. Features IP20 rated enclosure suitable for harsh industrial environments. Operates reliably in temperatures from -25°C to +70°C.
Incorporates selective fuse breaking technology to enhance system uptime by isolating faults. Integrated dynamic power boost supports starting heavy loads with 150% nominal current for up to five seconds. Supports industrial use cases such as machine building, mining, and quarrying.
Complies with multiple safety and EMC standards including UL 60950-1 and EN 61558-2-16. Explore more industrial power supplies from Phoenix Contact and find reliable power solutions for your manufacturing and automation needs on EnvMart.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a wide input voltage range from 100-110 V AC up to 240 V AC and 250 V DC.
The power supply operates reliably in temperatures ranging from -25°C to +70°C.
This unit has an efficiency rating of 93.5%.
The enclosure is rated IP20, providing protection against touch and solid objects larger than 12 mm.
The integrated dynamic power boost allows the unit to start heavy loads by delivering 150% of the nominal current for up to five seconds.
It complies with multiple safety and EMC standards including UL 60950-1 and EN 61558-2-16.
This power supply has a single output.
The dimensions are 130 mm in height, 125 mm in depth, and 50 mm in width.
It is suitable for industrial applications such as machine building, mining, and quarrying.
The maximum input voltage is 250 V DC and 240 V AC.
