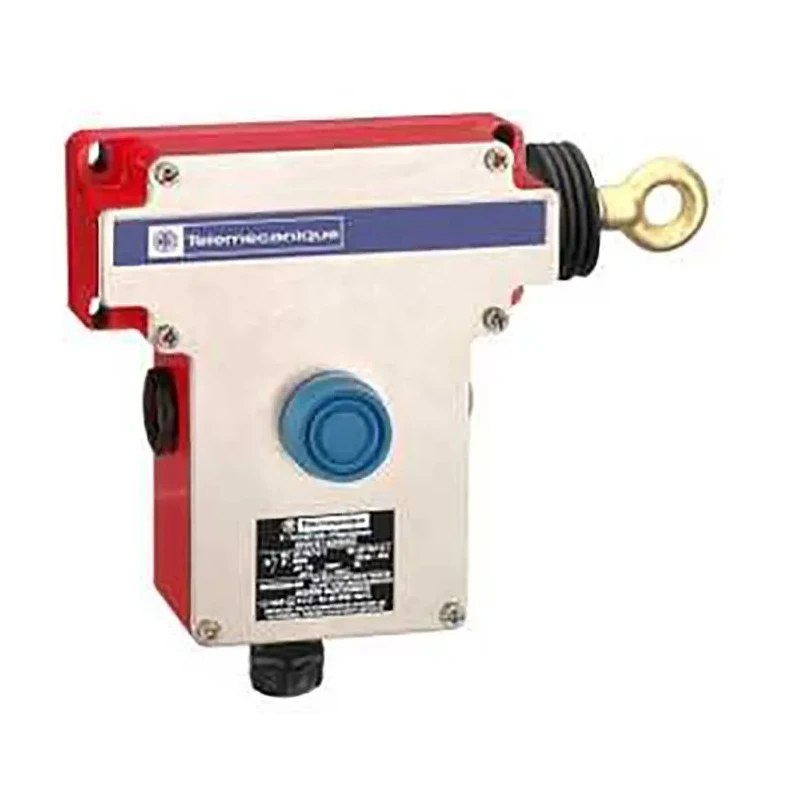

Telemecanique Sensors Rope Pull Switch 229 mm, 1 NO/1 NC, Stainless Steel Housing, IP66 Rated XY2CE

Telemecanique Sensors XY2CE rope pull switch features a 229 mm length and robust stainless steel housing, rated at IP66 for protection against dust and water ingress. This model provides a reliable safety solution with one normally open (NO) and one normally closed (NC) contact arrangement, suitable for emergency stop functions in industrial automation.

The switch includes a reset button that re-closes the safety contacts after an emergency stop event, requiring manual machine restart for worker safety. It is designed to deliver positive opening operation contacts and latches in the tripped position to prevent accidental restarts.

Operating temperature ranges from -25°C to 70°C, making it adaptable to diverse industrial environments. The device supports mechanical operation life of up to 60,000 cycles, ensuring long service durability. Cable entry options include three entries with M20 conduit fittings, providing flexible wiring solutions.

It has international certifications including ATEX for hazardous areas, EAC, CSA, CCC, EN/IEC 60947-5-5, UL 508, and UL (NISD), confirming its compliance with high safety and quality standards globally.

This rope pull switch is widely used in manufacturing, industrial automation, material handling, and other commercial and industrial areas where emergency stop controls are critical for worker safety and machinery protection. The recommended support spacing for the trip wire is 15 meters to guarantee effective triggering.

This switch features a stainless steel housing with an IP66 rating for high durability in harsh environments. Designed with a reset button to manually reset the safety contact after tripping. Suitable for emergency stop functions with mechanical life rated up to 60,000 cycles.

Operates between -25°C and 70°C, supporting safe operation across temperature extremes. Equipped with 3 cable entries and M20 conduit entry for versatile installation. Certified with ATEX hazardous area approval and multiple international standards including UL and CSA.

Contact ratings include 3A current, 240V AC voltage, and 250V DC voltage compatibility. Recommended cable support spacing is 15 meters for optimal performance and safety. Explore the full range of Telemecanique Sensors products and Rope Pull Switches in the EnvMart catalog for scalable industrial safety solutions.
