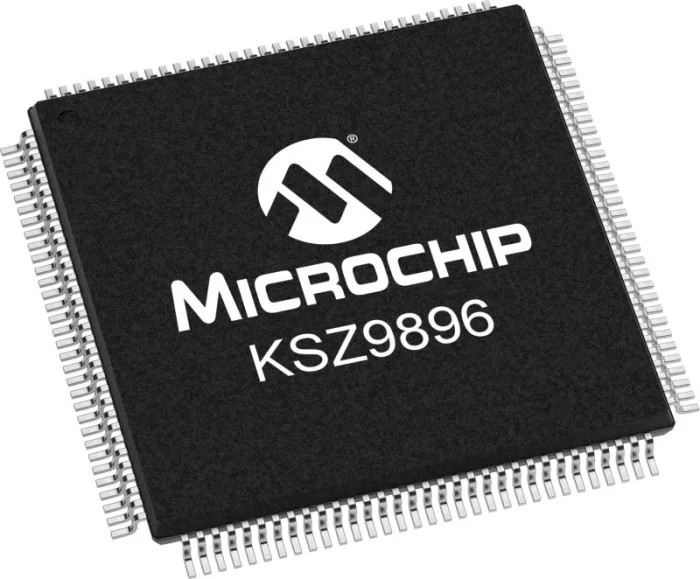

Microchip 128-Pin TQFP Ethernet Switch IC 3.13 V to 3.46 V 100 Mbps RGMII, RMII, MII Full Duplex/Half Duplex KSZ9896CTXI

Free Delivery in India | Lowest Global Shipping Charges

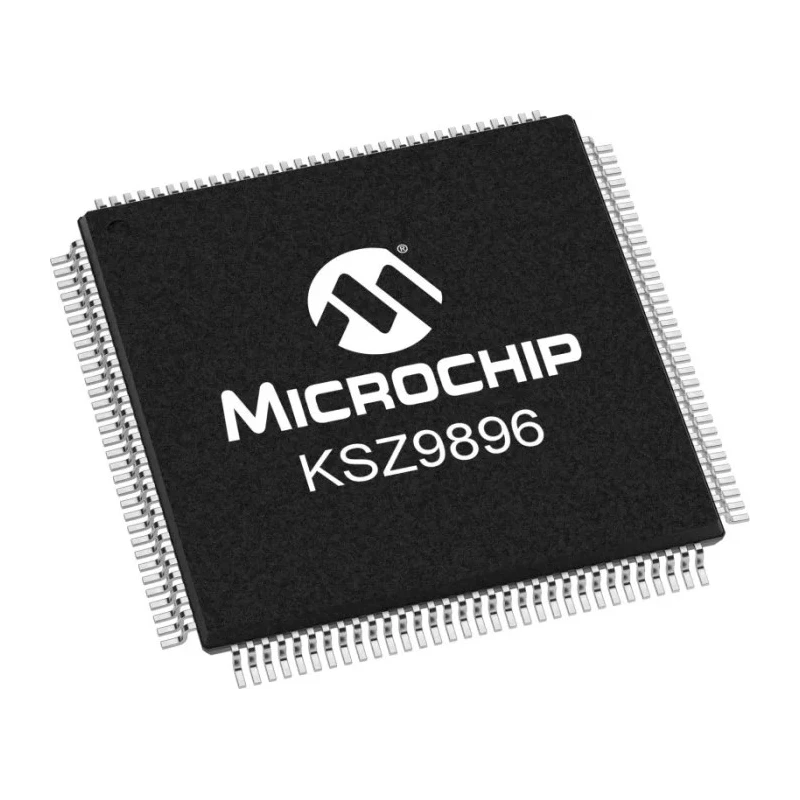

Microchip 128-Pin TQFP Ethernet Switch IC 3.13 V to 3.46 V 100 Mbps RGMII, RMII, MII Full Duplex/Half Duplex KSZ9896CTXI

Name: Microchip 128-Pin TQFP Ethernet Switch IC 3.13 V to 3.46 V 100 Mbps RGMII, RMII, MII Full Duplex/Half Duplex KSZ9896CTXI
Brand: Microchip
SKU: 176759
Price: 22.99 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Model	KSZ9896CTXI
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Interfaces	Ethernet switch fabric supports 1 Gbps on RGMII
Communication Mode	Full Duplex/Half Duplex
Interface Type	RGMII, RMII, MII
Standards/Approvals	RoHS
Pin Count	128
Maximum Supply Voltage	3.46V
Minimum Supply Voltage	3.13V
Maximum Data Rate	100Mbps
Number of Transceivers	5

Key Features

Features five integrated 10BASE-Te/100BASE-TX/1000BASE-T transceivers for versatile network applications.
Supports multiple interface types including RGMII, RMII, and MII for flexible connectivity.
Includes a layer-2 managed Gigabit Ethernet switch for efficient data handling.
Digital I/O voltage compatible with 1.8V, 2.5V, and 3.3V host processors.
Operates reliably in a wide temperature range from -40°C to 85°C.
Energy-efficient with power management features such as Wake-on-LAN support.
Non-blocking wire-speed Ethernet switch fabric supports up to 1 Gbps on RGMII interface.
Full VLAN and QoS support for advanced network traffic management.

Product Description

The Microchip KSZ9896CTXI is a 128-pin TQFP Ethernet Switch IC designed for industrial and networking applications requiring robust, high-performance Ethernet switching capabilities. Operating between 3.13 V and 3.46 V supply voltages, it supports data rates up to 100 Mbps with full duplex and half duplex communication modes, delivering flexibility and efficiency.

This device integrates five Ethernet physical layer transceivers compliant with 10BASE-Te, 100BASE-TX, and 1000BASE-T standards accompanied by MAC units, enabling multi-port connectivity including a configurable GMII/RGMII/MII/RMII MAC port. The flexible digital I/O voltage capability allows direct interfacing with various host processors or controllers supporting 1.8 V, 2.5 V, or 3.3 V logic levels.

The KSZ9896CTXI provides a non-blocking wire-speed Ethernet switch fabric with robust forwarding and filtering controls including advanced port-based Access Control List (ACL) filtering, VLAN, and Quality of Service (QoS) to prioritize and manage network traffic efficiently.

Designed for demanding industrial environments, it operates reliably across a temperature range of -40°C to 85°C. Power management features include Wake-on-LAN (WoL) functionality that supports low power standby operation, making it suitable for energy-conscious designs.

This Ethernet Switch IC complies with international environmental standards such as RoHS, ensuring it meets environmental regulations for safer product lifecycle management. Five integrated Ethernet transceivers with MAC units for versatile network configuration.

Configurable MAC port with multiple interface standards for broad compatibility. Supports wake-on-LAN for reducing power consumption during idle periods. Full VLAN and QoS support enhance network security and performance.

Wide operating temperature range suitable for industrial applications.

Ideal for industrial, networking infrastructure, and embedded system applications requiring reliable and flexible Ethernet switch functionality. Explore more Microchip semiconductor products in the Ethernet Interface Ics category for your design needs.
