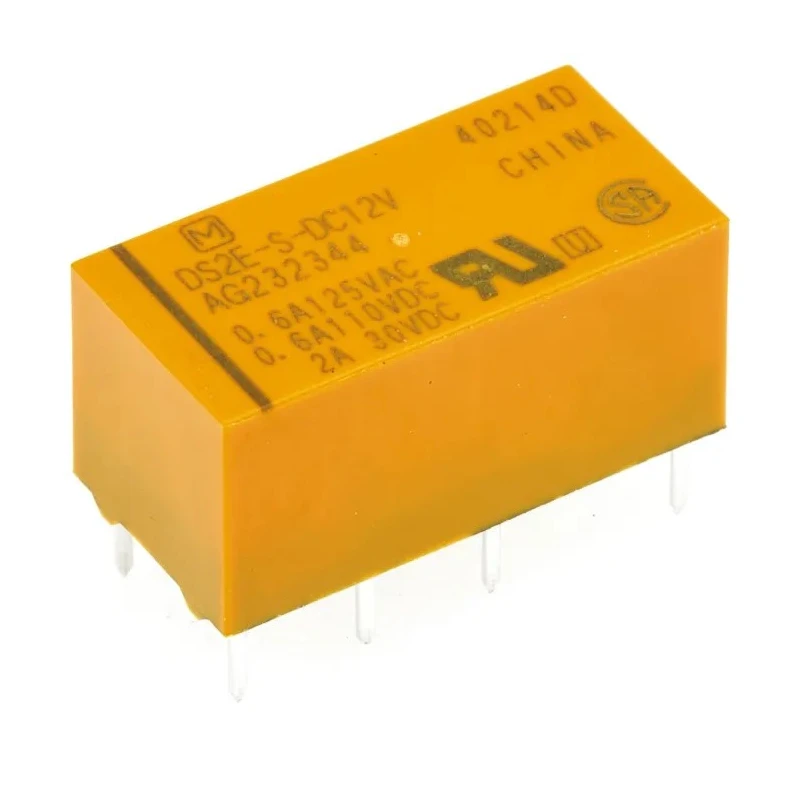

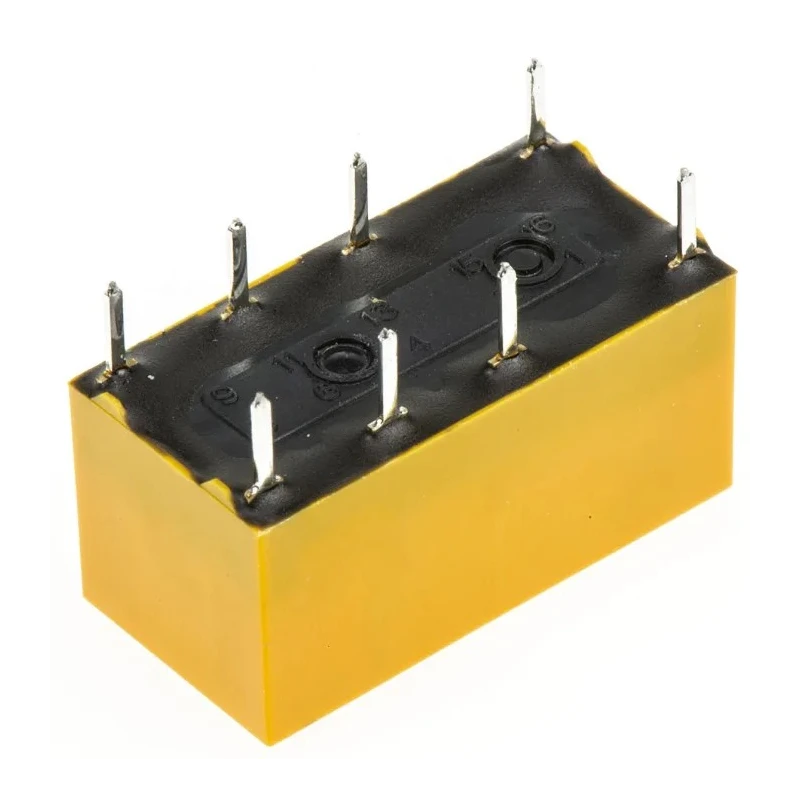

Panasonic PCB Signal Relay 12V DC Coil 3A DPDT DS2E-S-DC 12V

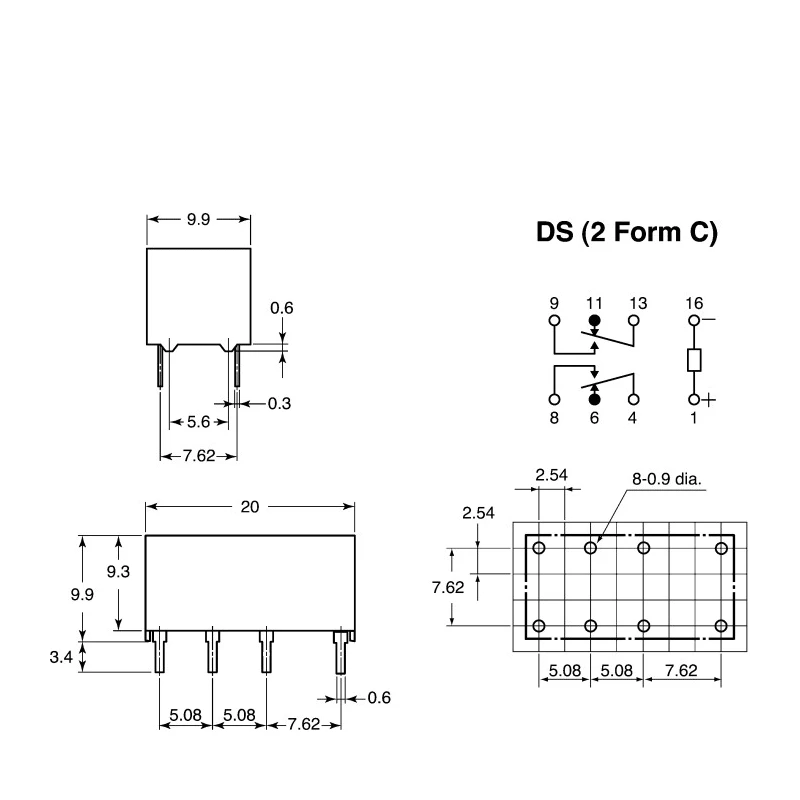

Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 20.2mm |
| Model | DS2E-S-DC 12V |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
| Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, DPDTBrand | Panasonic |
Key Features
- Compact PCB mount relay with dimensions 20.2mm x 9.9mm x 9.9mm for easy board integration.
- Gold plated contacts ensure high reliability and resistance to corrosion.
- Operates over a temperature range of -40°C to 70°C for diverse environments.
- Coil power consumption is low at 200mW with 720Ω resistance for energy efficiency.
- Supports switching voltages up to 250V AC and 220V DC with 60W switching power.
- Dual in-line pinning and sealed construction enable automatic wash processes.
- Suitable for applications in telecommunications, measurement equipment, and computing devices.
Product Description
Panasonic DS2E-S-DC 12V PCB Signal Relay is a highly sensitive miniature relay designed for PCB mounting. Featuring a 12V DC coil and DPDT contact configuration, it offers switching current capability of 3A and voltage ratings up to 250V AC and 220V DC. Its compact dimensions of 20.2mm length, 9.9mm width, and 9.9mm height make it ideal for seamless integration into electronic circuits.
The relay is equipped with gold plated contacts which provide superior reliability and resistance to oxidation, vital for long-term stable operations. With a coil power rating of just 200mW and a resistance of 720Ω, the device exhibits efficient power usage. The sealed construction of the relay ensures compatibility with automatic washing processes, expanding suitability to complex manufacturing environments.
Operating reliably within a temperature range from -40°C to +70°C, the DS series relay from Panasonic is designed to withstand harsh industrial and commercial conditions. Typical use cases are telecommunications, measurement instruments, and computing equipment where precise and reliable switching is critical.
The relay complies with UL and CSA approvals, further assuring quality and safety standards compliance. Its dual in-line pinning eases assembly on PCB boards while maintaining a slim profile.
Compact PCB mount relay with compact dimensions. Gold plated contacts ensure durability and performance. Wide operating temperature range from -40°C to 70°C. Low coil power consumption enhances energy efficiency. High switching voltage and current ratings accommodate diverse applications.
Sealed construction compatible with automatic cleaning processes. Suitable for telecommunications, measurement, and computing sectors. Explore more Panasonic Signal Relays and related components on EnvMart for industrial, laboratory, and commercial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 3A.
This model has dimensions of 20.2mm in length, 9.9mm in width, and 9.9mm in height.
The relay operates with a coil voltage rating of 12V DC.
It supports switching voltages up to 250V AC and 220V DC.
The coil power consumption is low at 200mW.
The relay operates reliably within a temperature range from -40°C to +70°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
Yes, the sealed construction of the relay ensures compatibility with automatic washing processes.
The contacts are made of gold plated material, which provides high reliability and resistance to corrosion.
The relay complies with CSA and UL approvals, ensuring quality and safety standards.
This model is designed for PCB (Printed Circuit Board) mounting.
It is suitable for applications in telecommunications, measurement equipment, and computing devices.
