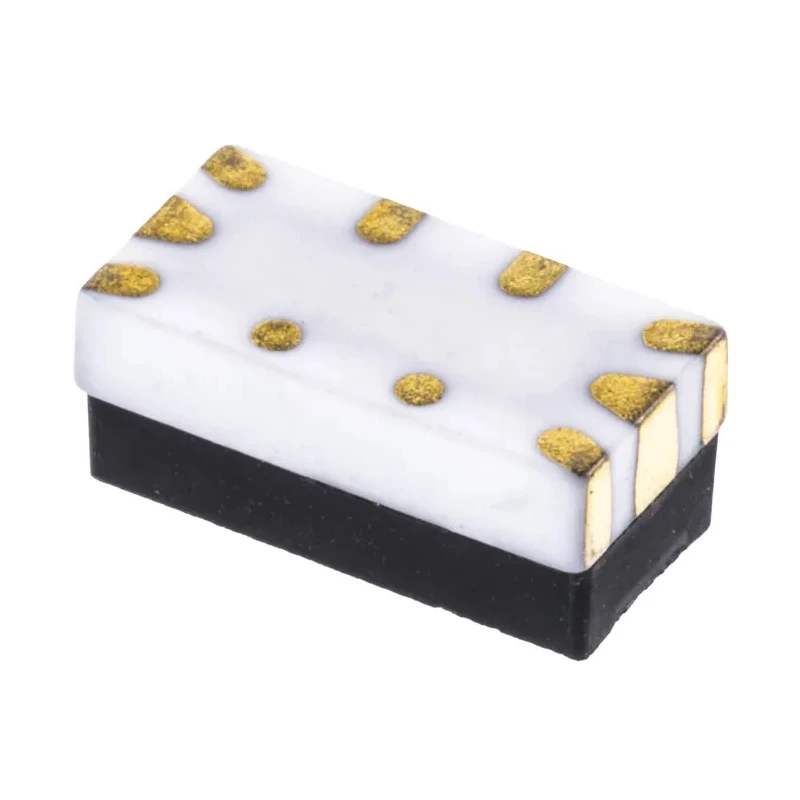

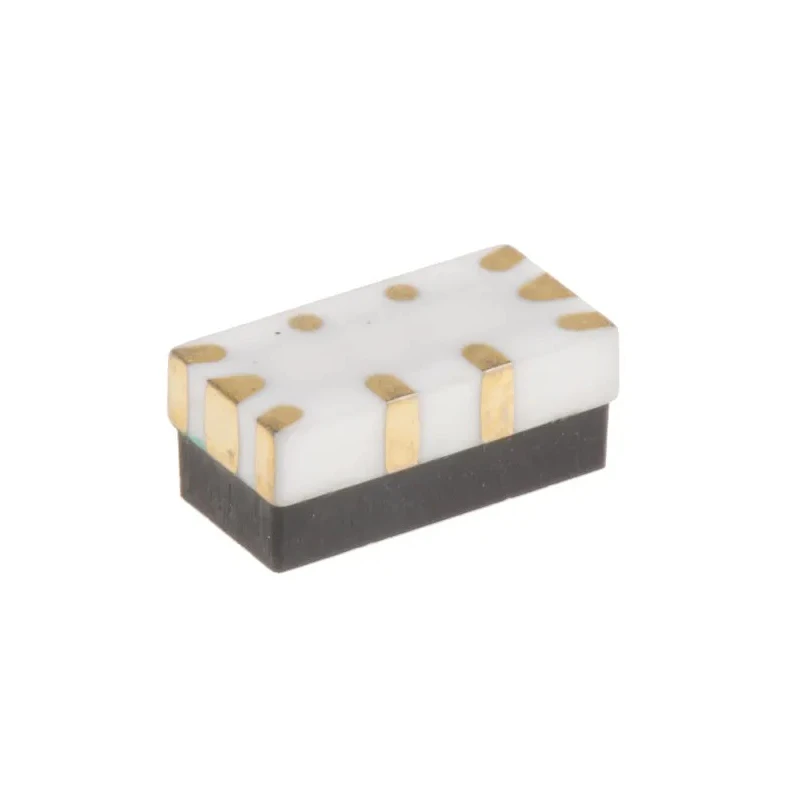

Meder SPST SMT Reed Relay CRR05-1A, Leadless Ceramic Thermoset Moulded Package, Gold Plated Contacts CRR05-1A

Meder CRR05-1A SPST SMT Reed Relay is a high performance micro-miniature, surface mount reed relay ideal for switching low-level signals with precision and reliability. Manufactured using a leadless ceramic thermoset moulded package, this relay is designed to withstand reflow soldering processes up to 260°C, ensuring compatibility with modern surface mount assembly techniques.

This relay features a single pole single throw (SPST) normally open contact configuration, suitable for controlling circuits that require break-before-make operation.

The leadless design effectively eliminates lead skewing problems commonly faced in surface mounting, improving assembly yield and consistent electrical performance. The gold plated contact pads enhance conductivity and corrosion resistance, contributing to long service life and stable operation.

Thanks to its ceramic enclosure, the relay exhibits excellent thermal stability and dimensional integrity under harsh manufacturing conditions.

Electrical characteristics include a very low thermal offset of approximately 1 microvolt, which is essential for sensitive measurement and signal conditioning applications. It also boasts a high insulation resistance typically around 10¹⁴ ohms, ensuring minimal leakage currents and high isolation between coil and contacts.

This Meder CRR05-1A relay is widely used in industrial control, electrical automation, instrumentation, measurement, and other electronics requiring miniature reliable relay solutions.

This relay features one normally open contact for switching applications. The leadless design eliminates lead skewing during surface mounting for enhanced reliability. It has a low profile construction that supports compact PCB layouts.

The relay delivers a very low thermal offset typically around 1μV, ideal for precision electronics. Typical insulation resistance is extremely high at 10¹⁴ ohms, providing excellent electrical isolation. The ceramic package ensures durability and resistance against thermal stress during manufacturing.

Suitable for industrial, automation, and control circuit applications requiring reliable switching. Its extremely small size optimizes space in densely packed electronic assemblies. Explore the extensive range of reliable Reed Relays at EnvMart to meet various industrial and laboratory application needs.
