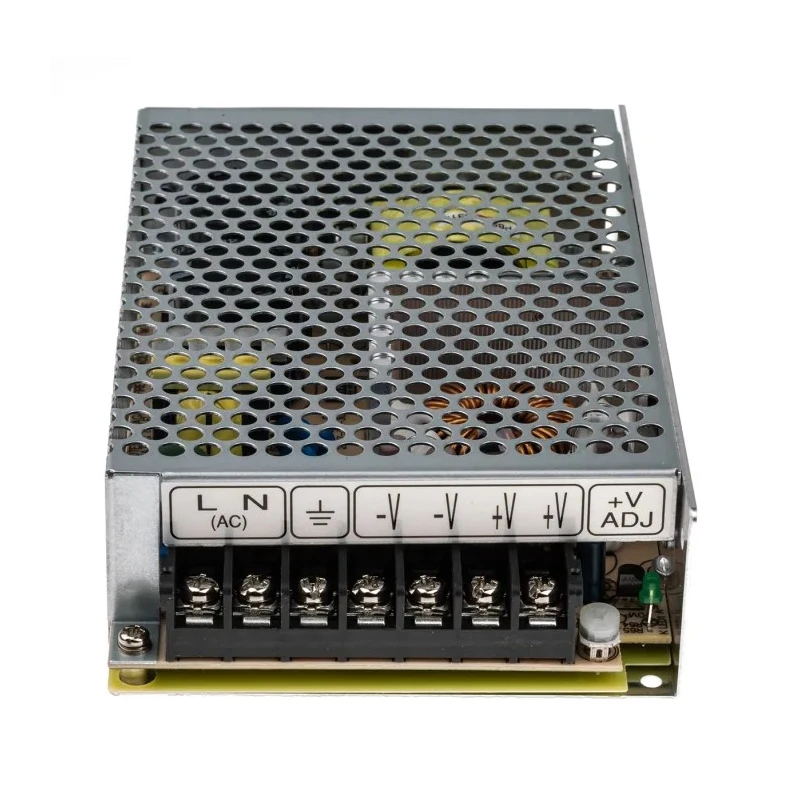

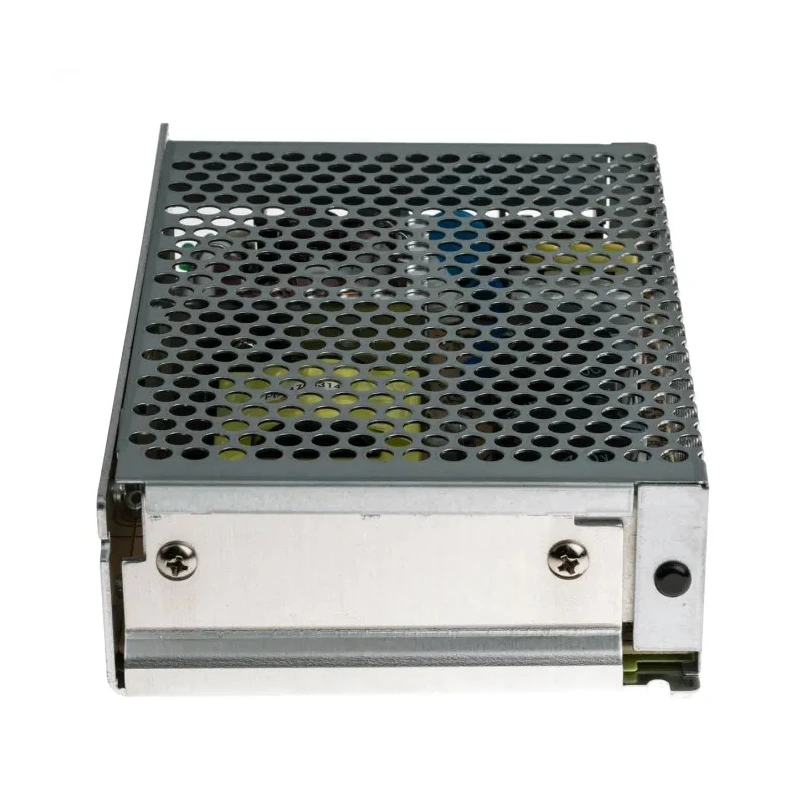

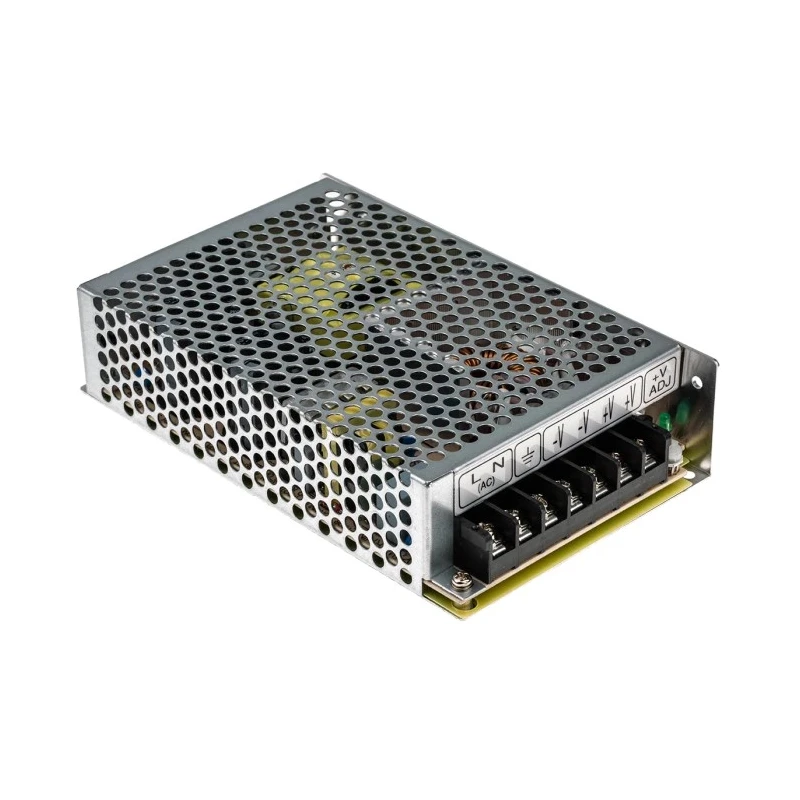

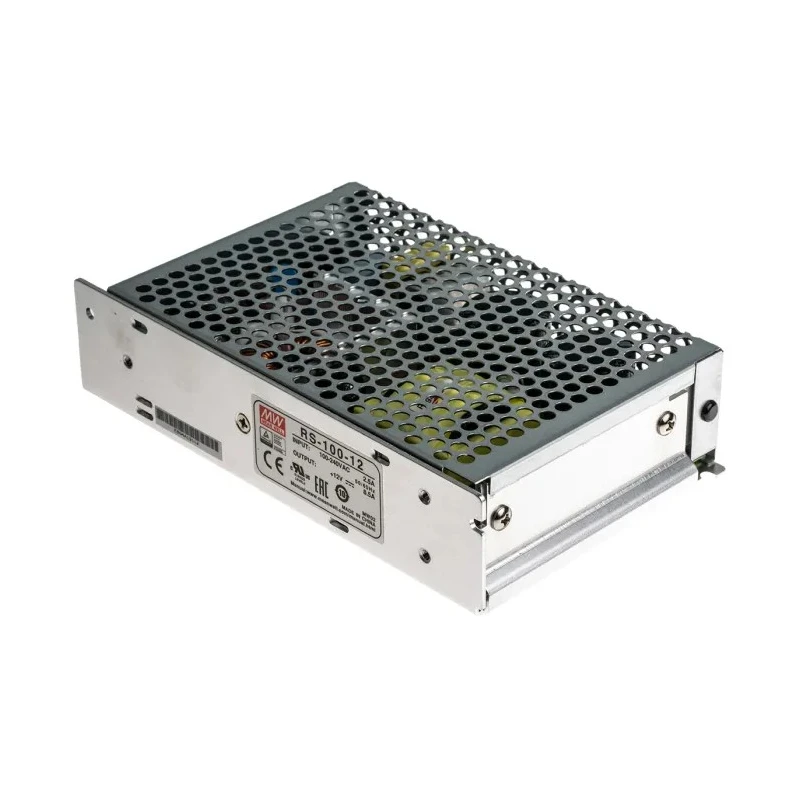

MEAN WELL Switching Power Supply 12V DC, 102W, 8.5A Output, Universal Input 88-264V AC, Chassis Mount RS-100-12

MEAN WELL RS-100-12 is a precision switching power supply designed for industrial and electronic applications requiring stable 12V DC output at up to 8.5A current, delivering a total output power of 102W. It features a universal AC input voltage range from 88VAC to 264VAC and also supports DC input from 125V to 373V, making it suitable for varied power environments.

This chassis mount unit is compact with a length of 159mm, width and depth of 38mm each, making installation straightforward in constrained spaces. The power supply supports a wide operating temperature range from -25°C to 70°C, allowing reliable functioning under harsh conditions.

MEAN WELL RS-100-12 incorporates multiple protective features including short circuit protection, overload protection, and overvoltage protection to enhance device safety and extend life span. It also withstands vibration tests up to 5G and transient surges of 300VAC for 5 seconds without damage.

With an efficiency of up to 81%, this power supply minimizes energy consumption and heat generation. The LED indicator clearly shows power-on status for quick visual confirmation.

It uses long-life electrolytic capacitors rated to 105°C to ensure durability and long operational life. The unit complies with various international standards and certifications such as UL 62368-1, TUV BS EN62368-1, CSA, CB, BSMI CNS143361, AS/NZS62368.1, and IS 13252(Part1)/IEC 60950-1 ensuring safe and compliant operation in industrial, commercial, and laboratory settings.

Universal input voltage range from 88VAC to 264VAC and 125VDC to 373VDC. Single 12V DC output with 8.5A current capacity and 102W power. Compact chassis mount form factor with 159x38x38 mm dimensions. Wide operating temperature capabilities from -25°C to 70°C.

Comprehensive protection features and robust construction. High efficiency up to 81% and LED power indication. Extensive international safety and performance certifications.

This MEAN WELL RS-100-12 Switching Power Supply is ideal for industrial, electronic, manufacturing, laboratory, and commercial applications requiring reliable DC power conversion from AC mains or DC sources. Its combination of compact size, high efficiency, and strong protections make it a dependable solution for demanding environments.
