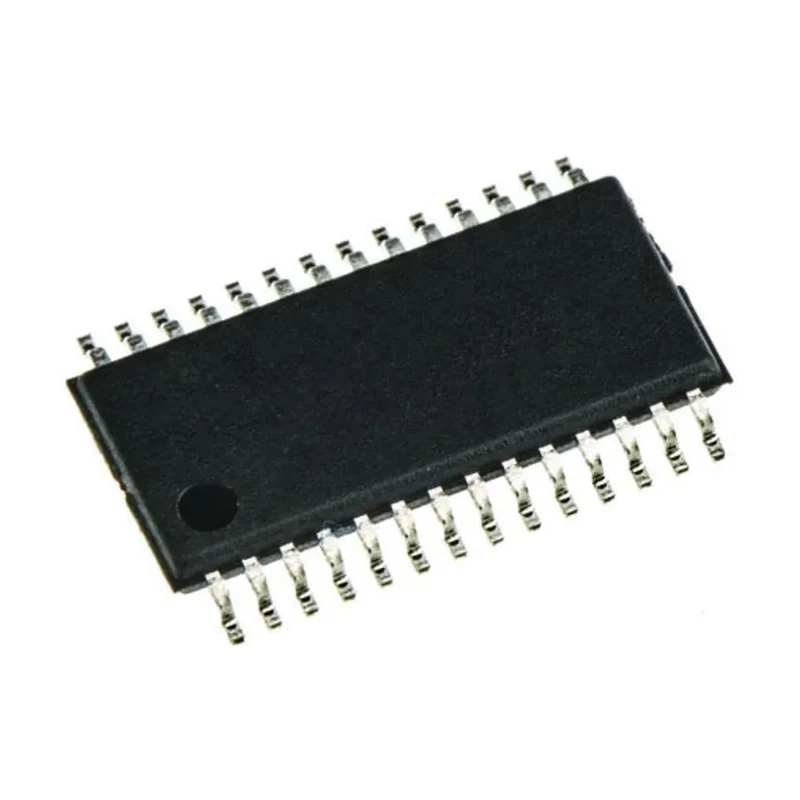

Texas Instruments Voltage Regulator TPS767D318PWP 5.07W 10V HTSSOP 28-Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 9.7mm |
| Model | TPS767D318PWP |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | TPS767 |
| Power Rating | 5.07W |
| Maximum Operating Temperature | 125°C |
| Package Type | HTSSOP |
| Polarity | Positive |
| Maximum Input Voltage | 10V |
| Quiescent Current | 85μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 28 |
Key Features
- This voltage regulator features a low dropout (LDO) design with excellent line voltage regulation.
- It has a quiescent current consumption of only 85 microamps.
- The device supports an input voltage range from 2.7 volts to 10 volts.
- It operates with positive polarity and supports a maximum operating temperature of 125°C.
- The compact HTSSOP 28-pin package measures 9.7 mm length, 4.4 mm width, and 1.15 mm height.
- The Low Dropout (LDO) technology reduces output noise and provides high power supply rejection ratio (PSRR).
- Designed for applications where conventional regulators are unsuitable due to input-output voltage differential.
- This component is surface mount type and belongs to the TPS767 series by Texas Instruments.
Product Description
The Texas Instruments TPS767D318PWP is a high-performance voltage regulator featuring a Low Dropout (LDO) linear design capable of delivering a power rating of 5.07 watts. It supports a wide input voltage range from 2.7V minimum to 10V maximum, making it versatile for numerous electronic power management applications. Packaged in a compact 28-pin HTSSOP format with surface mount compatibility, it allows for efficient space utilization on circuit boards.
This voltage regulator provides positive polarity output with an ultra-low quiescent current of 85µA, making it highly energy efficient for battery-powered and portable electronics. The component is designed to operate reliably up to 125°C, suitable for demanding industrial and automotive environments.
Featuring excellent line voltage regulation and a high power supply rejection ratio (PSRR), the TPS767D318PWP minimizes output noise and improves circuit stability. Its low dropout voltage characteristic allows operation even with minimal difference between input and output voltages, which is beneficial in power-sensitive designs.
Low dropout (LDO) design suitable for power-sensitive applications. Quiescent current of 85μA ensures low power consumption. Input voltage range from 2.7V to 10V supports versatile powering options. 28-pin HTSSOP package with dimensions 9.7 mm x 4.4 mm x 1.15 mm.
Maximum operating temperature of 125°C for harsh environments. Surface mount package type for modern PCB assembly. High PSRR and low output noise improve circuit performance. Part of the TPS767 series offering reliable voltage regulation.
This voltage regulator is ideal for industrial, laboratory, automotive, and power management applications where stable and efficient voltage regulation is critical. As a product of Texas Instruments, it benefits from extensive support including technical documentation, design resources, and compliance with relevant industry standards.
Explore more high-quality power management ICs and Voltage Regulators on EnvMart to enhance your electronic designs with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator supports an input voltage range from 2.7 volts to 10 volts.
The TPS767D318PWP has a maximum power rating of 5.07 watts.
The compact HTSSOP 28-pin package measures 9.7 mm in length, 4.4 mm in width, and 1.15 mm in height.
It has a quiescent current consumption of only 85 microamps, making it energy efficient.
The maximum operating temperature for the TPS767D318PWP is 125°C, suitable for harsh environments.
This model provides a positive polarity output.
The LDO design allows for operation with minimal difference between input and output voltages, reducing output noise and improving circuit stability.
Yes, this component is designed as a surface mount type, allowing for modern PCB assembly.
It belongs to the TPS767 series by Texas Instruments.
This voltage regulator is ideal for industrial, laboratory, automotive, and power management applications where stable voltage regulation is critical.
The TPS767D318PWP features a high power supply rejection ratio (PSRR), which minimizes output noise and improves circuit performance.
This voltage regulator has a pin count of 28.
