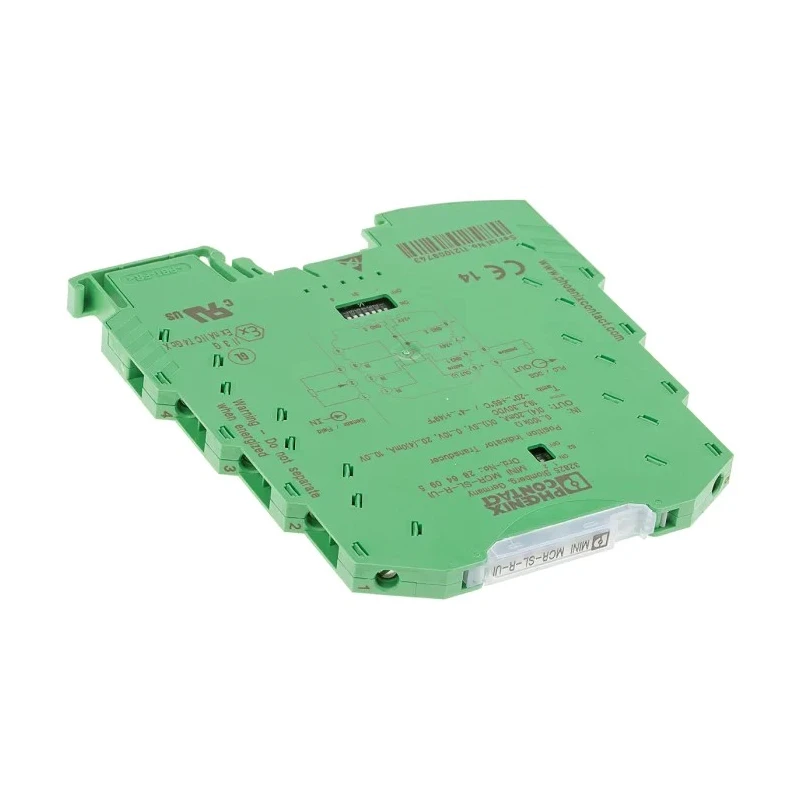

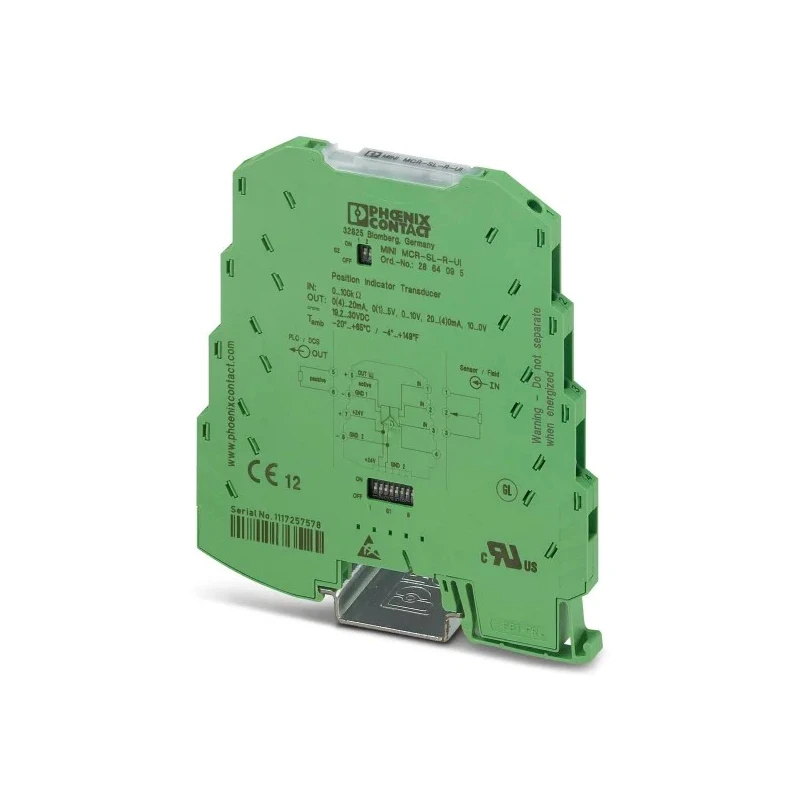

Phoenix Contact MINI MCR Series Signal Conditioner Resistance Input Current/Voltage Output 24V DC Supply ATEX 2864095

Phoenix Contact 2864095 MINI MCR Series Signal Conditioner offers reliable resistance input signal conversion to current or voltage outputs with a 24V DC power supply, certified to ATEX standards for use in hazardous locations.

This signal conditioner is designed to convert potentiometer positions, measuring resistance from 100 Ω up to 100 kΩ, into standardized analogue output signals ranging from 0 to 10 V or 0 to 20 mA, configurable via DIP switches. Its slim 6.2 mm width enables installation in compact control cabinets, mounting easily on DIN rails without the need for special tools.

The device features a robust polybutylene terephthalate (PBT) housing ensuring durability and resistance to impact, suitable for challenging industrial settings. Operating within a temperature range of -20°C to +65°C, it maintains performance across diverse environments. Its energy efficiency is notable, consuming only 500 mW, making it environmentally and cost-friendly.

Safety and signal quality are enhanced with 3-way galvanic isolation between input, output, and power supply. Diagnostic LEDs provide immediate error indication, facilitating maintenance and troubleshooting. This product complies with multiple safety and electromagnetic compatibility standards, ensuring trusted performance under stringent regulatory requirements.

Converts resistance input between 100 Ω to 100 kΩ to analogue signals. Compact 6.2 mm width suitable for space-limited installations. Wide operating temperature range from -20°C to +65°C. Durable polybutylene terephthalate housing for industrial use.

Energy efficient with low power consumption of 500 mW. Configurable measuring ranges via DIP switches. 3-way galvanic isolation for enhanced signal integrity. Diagnostic LED indicators for easy fault detection. Certified to EN 61010, EN 60529, EN 60079-15, and EMC Directive 2004/108/EC.

Suitable for industrial automation, process control, and hazardous area applications.

Compatible with a variety of industrial processes, this Signal Conditioner from Phoenix Contact is ideal for converting and isolating signals in automation systems requiring precise measurement and control of potentiometer positions or resistance signals. The ATEX certification allows safe use in potentially explosive atmospheres, making it suitable for chemical plants, oil and gas processing, and other hazardous environments.
