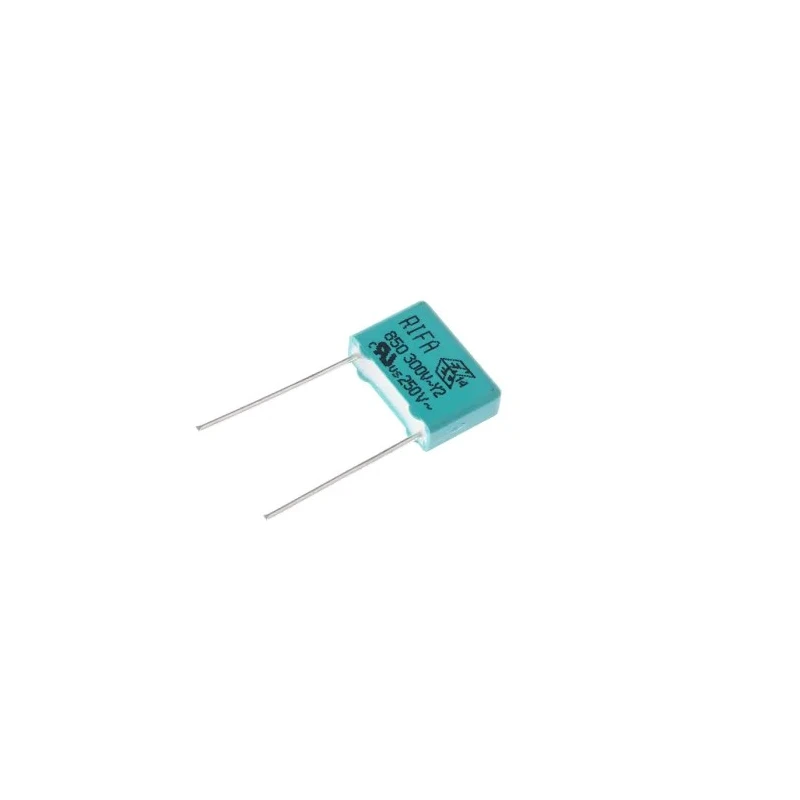

KEMET PHE850 Film Capacitor Y2, ±20 %, 2.2 nF 1.25 kV DC 300 V AC Through Hole PHE850

KEMET PHE850 Film Capacitor Y2, model PHE850, is a high-quality passive electronic component designed for EMI suppression in line-to-earth (Y2) safety applications. It features a 2.2 nF capacitance with a ±20 % tolerance, enabling reliable filtering of high frequency noise in AC lines while tolerating high voltage stresses.

The capacitor utilizes metallised polypropylene film construction with a winding design, enhancing electrical stability and low dissipation (0.3 %). It is encapsulated in a self-extinguishing polymer material compliant with UL 94V-0 standards, ensuring enhanced safety in industrial and electronic circuitry.

This Film Capacitor is rated for a maximum DC voltage of 1.25 kV and AC voltage of 300 V, capable of operating within a temperature range of -55°C to 110°C. Its physical dimensions are 13 mm length, 9 mm height, and 4 mm width, featuring radial terminal leads with a pitch of 10 mm and 0.6 mm diameter, facilitating through hole mounting on PCBs.

Due to its small size, reliable performance, and safety approvals including RoHS compliance, the PHE850 capacitor is suitable for use in industrial controls, power supplies, HVAC systems, and other commercial manufacturing equipment where EMI suppression and safety line filtering are required.

Metallised polypropylene film construction for electrical stability. Self-extinguishing UL 94V-0 encapsulation material. Capacitance of 2.2 nF with ±20 % tolerance for circuit reliability. Rated 1.25 kV DC and 300 V AC voltage with Y2 suppression class.

Operating temperature range of -55°C to 110°C for diverse environments. Radial terminal type with 10 mm lead pitch for easy PCB mounting. RoHS compliant and made in Indonesia for quality assurance. Applications include EMI suppression in electronic and power equipment.

It is imperative that this capacitor is used as designed across mains supply lines and not in positions where failure would expose users to electric shock. Industrial and laboratory engineers can benefit from integrating this component for enhanced electromagnetic compatibility and safety compliance in their designs.
