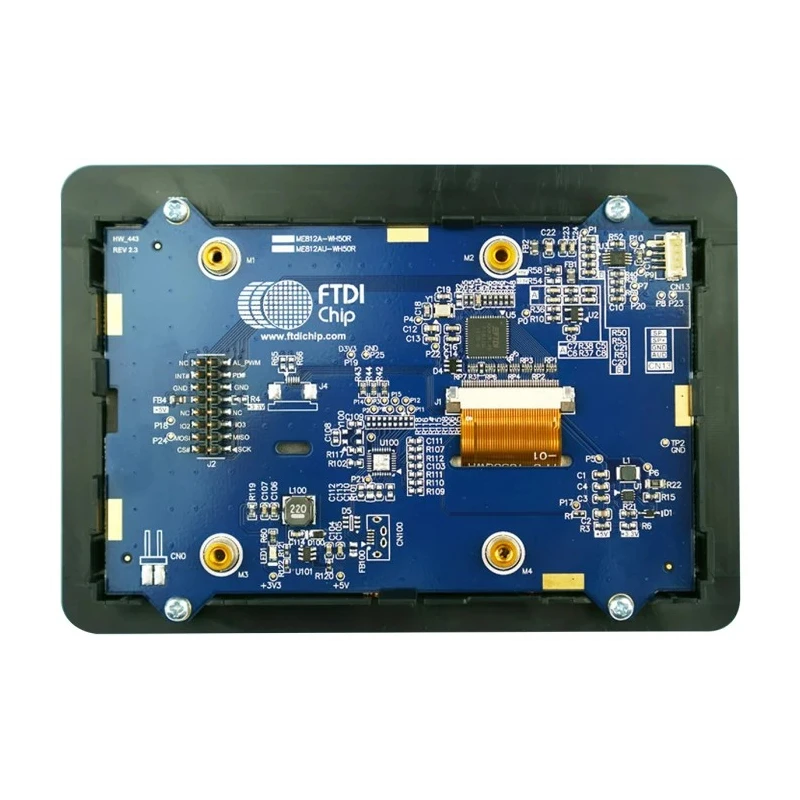

Bridgetek FT812 Embedded Video Engine 5 in Resistive Touch Screen Development Module With Quad SPI ME812A-WH50R
Specifications
| Country of Origin | India |
|---|---|
| Display | touchscreen |
| Brand | Bridgetek |
| Dimensions | 142 x 98.8mm (including bezel) |
| Operating Temperature Range | -20 to +70°C |
| Model | ME812A-WH50R |
| Display Technology | Resistive Touch Screen |
| Interfaces | landscape display mode |
| Interface Type | SPI/QSPI |
| For Use With | MM900EV series |
| Standards/Approvals | RoHS |
| Kit Classification | Development Module |
| Featured Device | Quad SPI host connector |
| Kit Name | FT812 Embedded Video Engine (EVE) |
| Host communication | 4-wire serial SPI |
| Diagonal Display Size | 5in |
Key Features
- Equipped with a 5 inch 800 x 480 pixel TFT LCD color display with resistive touchscreen and pressure sensing.
- Supports both portrait and landscape display orientations for versatile use.
- Includes on-board LCD backlight LED driver for enhanced display illumination.
- Supports mono audio output from FT812 or an external source and features an on-board audio amplifier for driving a 1W external speaker.
- Utilizes a 4-wire serial SPI host communication interface for reliable connectivity.
- Operates on a power supply range of +4.75V to +5.25V DC.
- Designed to function across industrial operating temperatures of -20 to +70°C.
- Compact form factor with bezel and four assembly mounting holes; dimensions 142 x 98.8 mm including bezel.
Product Description
Bridgetek ME812A-WH50R FT812 Embedded Video Engine (EVE) 5 inch Resistive Touch Screen Development Module is a high-performance display controller board built around the FT812 EVE graphics controller integrated into a 5.0 inch WVGA LCD touchscreen display unit. The 800 x 480 pixel resolution TFT LCD provides vibrant color display with pressure sensitive resistive touchscreen functionality suitable for embedded application development and industrial interfaces.
The module supports versatile portrait and landscape display modes, enabling flexible mounting and user interface layouts. The integrated LCD backlight LED driver ensures optimal visibility under various lighting conditions.
Audio capabilities include mono audio from the FT812 controller or an external audio source, with an onboard audio amplifier capable of driving a 1W external speaker, making it suitable for user-interactive embedded systems with audio feedback.
The host communication is facilitated via a 4-wire serial SPI interface supporting Quad SPI host protocol, ensuring high-speed and efficient data exchange. The module operates on a stable DC power supply ranging from 4.75 to 5.25 volts, suitable for typical embedded system power rails.
Robustness is ensured with an operating temperature range from -20 to +70°C, making it reliable for industrial and commercial applications. The included bezel with four mounting holes simplifies secure installation within development kits or custom enclosures. Dimensions inclusive of bezel measure 142 x 98.8 mm.
Equipped with 5 inch 800 x 480 pixel TFT LCD with resistive touchscreen. Supports portrait and landscape display modes. On-board LCD backlight LED driver included. Mono audio support and on-board 1W audio amplifier. 4-wire serial SPI host communication; Quad SPI interface.
Power supply range: +4.75V to +5.25V DC. Operating temperature range: -20 to +70°C. Bezel with four mounting holes for easy integration. Compact dimensions: 142 x 98.8 mm including bezel.
This development module is ideal for embedded system developers, industrial automation interfaces, and display technology prototyping requiring a dependable display controller with audio and touch capabilities. It supports integration with MM900EV series microcontroller modules for extended functionality.
Explore the wide range of Display Development Tools and embedded video engine modules available in our electronics components category to find complementary products and accessories for your embedded projects.
