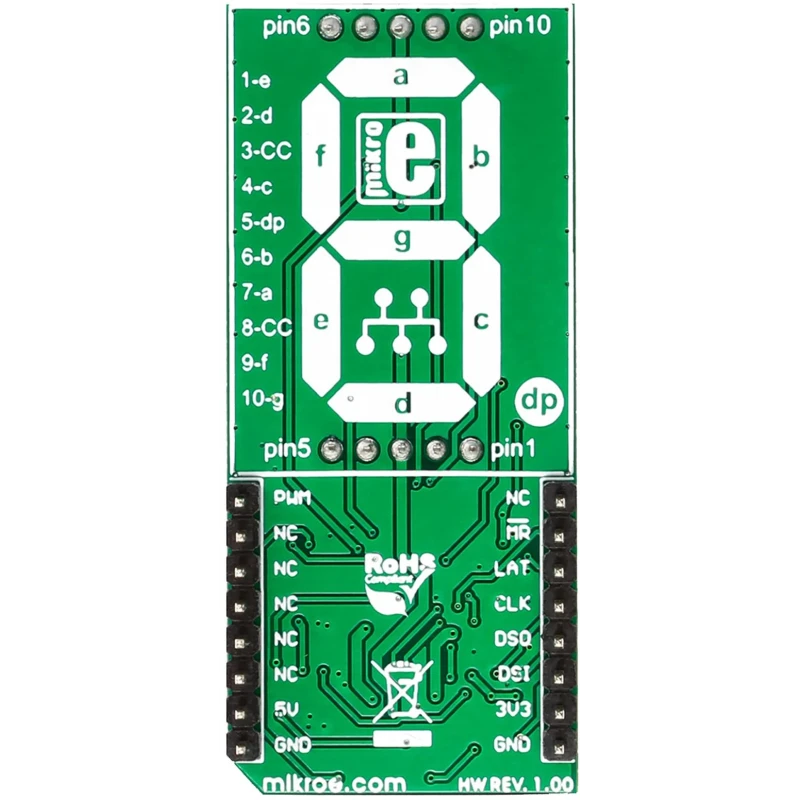

MikroElektronika Big 7-Seg R Click 7 Segment Display MikroBus Click Board MIKROE-2269

Free Delivery in India | Lowest Global Shipping Charges

MikroElektronika Big 7-Seg R Click 7 Segment Display MikroBus Click Board MIKROE-2269

Name: MikroElektronika Big 7-Seg R Click 7 Segment Display MikroBus Click Board MIKROE-2269
Brand: MikroElektronika
SKU: 204657
Price: 36.45 USD
Availability: InStock



Category Display Development Tools Brand MikroElektronika Condition New

Specifications

Country of Origin	India
Brand	MikroElektronika
Model	MIKROE-2269
Display Technology	7 Segment Display
Kit Classification	MikroBus Click Board
Featured Device	SC10-21SRWA
Kit Name	Big 7-Seg R Click

Key Features

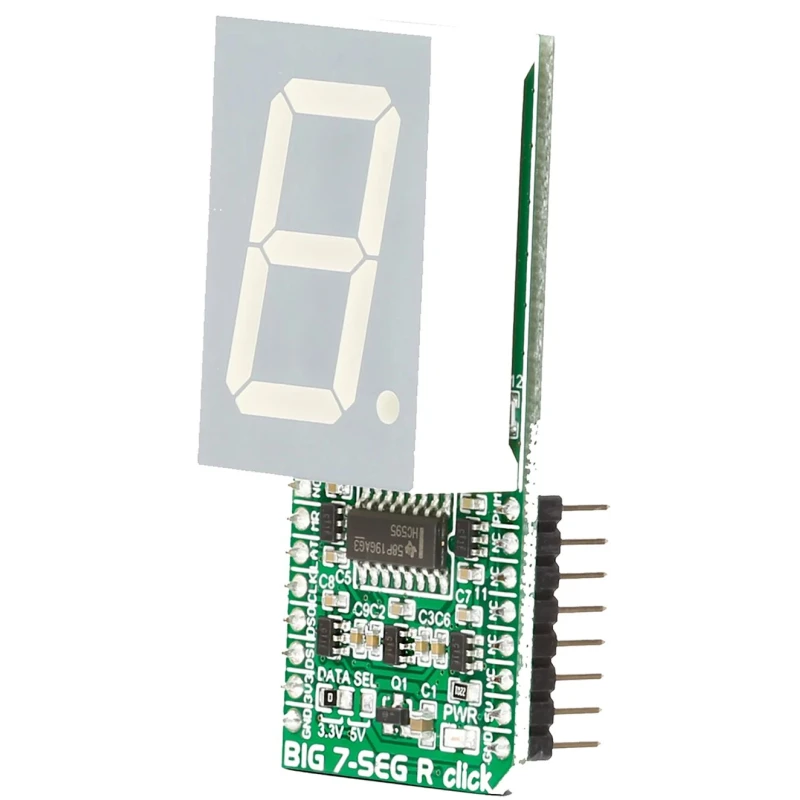

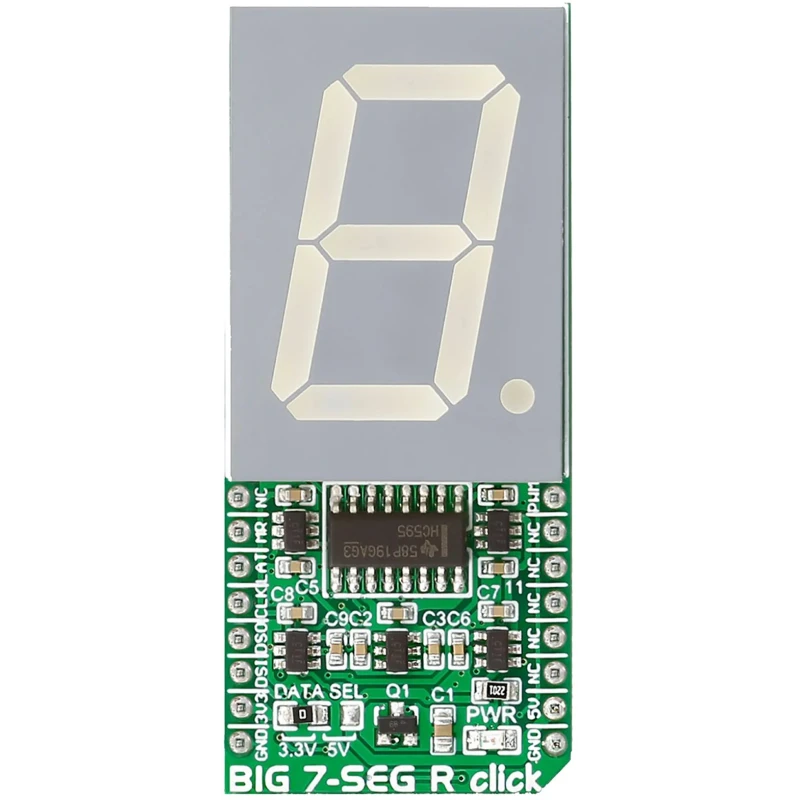

The board features a SC10-21SRWA 25mm (1 inch) red seven-segment LED display for excellent visibility.
Includes a 74HC595 shift register enabling SPI communication with microcontrollers.
Operates at 3.3 or 5V power supply, compatible with typical mikroBUS™ boards.
Display brightness can be adjusted via PWM pin for precise control.
Low current consumption ensures efficient operation in embedded applications.

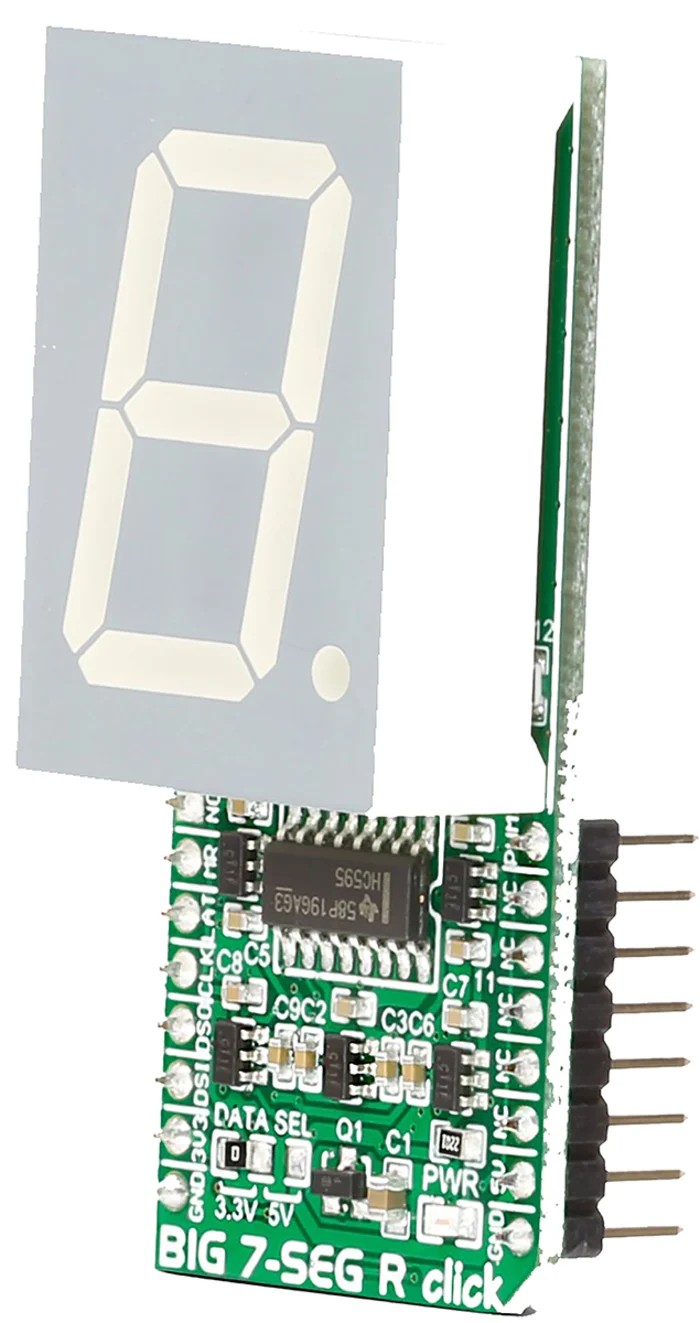

Comes with header strips pre-soldered for easy integration.
Ideal for education, prototyping, and development involving numeric display output.

Product Description

The MikroElektronika MIKROE-2269 Big 7-Seg R Click is a high-quality 7 segment display mikroBUS™ click board designed to enhance microcontroller projects by providing a 25mm (1 inch) red seven-segment LED display. Powered from a 3.3 or 5V supply, this board uses the SC10-21SRWA LED module integrated with a 74HC595 shift register chip, facilitating straightforward SPI interface communication with target microcontrollers.

The large and easily readable display makes it suitable for various embedded and educational applications requiring numeric output. Low current operation helps extend battery life or reduce power consumption in portable devices. Additionally, display brightness can be finely controlled via the onboard PWM pin, enabling flexible adjustment according to ambient lighting conditions.

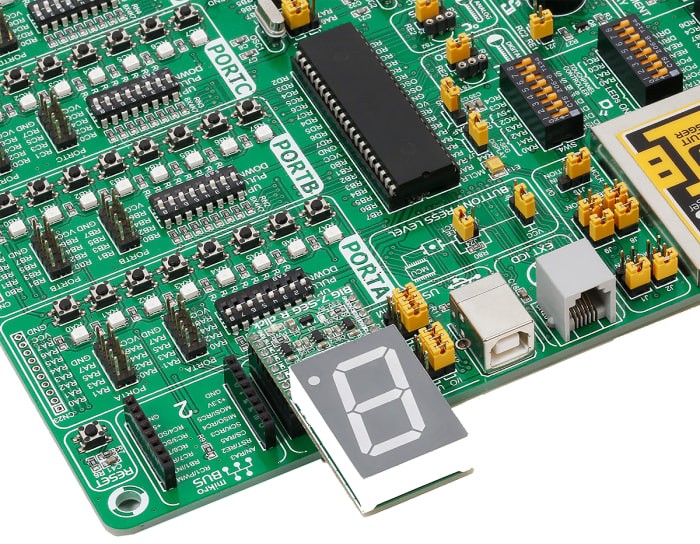

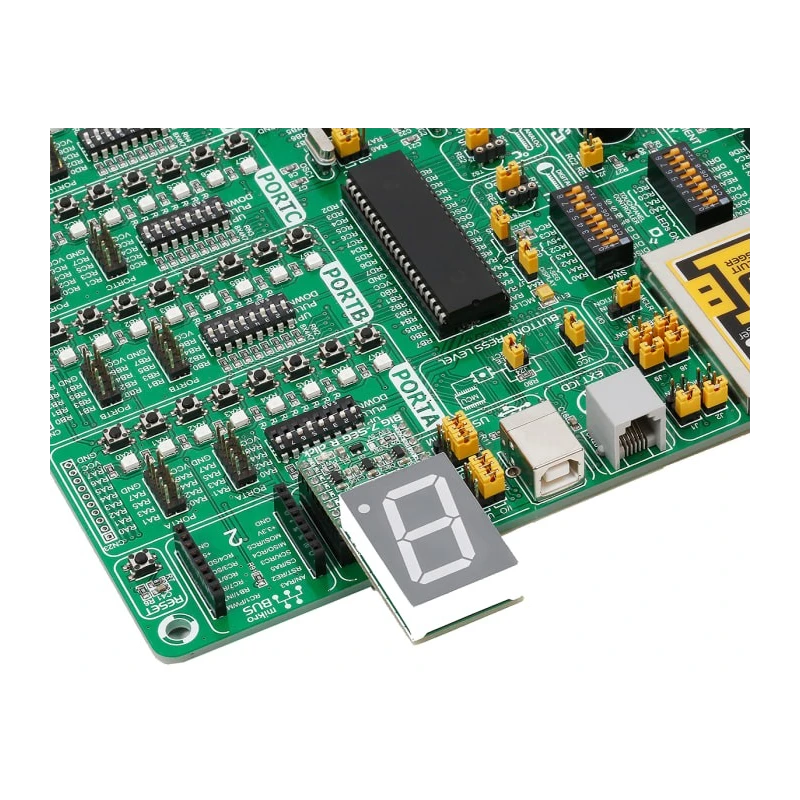

The board is delivered with header strips pre-soldered, allowing quick addition to mikroBUS™ development platforms without additional assembly. This Click board is perfect for use in educational STEM projects, prototyping, industrial control systems, and other embedded applications needing a numeric seven-segment display interface.

The 25mm red seven-segment display provides clear visual numeric feedback. Integrated 74HC595 shift register enables SPI protocol communication. Brightness control via PWM pin enhances usability in diverse lighting. Operates at standard 3.3 or 5V mikroBUS™ power supply voltages.

Low power consumption suits battery-powered and embedded setups. Header strips pre-soldered for easy connection to mikroBUS™ sockets. Ideal for embedded systems, education, prototyping, and industrial use cases. Explore the complete range of mikroBUS™ Click boards and development tools on EnvMart designed to accelerate embedded system design and innovation.
