4D Systems 5 in TFT Display Module with Integrated Capacitive Touch Panel SK-4Discovery-50

4D Systems SK-4Discovery-50 is a 5 inch TFT display module featuring an integrated capacitive touch panel, optimized for intelligent display applications such as home and building automation. The module supports high-resolution FWVGA graphics at 480 x 854 pixels and reproduces 65K true-to-life RGB colors for clear and vivid imaging.

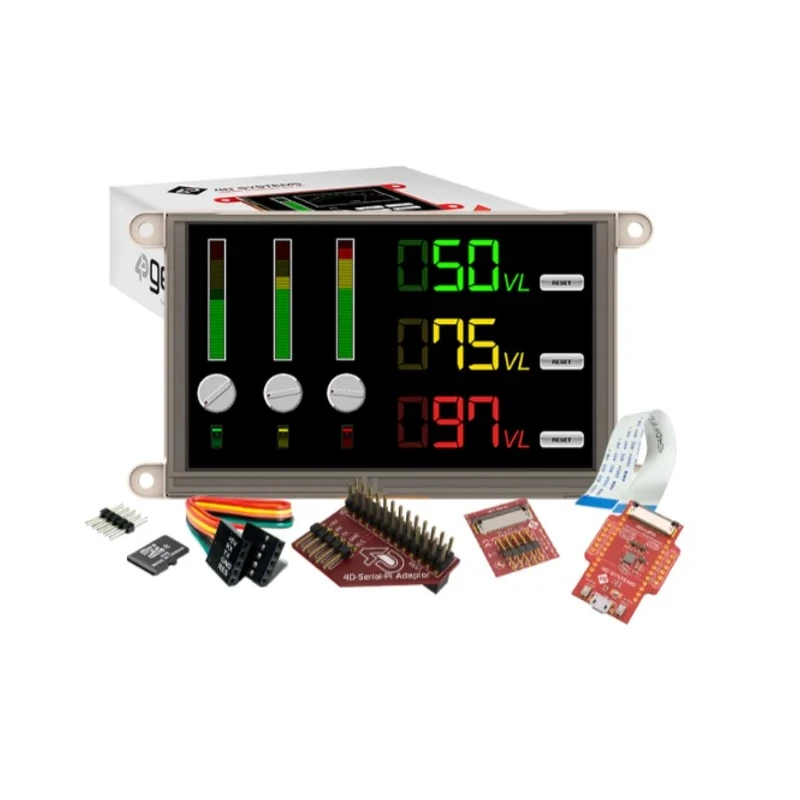

This starter kit includes the 4Discovery-50 display, a 4GB industrial-grade microSD card for multimedia storage and data logging, and the 4Discovery-RS485 programmer for seamless communication and programming. The unit is designed to be programmed via RS485 using a specialized programmer tailored for the 4Discovery series, supporting robust industrial automation needs.

The SK-4Discovery-50 comes equipped with 6 banks of 32,750 bytes of Flash memory dedicated to user application code and data, alongside 32KB of SRAM exclusively for user processes, enabling complex programs and data handling directly on the module. It includes an onboard micro-SD memory connector for extended data storage capabilities.

With a supply voltage range between 5V and 30V DC, the module offers flexibility in integration with various systems. The physical dimensions of 76.2 mm width, 139.4 mm height, and 24.8 mm depth provide a compact form factor suitable for wall mounting and embedded applications, while a viewing area of 62.56 x 110.53 mm ensures sufficient display space.

The module is controlled by the DIABLO16 architecture, delivering industrial-grade performance and reliability. It supports related peripherals such as the 4Discovery-RS485 Programmer and 4Discovery-35 display module, facilitating system expansion and varied industrial applications.

Features a 5 inch TFT screen with 480 x 854 FWVGA resolution. Displays 65K true-to-life RGB colors for superior image quality. Programmed over RS485 interface using a dedicated programmer. Includes 4GB industrial microSD card for multimedia storage and data logging.

Suited for home and building automation display uses. Equipped with 6 banks of 32,750 bytes Flash memory and 32KB SRAM for user applications. Operating supply voltage ranges from 5V to 30V DC. Compact module dimensions: 76.2 x 139.4 x 24.8 mm and viewing area 62.56 x 110.53 mm.

Constructed for industrial use with DIABLO16 controller and capacitive touch panel integration. Designed and manufactured in Australia.

This product category is ideal for industrial, laboratory, and embedded system developers requiring robust display development tools and modules. The SK-4Discovery-50 is suited for applications in automation, instrumentation, and interactive display interfaces.
