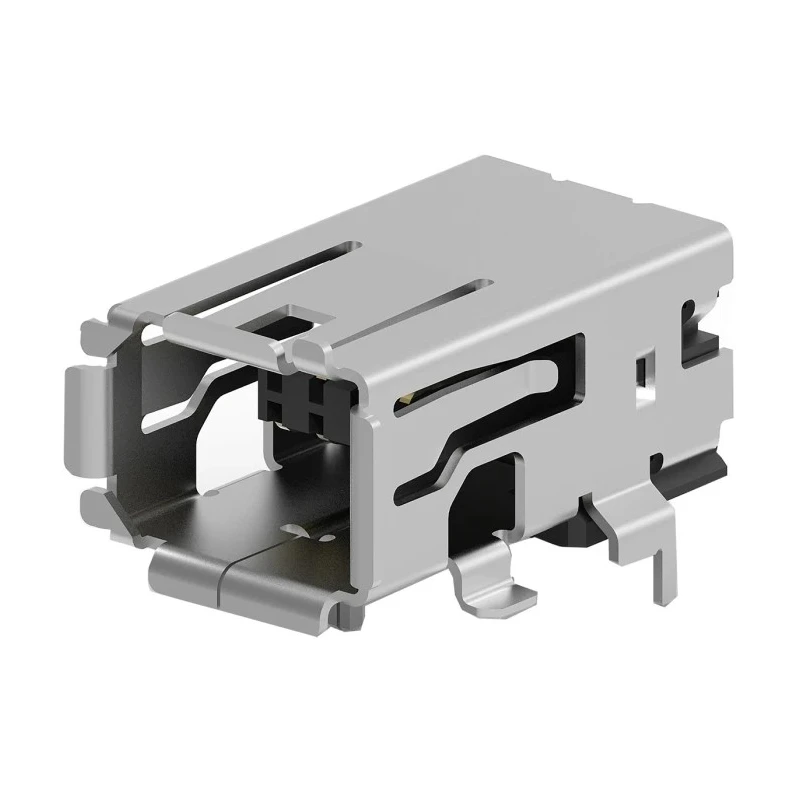

TE Connectivity Type I Surface Right Angle Mini I/O Connector Female 8 Way Shielded 2294415-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Right Angle |
| Height | 7.36mm |
| Depth | 14mm |
| IP Rating | IP20, IP30 |
| Connector Type | Jack |
| Number Of Ways | 8 |
| Width | 9.81mm |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Gold |
| Series | Type I |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Shield Type | Shielded |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The connector features a Type I series with 8 contact ways for versatile interfacing.
- It has a surface mount type with female connector gender and right angle orientation for PCB compatibility.
- The shielded design ensures EMI protection and enhanced signal integrity.
- Constructed with thermoplastic housing and gold contact material for durability and conductivity.
- Measures 7.36mm height, 9.81mm width, and 14mm depth, suitable for space-constrained installations.
- Termination is via solder to provide secure mounting and electrical connection.
- IP20 and IP30 rated for moderate protection in industrial environments.
- Ideal for industrial communications, robotics, and motion drive applications requiring vibration resistance.
Product Description
TE Connectivity 2294415-1 Type I Surface Right Angle Mini I/O Connector Female, 8 Way, Shielded is designed for advanced industrial and electronic PCB interfacing. This compact connector provides a 75% size reduction compared to conventional RJ45 connectors, saving valuable board space and ensuring efficient layout.
Its unique two-point contact system offers reliable connections that resist vibrations and accidental unplugging, essential for high-reliability conditions in industrial automation and robotics.
The connector features a shielded jack style with a female connector gender and right angle orientation, mounted on the surface of printed circuit boards. It uses a thermoplastic housing with gold contacts to ensure both mechanical robustness and excellent electrical conductivity.
The connector dimensions are 7.36mm in height, 9.81mm in width, and 14mm in depth, making it suitable for compact electronic designs. With an IP rating of IP20 and IP30, it offers protection against physical ingress and electrical interference.
Termination is via solder, providing durability for embedded systems utilized in programmable logic controllers (PLCs), motion control equipment, and industrial communications. The connector supports 8 ways or pins for multi-signal interfacing.
Designed to improve production efficiency by offering secure insertion and retention. Suitable for use in industrial environments demanding vibration resistance and EMI shielding. Offers compatibility with industrial automation, robotics, and communication equipment.
Compact size allows saving circuit board real estate.
This connector is ideal for electronics professionals seeking a high-quality, reliable connection solution for complex PCB design within industrial, manufacturing, and laboratory environments.
Explore more Connectors by TE Connectivity and related products at EnvMart for comprehensive electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector measures 7.36mm in height, 9.81mm in width, and 14mm in depth.
It uses solder termination for secure mounting and electrical connection.
The connector has an IP rating of IP20 and IP30, providing moderate protection against physical ingress and electrical interference.
The connector features a thermoplastic housing and gold contact material, ensuring mechanical robustness and good electrical conductivity.
This model has 8 contact ways for versatile interfacing.
It has a right angle orientation, making it suitable for PCB compatibility in space-constrained installations.
It is ideal for industrial communications, robotics, and motion drive applications that require vibration resistance.
Yes, this connector features a shielded design to ensure EMI protection and enhanced signal integrity.
The connector type is a jack, specifically a Type I series connector.
The connector is manufactured in India.
It offers secure insertion and retention, which helps to resist vibrations and accidental unplugging, enhancing reliability in high-reliability conditions.
The connector is black in color.
