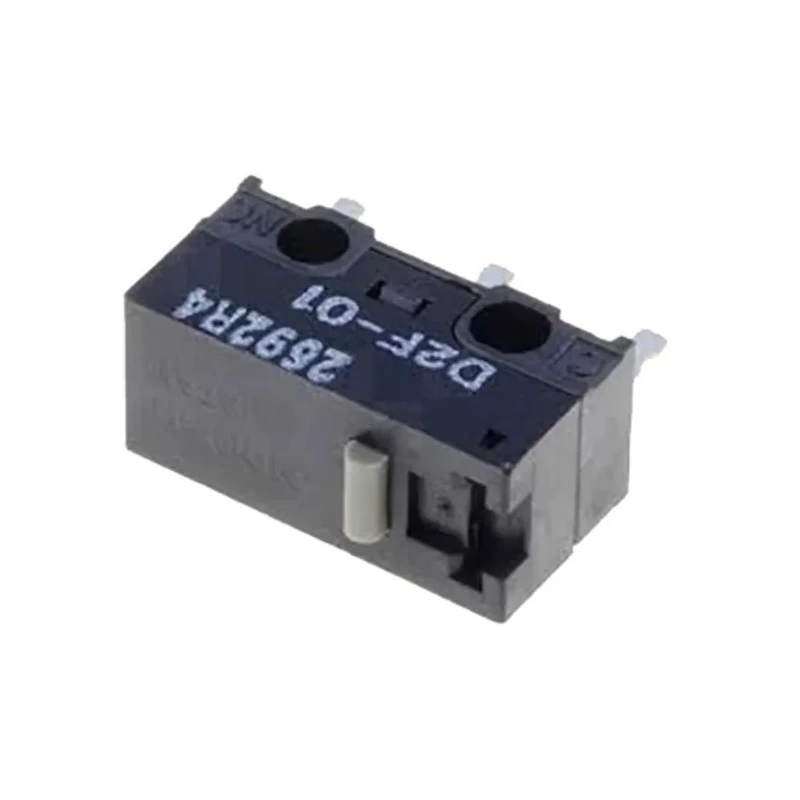

Omron Ultra Subminiature Pin Plunger Micro Switch, PCB Terminal, 100mA, 30V dc, SPDT, IP40 D2F-01
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F-01 |
| IP Rating | IP40 |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.47N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- The micro switch features a pin plunger actuator type providing precise operation.
- It has an IP40 ingress protection rating suitable for indoor environments.
- Operating temperature ranges from -25°C to 65°C ensuring broad application use.
- Operating force is 1.47N for consistent mechanical action.
- Mechanical life expectancy reaches up to 1,000,000 operations for long-term reliability.
- The contact material is gold plated to ensure low resistance and durability.
- Ideal for household appliances, office, audio, and communication equipment applications.
- Compact ultra subminiature form factor suitable for PCB mounting.
Product Description
Omron D2F-01 ultra subminiature pin plunger micro switch with a PCB terminal offers reliable switching performance with a 100mA rating at 30V DC and SPDT contact configuration. This switch uses a high-precision dual spring reverse action mechanism ensuring a mechanical life of 1,000,000 operations. Its gold-plated contacts provide durability and low resistance, ideal for sensitive electrical circuits.
Designed to operate within a temperature range of -25°C to 65°C, it suits a wide variety of industrial, household appliance, office equipment, audio, and communication applications. The switch incorporates an IP40 rating for protection against solid objects greater than 1mm, making it suitable for indoor use.
The pin plunger actuator ensures precise and consistent actuation with an operating force of 1.47N. Its ultra subminiature size makes it compact for PCB mounting in densely packed electronic assemblies.
Manufactured in Japan, this micro switch complies with RoHS standards, supporting environmental compliance. Its reliable construction and performance make it suitable for usage in industrial automation, laboratory instruments, and consumer electronic devices.
The micro switch features a pin plunger actuator type providing precise operation. It has an IP40 ingress protection rating suitable for indoor environments. Operating temperature ranges from -25°C to 65°C ensuring broad application use.
Operating force is 1.47N for consistent mechanical action. Mechanical life expectancy reaches up to 1,000,000 operations for long-term reliability. The contact material is gold plated to ensure low resistance and durability.
Ideal for household appliances, office, audio, and communication equipment applications. Compact ultra subminiature form factor suitable for PCB mounting. Manufactured in Japan under strict RoHS compliance standards. Explore more Micro Switches and components at EnvMart for industrial and electronic automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 65°C.
This micro switch features an SPDT (Single Pole Double Throw) contact configuration.
The operating force required for actuation is 1.47N.
The mechanical life expectancy of this micro switch reaches up to 1,000,000 operations.
It has an IP40 ingress protection rating, suitable for indoor environments.
The contact material is gold plated, which ensures low resistance and durability.
The minimum operating temperature for this model is -25°C.
This micro switch utilizes a pin plunger actuator type for precise operation.
The contact DC voltage rating is 30V.
It features a PCB terminal type for easy mounting on printed circuit boards.
Yes, it is compliant with RoHS standards for environmental compliance.
This micro switch is ideal for household appliances, office equipment, audio, and communication devices.
