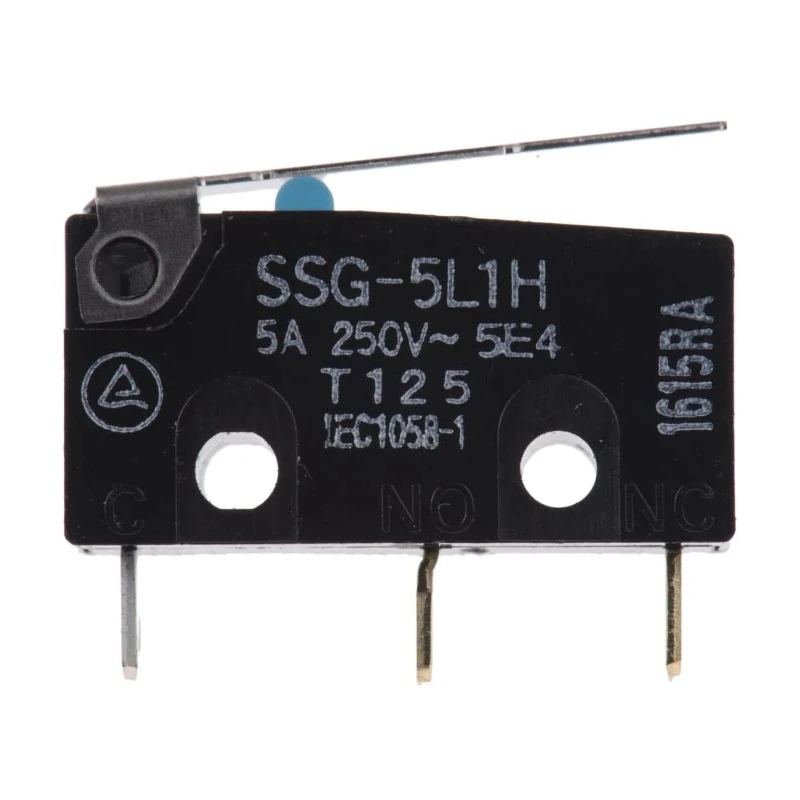

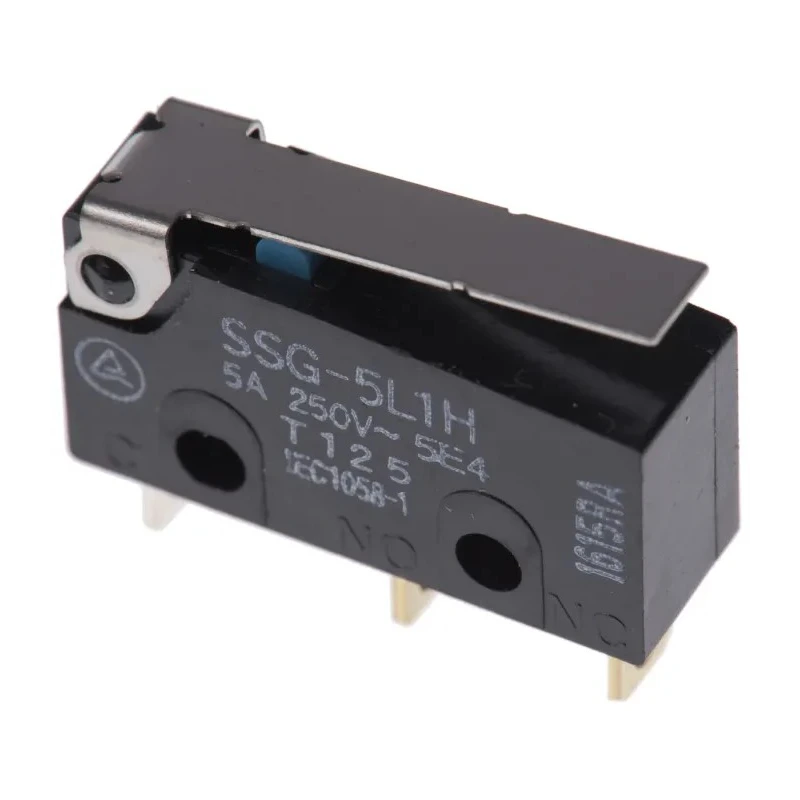

Omron Aratas Hinge Lever Subminiature Micro Switch, Solder Terminal, 5A Current, 30V DC, SPDT Contact, IP40 SSG-5L1H

Omron SSG-5L1H subminiature micro switch features a durable hinge lever actuator delivering precise switching performance for various industrial and electrical applications. Designed with a compact V4 style housing, this micro switch is ideal where space is limited but reliable operation is critical.

The solder terminal type confirms secure electrical connection, compatible with PCB mounting. This switch handles a contact current of 5 amps and a DC voltage rating of 30 volts, suitable for low power control circuits. Its single-pole double-throw (SPDT) contact configuration enables versatile switching capabilities.

It offers an IP40 ingress protection rating, safeguarding against solid objects larger than 1 mm, making it reliable for protected environments. Operating force of 0.6 Newtons allows smooth actuation while ensuring minimal user fatigue. The device supports a broad temperature range from -25 to 125 degrees Celsius, fitting diverse industrial, electrical, and automation settings.

The mechanical life is rated up to 10 million operations, indicating excellent endurance under frequent switching requirements. Entirely RoHS compliant, the switch meets environmental and safety mandates for responsible manufacturing.

Its compact dimensions (height 9.9 mm, width 19.8 mm, depth 6.4 mm) further facilitate seamless integration into control panels, instrumentation, and electronic devices. Subminiature design with compact V4 style housing for space-saving installation.

Hinge lever actuator offers precise mechanical switching operation. Solder terminal type ensures secure and stable electrical connections. Contact configuration is SPDT for versatile switching applications. Protective IP40 rating safeguards against solid objects over 1 mm but not water ingress.

Wide operating temperature range from -25°C to 125°C for durability in harsh environments. Operating force is 0.6N ensuring minimal actuation effort. High mechanical life expectancy of 10 million operations for long service life.

RoHS compliant to meet environmental safety standards. Compact body dimensions: height 9.9 mm, width 19.8 mm, depth 6.4 mm for easy integration.

Ideal for applications in electronics, electrical control, automation systems, instrumentation, and machinery, this Omron micro switch ensures reliable tactile feedback, precise control, and extended operational lifespan.
