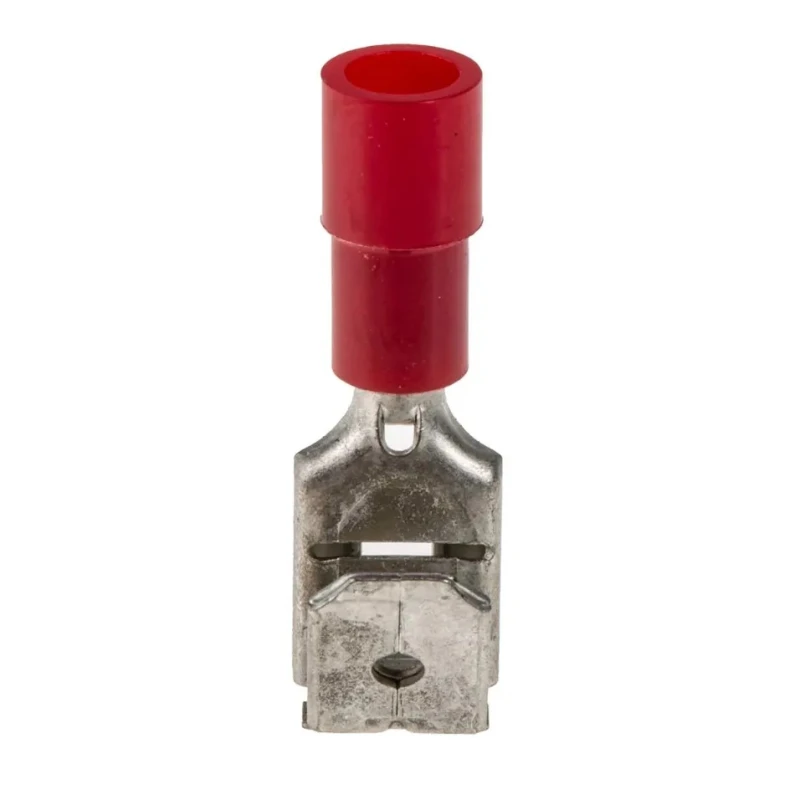

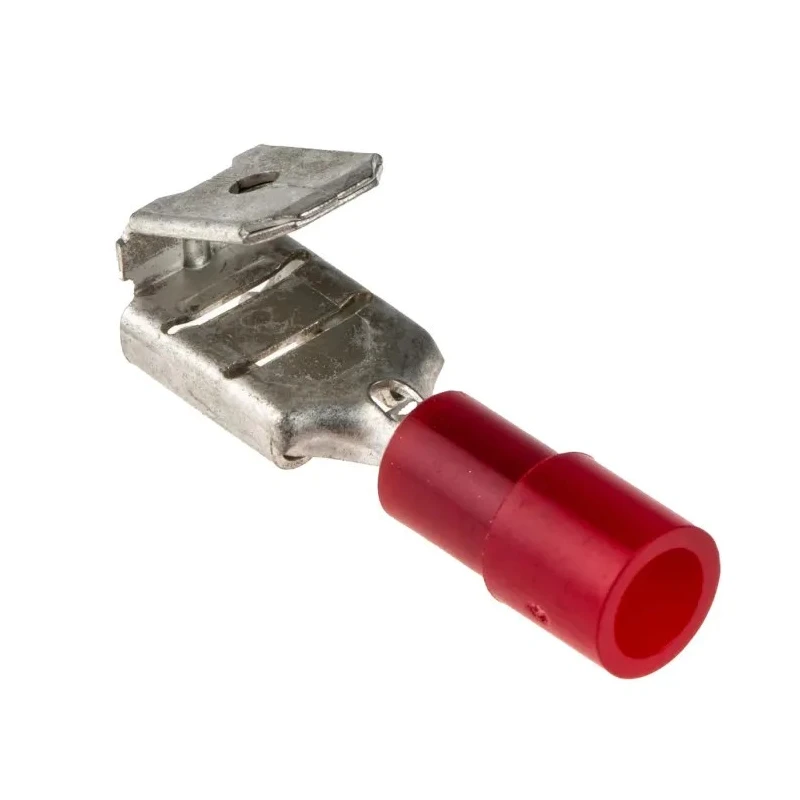

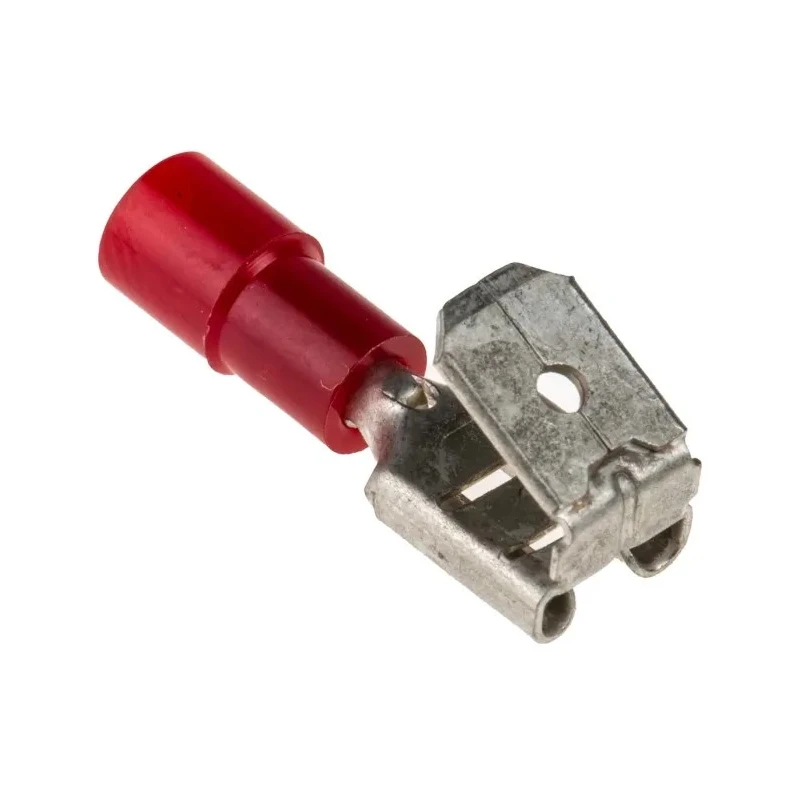

RS PRO Red Insulated Female Spade Connector Crimp Termination 6.35 x 0.8 mm Tab Size 22 AWG to 16 AWG 613-9918
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Angled |
| Model | 613-9918 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 23mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Polycarbonate |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 613-9918 |
| RS stock no | 270-7611 |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
| Red piggy-back terminal,0.25-1.5sq.mmBrand | NEUTRAL |
Key Features
- The spade connector features a 6.35 mm width and 0.8 mm thick tab size for secure fitting.
- It includes polycarbonate insulation providing durable electrical safety.
- Constructed with brass contacts finished with tin plating to resist corrosion.
- The overall length of the connector is 23 mm, suitable for automotive and domestic appliance wiring.
- The angled orientation supports easy installation in tight spaces.
- It accommodates wire sizes between 0.5 mm² and 1.5 mm² for versatile application.
- The crimp termination method ensures mechanically robust and solder-free joints.
Product Description
RS PRO 613-9918 red insulated female spade connector is engineered for reliable and safe electrical connections requiring crimp termination. It supports wire sizes from 22 AWG to 16 AWG, with a tab width of 6.35 mm and a thickness of 0.8 mm, ensuring compatibility with standard terminal components.
The insulation is made of durable polycarbonate, making it suited for use in various environments where electrical safety is critical. The connector features brass contacts plated with tin to resist corrosion and ensure consistent conductivity over time.
With an overall length of 23 mm and an angled orientation, this spade connector can be easily installed in automotive electronics, domestic appliances such as dishwashers, and other electrical devices requiring quick connect/disconnect capabilities. The crimping termination method allows safe mechanical joints without soldering, increasing efficiency and safety in assembly.
The spade connector has a red polycarbonate insulation for clear wire color identification. Wire size is compatible from 0.5 mm² to 1.5 mm², equivalent to 22 AWG to 16 AWG. Contacts are brass with a tin-plated finish, improving durability and corrosion resistance.
The overall length is 23 mm, providing a compact design for tight spaces. Designed with angled orientation for ergonomic wiring installation. Crimp termination offers secure and mechanically strong connections without soldering.
This RS PRO Spade Connector is widely trusted for industrial, automotive, HVAC, manufacturing, and domestic electronic wiring applications. It undergoes rigorous testing for quality and safety compliance. The product is made in Taiwan, Province Of China, adhering to industry safety standards.
Choose RS PRO connectors for dependable electrical terminations in professional and commercial settings. Explore EnvMart for more connectors and wire terminal solutions to meet your electrical assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 0.5 mm² to 1.5 mm², which is equivalent to 22 AWG to 16 AWG.
The overall length of the connector is 23 mm, with a tab width of 6.35 mm and a tab thickness of 0.8 mm.
The contacts are made of brass and are plated with tin to enhance corrosion resistance and conductivity.
It uses a crimp termination method, which ensures secure and mechanically robust connections without the need for soldering.
The connector features an angled orientation, which facilitates easier installation in tight spaces.
The insulation is made of durable polycarbonate, providing electrical safety in various environments.
This spade connector is made in Taiwan, Province Of China.
The connector is red, which aids in clear wire color identification during installation.
It is widely used in automotive electronics, domestic appliances, and other electrical devices requiring quick connect/disconnect capabilities.
The tab size of 6.35 x 0.8 mm ensures compatibility with standard terminal components, facilitating reliable connections.
The polycarbonate insulation and the corrosion-resistant tin plating on the brass contacts contribute to its electrical safety and reliability.
This connector is part of the RS PRO series, known for its reliable electrical components.
